SmartVision60 Installation and Deployment Guide
SmartVision60 Installation and Deployment Guide
Hardware Deployment
Hardware Deployment
Before Deployment
Before Deployment
1. List of products

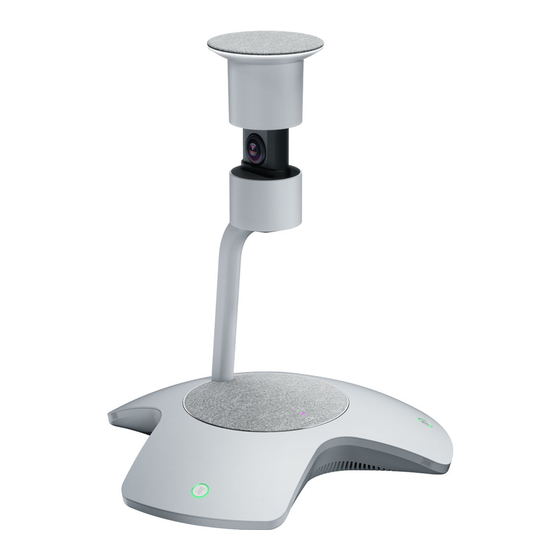

a) SmartVision 60
b) MCore Pro
c) MTouch Plus/MTouch E2
SmartVision60 Installation and Deployment Guide
1
Advertisement
Related Manuals for Yealink SmartVision60
Summary of Contents for Yealink SmartVision60
- Page 1 SmartVision60 Installation and Deployment Guide SmartVision60 Installation and Deployment Guide SmartVision60 Installation and Deployment Guide Hardware Deployment Hardware Deployment Before Deployment Before Deployment 1. List of products a) SmartVision 60 b) MCore Pro c) MTouch Plus/MTouch E2...
- Page 2 SmartVision60 Installation and Deployment Guide 2. List of software a) MTR 4.18 and above b) MTR Pro license c）IntelligentIgnore.zip d) Yealink RoomConnect 2.32.42.0 and above TIP If you find that your version of MTR is not compliant, follow the steps in the link below to update it:...
- Page 3 SmartVision60 Installation and Deployment Guide First: Conference room for 10 people. First: Conference room for 10 people. In a meeting room that can accommodate ten people, you can set up as shown in the diagram: ①Ten seats are arranged in two rows, facing each other in pairs.
- Page 4 SmartVision60 Installation and Deployment Guide Second Conference room for 9 people: Second Conference room for 9 people: ①Conference room for 9 people, with normal seating for participants. ②SmartVision 60 is deployed in the middle of the conference table.The arrow sticker points to the corner of the...
- Page 5 NOTE NOTE Depending on the deployment method Yealink recommends you to use different lengths of USB cables. a) When you deploy the MCore Pro in a table area, you can use the 3m cable that comes with the package.
- Page 6 SmartVision60 Installation and Deployment Guide 6. Go to Windows Settings on MCore Pro and extract IntelligentIgnore.zip. 7. Open the unzipped folder and double-click Install.bat to install the software. Set the Monitor to ignore the region Set the Monitor to ignore the region...
- Page 7 SmartVision60 Installation and Deployment Guide 1. Go to the Peripherals of MTR Settings, set the Default Video Camera as Yealink Active Speaker, and click Configure to set the monitor ignore region. NOTE NOTE If you can't find the Configure button in MTR's Peripherals, go to Windows Settings and follow the steps below: 1.
- Page 8 SmartVision60 Installation and Deployment Guide 2. There are two methods can set up an ignore region to block the TV, and the SmartVision60 will no longer detect the contents of the ignore region. a) Pull the 1 and 2 sliders to set the ignore region.
- Page 9 SmartVision60 Installation and Deployment Guide b) Turn on the Auto detect monitor Auto detect monitor, and click the Detect Monitor Detect Monitor button. i. The Microsoft Teams logo will appear on the TV. Make sure there is no obstruction between the SmartVision ...
-
Page 10: Software Deployment
SmartVision60 Installation and Deployment Guide 3. Go back to MTR. Software Deployment Software Deployment 1. Before you use it, you should go to Settings-Recognition of Teams Client on your PC to create your voice and face profile. - Page 11 SmartVision60 Installation and Deployment Guide 2. You need to book a meeting on Teams Client-Calendar before starting a meeting. 3. Enter all participants in this meeting in the Participant field for SmartVision 60's intelliframe and People Recognition features to be enabled correctly.
- Page 12 SmartVision60 Installation and Deployment Guide Why does the SmartVision 60 image sharpness of the person sitting in the middle of the conference table look blurred? CÔNG TY TNHH CUNG ỨNG NGỌC THIÊN Hotline: 02877798999 - 1900099978 Email: info@vnsup.com Website: ngocthiensup.com...
