Eastron SDM120-CTM User Manual

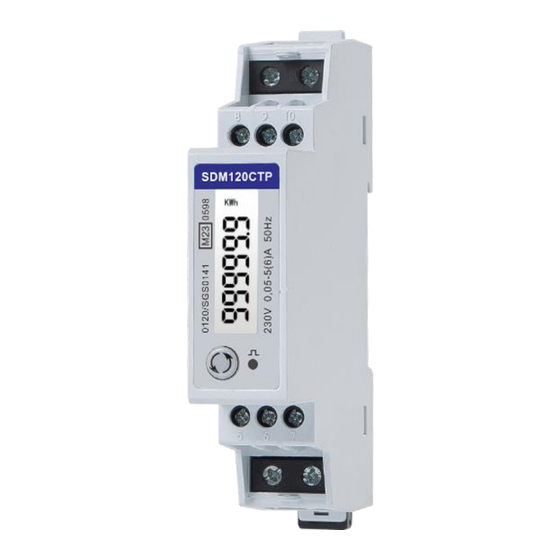

SDM120CTP
Single-Phase Multifunction DIN Rail Meter
Measures kWh, kVArh, kW, kVAr, kVA, PF, Hz, dmd, V, A, etc.
Bi-directional measurement IMP & EXP
Two pulse outputs
Din rail mounting 35mm
5A CT connection
Better than Class 1 accuracy
Zhejiang Eastron Electronic Co.,Ltd.
Add: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, 314000, China. Web: www.eastrongroup.com Email: sales@eastrongroup.com
Tel: 0086-573-83698881
User Manual V1.0
Fax: 0086-573-83698883
Advertisement
Related Manuals for Eastron SDM120CTP
Summary of Contents for Eastron SDM120CTP
- Page 1 Eastron SDM120-CTM User Manual SDM120CTP Single-Phase Multifunction DIN Rail Meter Measures kWh, kVArh, kW, kVAr, kVA, PF, Hz, dmd, V, A, etc. Bi-directional measurement IMP & EXP Two pulse outputs Din rail mounting 35mm 5A CT connection ...
-
Page 2: Specification
Eastron SDM120-CTM User Manual Application The energy-meters are used to measure single-phase applications like residential, utility and Industrial. The unit measures and displays various important electrical parameters. It equipped with a white back-lighted LCD screen for prefect reading. As well as a RS485 communication port for remote reading and monitoring. Bi-directional energy measurement makes it a good choice for solar PV energy metering. -
Page 3: Operation
Eastron SDM120-CTM User Manual Relative humidity 0 to 95%, non-condensing Altitude up to 2000m Warm up time Installation category CAT III Mechanical Environment Electromagnetic environment Degree of pollution Output Pulse Output The meter provides two pulse outputs. Both pulse outputs are passive type. - Page 4 Eastron SDM120-CTM User Manual Click the button, the LCD display will scroll the measurements. Keep pressing the button for 3 seconds, the meter will get into set-up mode. Total active energy（kWh） Display format：0000.009999.9910000.0 99999.90000009999990000.00 Import active energy（kWh） Display format：0000.009999.9910000.0 99999.90000009999990000.00 Export active energy（kWh）...
- Page 5 Eastron SDM120-CTM User Manual Primary current 5A-9999A Default: 5 CT2: 5A Software version in kind prevail Set-up Mode To get into set-up mode, the user need keep pressing the button for 3 seconds. It will enter into the “SET” mode.
- Page 6 Eastron SDM120-CTM User Manual Dimensions Installation Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883 Add: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, 314000, China. Web: www.eastrongroup.com Email: sales@eastrongroup.com...
