SUPPORT INFORMATION

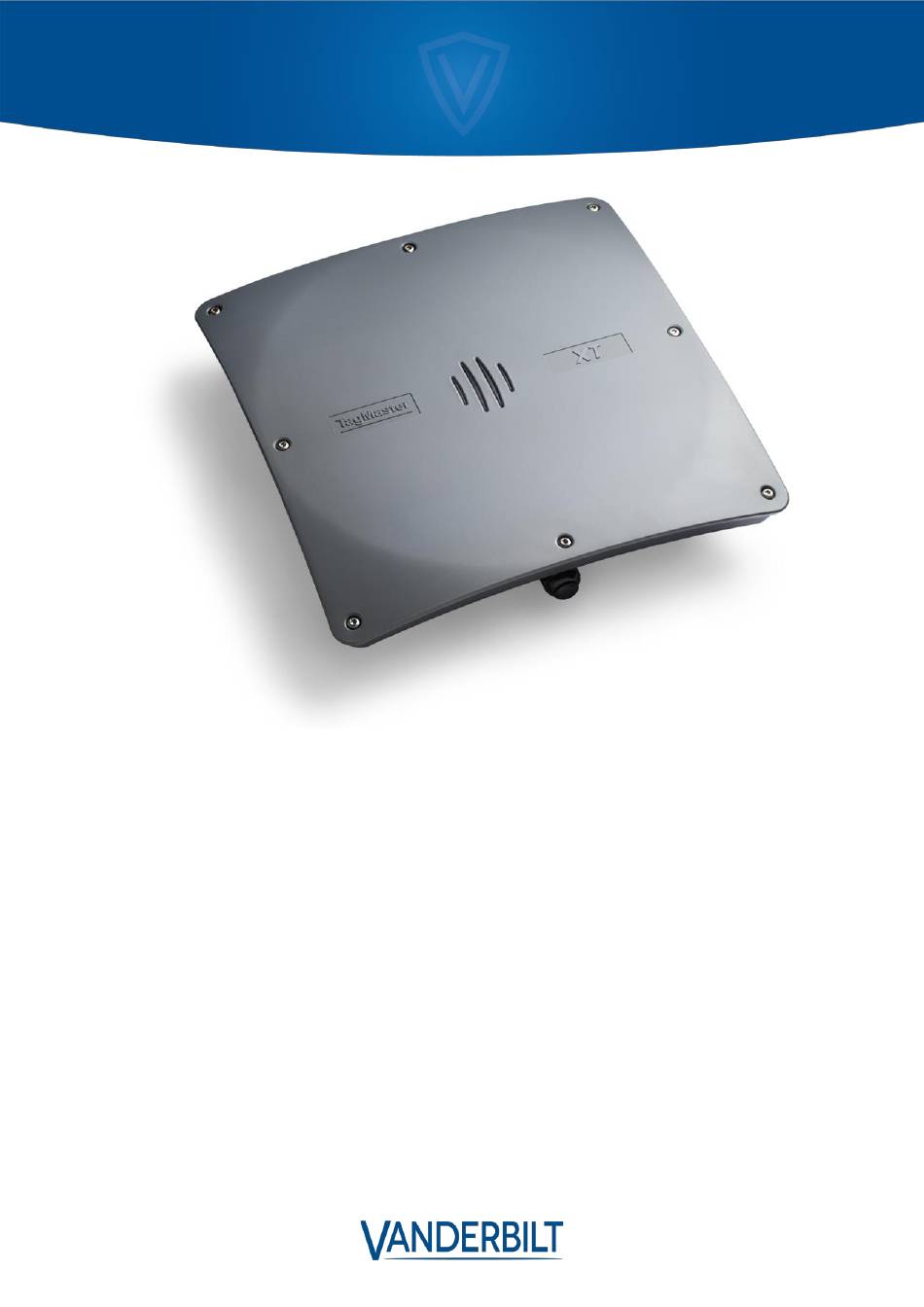

Quick Guide for XT-1/XT mini Readers
This guide will support you to install the XT-1/XT mini with Vanderbilt Access products
▪
OMNIS
E200
▪
OMNIS
E100
▪
OMNIS
E100
▪
Entro
DC22
▪
Entro
DC22
▪
ACT
365 ACU
▪
ACT
365 ACU
▪
ACT 1520E/1500E
▪
ACT 1520E/1500E
▪
SPC
A210
Access
Clock/data
Clock/data
Wiegand
Clock/data
Wiegand
Clock/data
Wiegand
Clock/data
Wiegand
Wiegand
2019-11-28
Advertisement
Related Manuals for Vanderbilt XT-1
Summary of Contents for Vanderbilt XT-1
- Page 1 SUPPORT INFORMATION Access 2019-11-28 Quick Guide for XT-1/XT mini Readers This guide will support you to install the XT-1/XT mini with Vanderbilt Access products ▪ OMNIS E200 Clock/data ▪ OMNIS E100 Clock/data ▪ OMNIS E100 Wiegand ▪ Entro DC22 Clock/data ▪...
- Page 2 SUPPORT INFORMATION E200 Clock & Data XT-1 E200 +12V + 12V/24V DO/CLK D1/DATA Option Green LED IN1+ +12V/24V Green LED IN1- OC 2 Red LED IN2+ +12V24V Red LED IN2- OC 1 XT-1 The settings should be as below E200 Jumper nr 1 should be on the lower one.
- Page 3 LED IN2- OUT 1 XT-1 Should have following settings. DIP settings on XT-1 E100 Set EOL off for reader interface. Set the Reader interface to clock and data throw web browser On E100, “Device settings/ I/O /Port 1-Interface: Clock data”...
- Page 4 LED IN2+ +12V/+24V LED IN2- OUT 1 E100 Supports following Wiegand protocols: DIP settings on XT-1 E100 Set EOL “off” for reader interface. Set the Reader interface to Wiegand throw web browser On E100, “Device settings/ I/O /Port 1-Interface: Wiegand” TCC-2019-038_XT-1-tagmaster-with-Vanderbilt_320_01_EN...
- Page 5 Green LED IN1+ +24V Green LED IN1- LED IN2+ +24V LED IN2- XT-1 Should have follwing settings. DIP settings on XT-1 DC22 -Note! check before powering up, that jumper is on "+V = VIN" jumper on "CL + DAT" TCC-2019-038_XT-1-tagmaster-with-Vanderbilt_320_01_EN...
- Page 6 Option Green LED IN1+ +24V Green LED IN1- LED IN2+ +24V LED IN2- DC22 Supports following Wiegand protocols: DIP settings on XT-1 DC22 - Note! check before powering up, that jumper is on "+V = VIN" jumper on "WIEG" TCC-2019-038_XT-1-tagmaster-with-Vanderbilt_320_01_EN...
- Page 7 D1/DATA DATA Option Green LED IN1+ +12V Green LED IN1- GREEN LED IN2+ +12V LED IN2- XT-1 Should have the following settings. DIP settings on XT-1 Does not require any hardware configuration. Important +12V connects to power input directly. TCC-2019-038_XT-1-tagmaster-with-Vanderbilt_320_01_EN...
- Page 8 DO/CLK Data D1/DATA Clock Option Green LED IN1+ +12V Green LED IN1- GREEN LED IN2+ +12V LED IN2- Supports following Wiegand protocols: DIP settings on XT-1 Does not require any hardware configuration Important +12V connects to power input directly TCC-2019-038_XT-1-tagmaster-with-Vanderbilt_320_01_EN...
- Page 9 D1/DATA DATA Option Green LED IN1+ +12V Green LED IN1- GREEN LED IN2+ +12V LED IN2- XT-1 Should have the following settings. DIP settings on XT-1 Does not require any hardware configuration. Important +12V connects to power input directly. TCC-2019-038_XT-1-tagmaster-with-Vanderbilt_320_01_EN...
- Page 10 DO/CLK Data D1/DATA Clock Option Green LED IN1+ +12V Green LED IN1- GREEN LED IN2+ +12V LED IN2- Supports following Wiegand protocols: DIP settings on XT-1 Does not require any hardware configuration Important +12V connects to power input directly TCC-2019-038_XT-1-tagmaster-with-Vanderbilt_320_01_EN...
- Page 11 SUPPORT INFORMATION SPC A210 (DC-2) Wiegand XT-1 A210 +12V DO/CLK D1/DATA Options Green LED IN1+ +12V Green LED IN1- LED IN2+ +12V LED IN2- The SPCA210 DC-2 controller supports the following Wiegand protocols When using W37N setting, the SPC produces the same number as printed on the tag...
- Page 12 SUPPORT INFORMATION If you have any questions, please contact our Technical Competence Centre. Contact details can be found on our website.
