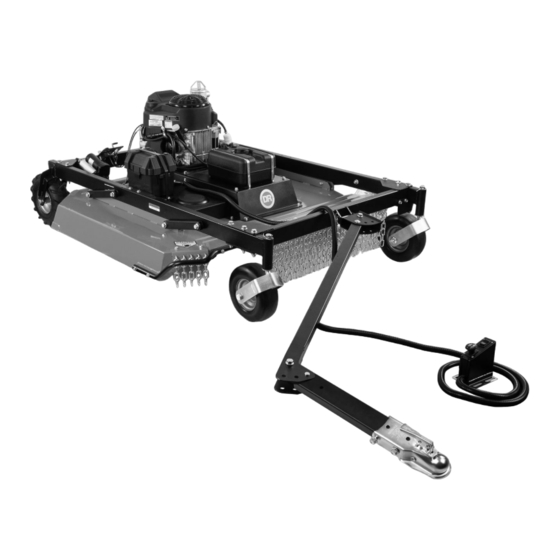

TOW-BEHIND FIELD and BRUSH MOWER

SAFETY & OPERATING INSTRUCTIONS

Model:

PRO MAX 60T

Serial No.

Order No.

Read and understand this manual and all instructions before operating the DR TOW-BEHIND FIELD and BRUSH MOWER.

DR Power Equipment

Toll-free phone:

1-800-DR-OWNER (376-9637)

Website: www.DRPower.com

Table of Contents

Need help?

Do you have a question about the PRO MAX 60T and is the answer not in the manual?

Questions and answers

Shane Reed

May 26, 2025

I ran over par of a buried rubber tire and now the blades will not engage. Is there a sheer pin I need to replace? It sounds like clutch is engaging. Also, don’t know if this is just a coincidence or if it was related to hitting the tire, but my deck will lower but not come back up. The fuses all look fine. Any ideas on fixing that? Thank you for any help

Summary of Contents for DR PRO MAX 60T

Page 1 TOW-BEHIND FIELD and BRUSH MOWER SAFETY & OPERATING INSTRUCTIONS Model: PRO MAX 60T DR Power Equipment Serial No. Toll-free phone: Order No. 1-800-DR-OWNER (376-9637) Website: www.DRPower.com Read and understand this manual and all instructions before operating the DR TOW-BEHIND FIELD and BRUSH MOWER.
Page 2: Table Of Contents
Chapter 1: General Safety Rules ................................3 Chapter 2: Assembling the DR TOW-BEHIND FIELD and BRUSH MOWER ..................6 Chapter 3: Setting Up the DR TOW-BEHIND FIELD and BRUSH MOWER ..................11 Chapter 4: Operating the DR TOW-BEHIND FIELD and BRUSH MOWER ................... 20 Chapter 5: Maintaining the DR TOW-BEHIND FIELD and BRUSH MOWER ..................
Page 3: Chapter 1: General Safety Rules
Labels Your DR TOW-BEHIND FIELD and BRUSH MOWER carries prominent labels as reminders for its proper and safe use. Shown below are copies of all the Safety and Information labels that appear on the equipment. Take a moment to study them and make a note of their location on your Mower as you set up and before you operate the unit.
Page 4 • Before mowing, clear the area of objects such as rocks, toys, wire, bones, sticks, etc. • Never remove or alter standard parts or add anything to the DR TOW-BEHIND FIELD and BRUSH MOWER, especially all shields and guards. •...
Page 5 • The DR TOW-BEHIND FIELD and BRUSH MOWER is designed to mow grass and brush. Do not use it for any other purpose. • Always mount remote control (if supplied) within easy reach of the operator’s position.
Page 6: Chapter 2: Assembling The Dr Tow-Behind Field And Brush Mower
Chapter 2: Assembling the DR TOW-BEHIND FIELD and BRUSH MOWER Item Part Description Figure 365721 BOLT - HEX - FLANGE - 1/2-13 X 3.5 - GR5 187571 BOLT-HCS 5/16-18 X 3.75 385991 BOLT-HEX FLANGE 5/16-18 X 1.75 GR5 385981 BOLT-HEX FLANGE 5/16-18 X 2.5 GR8...
Page 7 Uncrating the PRO MAX 60T Tools Needed: • Crowbar • Wire Cutter 1. Ensure the pallet is placed on relatively even ground and there is plenty of room on the right side of the machine (when standing behind engine). This will help the uncrating process as the pallet will need to completely slide out from underneath machine once built.
Page 8 PN: 333321 (Figure 5). 3. Using two ½ in Wrenches, tighten Hardware. Connecting the Battery Wires We ship DR TOW-BEHIND FIELD and BRUSH MOWER Electric- Figure 5 Starting machines with the Battery Wire disconnected. This prevents the Battery from discharge during shipment. Before using the DR TOW-BEHIND FIELD and BRUSH MOWER, connect Battery Wires.
Page 9 Attaching the Actuator to the Frame 1. Align the Frame with both the Actuators (Figure 8). 2. Raise/Lower the Actuators using the remote-control box until the Actuators mounting holes line up with the Frame. 3. Insert the Actuator Pin PN: 397351 through the Actuator and Frame and secure with the use of the Cotter Pin PN: 235001 (Figure 8 &...
Page 10 Attaching the Brush Bars to the Deck Tools Needed: • Two 5/16 in Wrenches 1. Install Brush bars onto each side of Machine (Figure 13). 2. There is a "left" and a "right" brush bar. Before starting installation, it is recommended to orient and place each part next to each corner of deck.
Page 11 Assembling the DR TOW-BEHIND FIELD and BRUSH MOWER Hardware Supplied in Product Package (Figure 14 and Table below): Item # Part # Description ....…….. PIN Clevis ½ X 4.5 in L ZP …………...….1 A0000253563 ....…………..255491 Pin, Clevis, ½ in X 2-1/2 in, TRT………….3 …………………...
Page 12 4. Gently spread open the cable clamps and install them onto the Remote Control Cable, positioning the clamps on the tow bar. Keep the Control Cable flat and centered on the Tow Bar (Figure 17). Cable Routed Cable over Push Bar Clamp Remote Control Cable...
Page 13: Chapter 3: Setting Up The Dr Tow-Behind Field And Brush Mower
Chapter 3: Setting Up the DR TOW-BEHIND FIELD and BRUSH MOWER It may be helpful to familiarize yourself with the Controls and Features of your DR TOW-BEHIND FIELD and BRUSH MOWER by reviewing Figure 18 before beginning these procedures. If you have any questions at all, please feel free to contact us at www.DRPower.com.
Page 14 Specifications PRO MAX 60T Engine See your Engine Manual for Oil Capacity and other Engine specifications. Starting System Electric Start Fuel Tank 2.5 gal. (9.46 L), Gasoline, Unleaded Battery 12 Volt 14.2 Ah Wheels Front: 11 x 4-5, Flat Free.
Page 15 Adding Oil and Gasoline Tip: To avoid confusion, we recommend leaving the caps on the Fuel and Oil Fills until you are ready to pour either gasoline or oil into the correct Fill. Engine Oil and Fuel Capacities Engine Oil, refer to Engine Manual for weight Fuel (Unleaded) recommendation.
Page 16 Connecting the DR TOW-BEHIND FIELD and BRUSH MOWER to your Tow Vehicle The Pin-Type Hitch that comes installed on the DR TOW-BEHIND FIELD and BRUSH MOWER Tow Bar is a quick and easy way to attach to the Tow Vehicles Tow Bar with a hole in the Hitch Plate.
Page 17 7 ..... 334431 .... Link, Chain Threaded Connector ....... 2 Compare the contents of the Parts Box with the “Parts Supplied” list above and (Figure 1). If you have any questions, please contact us at www.DRPower.com or call 1-800-DR-OWNER (376-9637) for assistance. Tools Needed: •...
Page 18 Pivot Bolt Figure 27 and Locknut Washer • The Ball Hitch Kit for the DR TOW-BEHIND FIELD and BRUSH MOWER is Ball Hitch Tow Bar designed for ATV, UTV, or Tractors with a 2 in Ball installed for towing. Extension •...
Page 19 Nut and the Clamp is fully compressed. Then back off the Lock Nut ½ turn or just enough that the Latch can clamp and unclamp from the Ball. If you have any questions, please contact us at www.DRPower.com or call 1-800-DR-OWNER (376-9637) for assistance. Lock Nut Ball Clamp Figure 32...
Page 20: Chapter 4: Operating The Dr Tow-Behind Field And Brush Mower
• Never use a truck (2 or 4wd) or jeep to operate the DR TOW-BEHIND FIELD and BRUSH MOWER. It would be difficult to see and operate the mower controls from these types of tow vehicles. Using these vehicles will void the DR TOW-BEHIND FIELD and BRUSH MOWER warranty.
Page 21 Throttle Control Key to Stop (Figure 35). Lever 3. Remove the Key for safety. Note: Close Fuel Shut-Off Valve when transporting or storing the DR TOW-BEHIND FIELD and BRUSH MOWER (Figure 33). Figure 35 CONTACT US AT www.DRPower.com...
Page 22 Figure 36 Keep feet clear of Mower Deck when adjusting height. Failing to do so, could pinch feet if they under Deck. Note: The DR TOW-BEHIND FIELD and BRUSH MOWER Deck cutting Height Rocker Switch ranges from a minimum of 4 in to a maximum of 7.5 in.
Page 23 Offset Mowing The Tow Bar allows it to offset the cutting path of the DR TOW-BEHIND FIELD and BRUSH MOWER up to 72 in from the center of the Tow Vehicle. The provided offset positions are “No Offset” (in line with Tow Vehicle), “Middle Offset” (53-1/2 in from center of Tow Vehicle) or “Full Offset”...
Page 24 Changing the Tow Bar Offset Direction Tow Bar can be installed for offsetting to right or left depending on which side of tow vehicle user chooses to mow. The following steps describe installing Offset Bracket to allow offsetting to left side of Tow Vehicle. Cable Routed over Push Bar Tools Needed:...
Page 25 • Check owner’s manual of the tow vehicle to determine its recommended towing capabilities on slopes. • When operating DR TOW-BEHIND FIELD and BRUSH MOWER over uneven terrain or slopes, use extreme caution not to tip over machine. • Never use DR TOW-BEHIND FIELD and BRUSH MOWER on slopes greater than 20 degrees. Doing so could result in serious injury or damage to machine.
Page 26: Chapter 5: Maintaining The Dr Tow-Behind Field And Brush Mower
Chapter 5: Maintaining the DR TOW-BEHIND FIELD and BRUSH MOWER This chapter covers regular maintenance procedures that will ensure the best performance and long life of the DR TOW-BEHIND FIELD and BRUSH MOWER. For Engine maintenance, please refer to the Engine Owner’s Manual that came with the machine.
Page 27 Oil Fill Removing and Replacing the Engine Oil and Filter Oil Drain Note: Refer to Engine Owner’s manual for more detailed instructions for Engine Oil Drain maintenance. Drain oil when Engine is warm. Warm oil drains quickly and Hose completely. Tools and Supplies Needed: •...
Page 28 • Gloves Fuel Shut-Off Fuel Line Use only DR Belts on your machine. They have been thoroughly tested and proven for many hours of use. Figure 50 Removing the Belt 1. Turn fuel shut-off valve to closed position (Figure 50).
Page 29 Installing a New Blade Belt Tensioner Pulley 1. Lay in the new Belt referencing the Belt Routing Label located on the center of the Deck (Figure 57). Plug 2. With the Belt still loose, reattach the Tensioner Spring onto the Tensioner Pulley.
Page 30 Removing and Replacing Fixed Blades Note: Replace Blade(s) when worn or damaged. Tools and Supplies needed: • 1-1/8 in Wrenches • Torque Wrench • Gloves Anti-Wrap • Jack Guard • Jack Stands Center • Wheel Chocks Washer • Dense Wooden Block (recommend 4 in x 4 in) Blade Center Bolt Wear gloves and use caution when pushing or pulling the wrench next to the...
Page 31 Replacing the Carbon Canister Tools needed: • Wire Cutters • Tank Hose Pliers Carbon Canister Cable Ties 1. Turn the Fuel Shut-Off Valve to the CLOSED position. 2. Cut Cable Ties securing Carbon Canister to Gas Tank Plate using wire cutters (Figure 63).
Page 32 Operate mower engine for at least 45 minutes to maintain proper battery charge. If battery loses its charge, charge using a trickle charger (like DR Battery Charger) to recharge it. Charger should have an output of 12 volts at no more than 2 amps.
Page 33: Chapter 6: Troubleshooting
Battery may need to be periodically charged. See the “Battery Care” section in Chapter 4.  If the Battery is charged and the DR TOW-BEHIND FIELD & BRUSH MOWER still will not start, visit our website at www.DRPower.com.
Page 34 When performing any adjustment or maintenance, you must first shut off the engine, wait five (5) minutes to allow parts to cool and disconnect the spark plug wires, keeping them away from the spark plugs. Troubleshooting Table (Continued) YMPTOM OSSIBLE AUSE ...
Page 35: Chapter 7: Parts Lists And Schematic Diagrams
Chapter 7: Parts Lists and Schematic Diagrams Parts List – Frame and Tow Bar Note: Part numbers listed are available through DR Power Equipment. Ref# Part# Description Ref# Part# Description A0004085436 SUPPORT-WHEELS W/LABELS 354961 TOW - BAR 345111 BOLT - HEX - FLANGE - 1/2-13 X 3 - GR5...
Page 36 Schematic – Frame and Tow Bar ® TOW-BEHIND FIELD AND BRUSH MOWER...
Page 37 Parts List – Deck Assembly Note: Part numbers listed are available through DR Power Equipment. Ref# Part# Description Ref# Part# Description A0004085437 DECK - TB60 IN W/LABELS A0004085475 GUARD - ANTI WRAP - TB60 397131 CHANNEL-SUPPORT-LEFT TB2 52IN A0004085473 BLADE 31.5 IN AIR TIP...
Page 38 Schematic – Deck Assembly ® TOW-BEHIND FIELD AND BRUSH MOWER...
Page 39 Parts List – Drive Assembly Note: Part numbers listed are available through DR Power Equipment. Ref# Part# Description Ref# Part# Description 352811 BOLT-HEX FLANGE TL 3/8-16 x 3/4 A0004085492 GUARD - MANIFOLD - REAR - TB60 A0004085470 MOUNT MOTOR-TB60 A0004085482...
Page 40 Schematic – Drive Assembly ® TOW-BEHIND FIELD AND BRUSH MOWER...
Page 41 Notes: CONTACT US AT www.DRPower.com...
Page 42 TOW-BEHIND FIELD and BRUSH MOWER is fit for ordinary purposes for which a product of this type is used. DR Power Equipment however, limits the implied warranties of merchantability and fitness in duration to a period of two (2) years in consumer use, ninety (90) days for any other use except all emission related components.
Page 43 • If your DR TOW-BEHIND FIELD and BRUSH MOWER will be idle for more than 30 days, we recommend using a gas stabilizer. This will prevent sediment from gumming up the Carburetor. If there is dirt or moisture in the gas or tank, remove it by draining the tank.
