ASROCK H410TM-ITX Quick Installation Manual

*15G067035000AK*
P/N: 15G067035000AK V1.0
H410TM-ITX
Take note of the following precautions before you install motherboard components or change any
motherboard settings.
1. Unplug the power cord from the wall socket before touching any components.
2. To avoid damaging the motherboard's components due to static electricity, NEVER place your
motherboard directly on the carpet or the like. Also remember to use a grounded wrist strap or
touch a safety grounded object before you handle the components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded anti-static pad or in the bag
that comes with the component.
5. When placing screws into the screw holes to secure the motherboard to the chassis, please do
not over-tighten the screws! Doing so may damage the motherboard.
Specifications
2
Form
• Thin Mini-ITX Form Factor
Factor
Dimen-
• 6.7" x 6.7"
sion
th
CPU • Supports 10 Gen Intel® Core
Processors (Socket 1200)
• 4 Power Phase design
• Supports Intel® Turbo Boost Max
3.0 Technology
Chipset
• Intel® H410
Memory • Supports 2 x DDR4
SO-DIMM Slots, Max. 64GB
Expansion • 1 x M.2 Socket (Key E), supports
Slot type 2230 WiFi/BT module
Audio
• Realtek ALC233
LAN • Realtek RTL8111H
Storage • 1x Ultra M.2 (2260/2280) PCIe
Gen3 x4 / SATA 6Gb
• 2 x SATA 6Gb
Rear USB
• 4 x USB 3.2 Gen1
Video • HDMI1 (Rear)
Output HDMI2 (Internal)
• 1 x LVDS
Onboard • 1 x Chassis Intrusion Header
header • 1 x Panel Voltage Selection
Header
• 1 x Backlight Inverter Voltage
Selection Header
• 1 x FPD Brightness Header
• 1 x Panel Off Header
• 1 x LVDS Connector
• 2 x CPU Fan Connectors (4-pin)
* The CPU Fan Connectors support
the CPU fan of maximum 1A (12W)
fan power.
• 1 x 4 pin 19V Power Connector
• 1 x Thermal Sensor Header (2-
Pin)
• 1 x Front Panel Audio Connector
• 1 x Internal Speaker Header (4-
Pin)
• 2 x SATA Power Connectors
• 2 x USB 2.0 Headers (Support 4
USB 2.0 ports) (Supports ESD
Protection)
Power • 1 x DC Jack (Supports 19V DC
Power Adapters)
Certifica- • FCC, CE
tions • ErP/EuP ready (ErP/EuP ready
power supply is required)
Quick Installation Guide

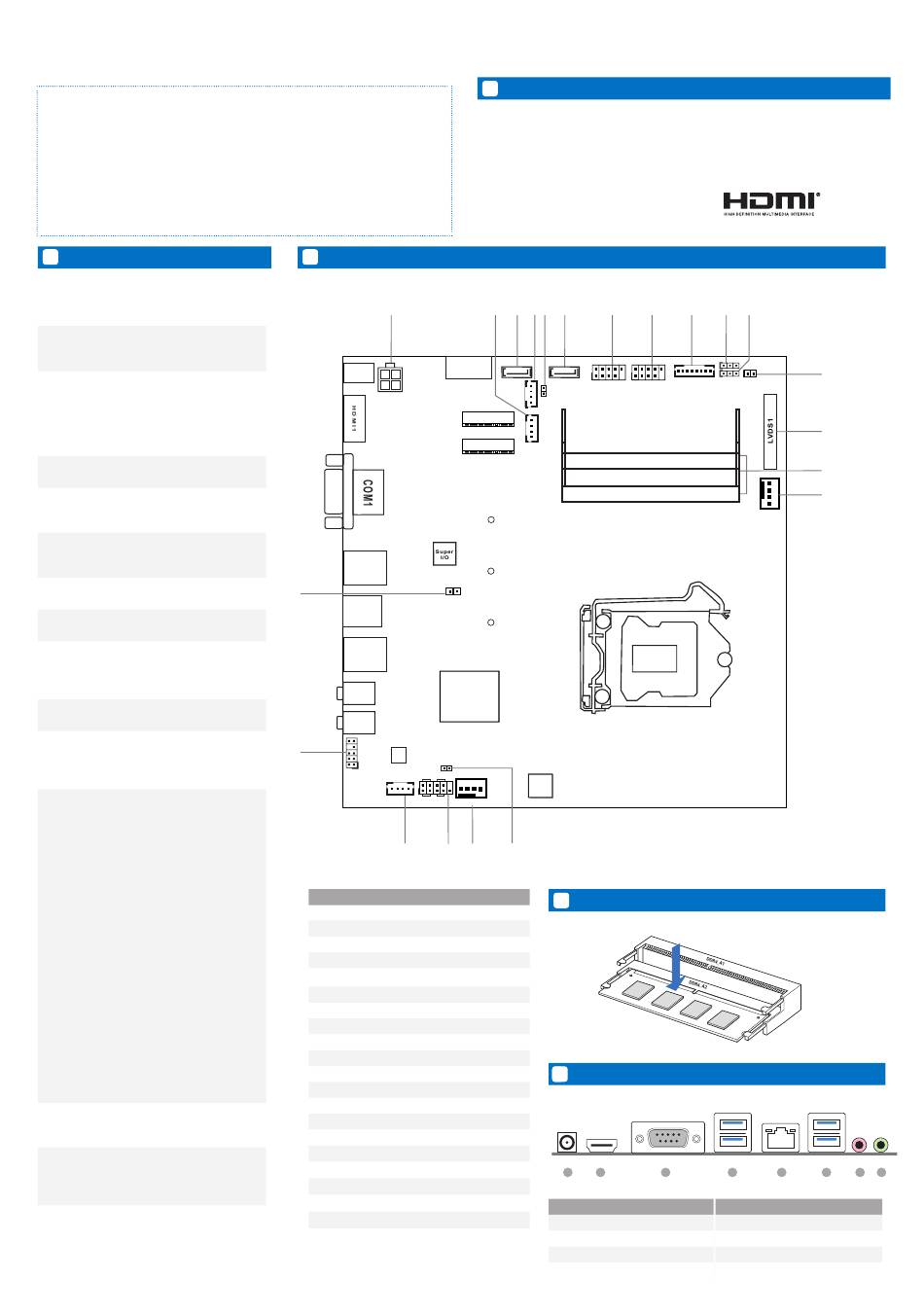

Motherboard Layout
3
1
ATX_PWR1
DC Jack
TM
USB 3.2 Gen1
T: USB3_3
B: USB3_4
21
RJ-45
USB 3.2 Gen1
T: USB3_1
B: USB3_2
Mic In
Headphone
20
Audio
CODEC
1
HD_AUDIO1
SPK_OUT1
1
19
No. Description
1 4 pin 19V Power Connector (ATX_PWR1)
2 SATA Power Connector (SATAPWR2)
3 SATA3 Connector (SATA_1)
4 SATA Power Connector (SATAPWR1)
5 Clear CMOS Jumper (CLRCMOS1)
6 SATA3 Connector (SATA_2)
7 USB 2.0 Header (USB2_1_2)
8 USB 2.0 Header (USB2_3_4)
9 FPD Brightness Header (BLT_VOL1)
10 Panel Voltage Selection Header (PNL_PWR1)
11 Backlight Inverter Voltage Selection Header (BKT_
12 Panel Off Header (PNL_SW1)
13 LVDS Connector (LVDS1)
14 2 x 260-pin DDR4 SO-DIMM Slots (DDR4_A1,
15 CPU Fan Connector (CPU_FAN1)
16 Chassis Intrusion Header (CI1)
17 CPU Fan Connector (CPU_FAN2)
18 System Panel Header (PANEL1)
19 Internal Speaker Header (SPK_OUT1)
20 Front Panel Audio Header (HD_AUDIO1)
21 Thermal Sensor Header (TH1)
1 Package Contents
• H410TM-ITX Motherboard (Thin Mini-ITX Form Factor)
• H410TM-ITX Quick Installation Guide (Optional)
• 1 x Thin-Mini ITX I/O Shield (Optional)
• 1 x Mini ITX I/O Shield (Optional)
• 1 x Serial ATA (SATA) Data Cable (Optional)
• 1 x SATA Power Cable (Optional)
• 2 x Screws for M.2 Sockets (M2*2) (Optional)
2 3 4 5 6
HDMI2
1
SATA_1 SATA_2
CLR_MOS1
1
1
SATAPWR1
M.2 SSD
1
M.2 WiFi
SATAPWR2
MH1
H410TM-ITX
M2_1_CT2
TH1
1
M2_1_CT1
Intel
H410
CI1
1
PLED PWRBTN
BIOS
ROM
1
HDLED RESET
PANEL1 CPU_FAN2
18 17 16
4 SO-DIMM
5 I/O Panel
1
No. Description
1 DC Jack (19V)
2 HDMI Port (HDMI1)
3 COM Port
4 USB 3.2 Gen1 Port (USB3_34)
The terms HDMI
Multimedia Interface, and the HDMI logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
7 8 9 11
10
PNL_PWR1
1
1
PNL_SW1
1
1
BKT_PWR1
BLT_VOL1
USB2_1_2 USB2_3_4
RoHS
DDR4_A2
DDR4_A1
CPU_FAN1
2 3 4
No. Description
5 LAN RJ-45 Port*
6 USB 3.2 Gen1 Port (USB3_12)
7 Microphone (Pink)
8 Line out (Lime)
®
and HDMI High-Definition
12
13
14
15
5 4 7 8
