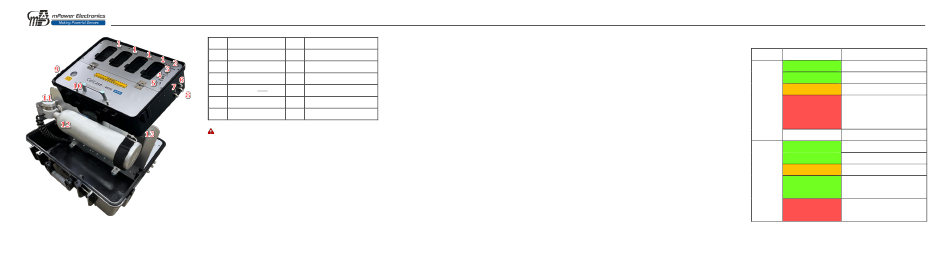

MP310
CaliCase for UNI MP100 Series
1 8
Unit LED x 4 Exhaust Port
2 9
Status LED Pressure Gauge
3 10
CAL Button Thumb Screw x 2
4 BUMP Button 11
Demand-flow Regulator
5 12
Gas Cylinder (C10)
USB Data Line Port
6 13
Air Inlet Disk Port
7
Charging Port
Caution: Use in non-hazardous-gas locations only!
S I
ETUP AND NSTALLATION
1. Connect the case to a PC by USB cable [5]. Use
mPower Suite software to configure the gas
concentrations & other parameters on the
CaliCase. Be sure to set the gas type to match
the sensor type and the expiration date past the
current date.
2. Insert the UDisk thumb drive into a PC USB port
and configure the gas concentrations &
expiration dates on the UDisk using mPower
Suite. Be sure to Write both the CaliCase Info
and the UNI Info to the UDisk.
3. With the Calicase powered off, insert the UDisk
into port [13] and then turn the power on. This
process transfers configurations from the Udisk
to the CaliCase, which override the monitor
configurations. Without the Udisk the CaliCase
will function but cannot save reports!
4. Thread the gas cylinder [12] into the demand-
flow regulator (DFR) [11] C10 inlet fitting. Once
tightly connected, the gauge [9] will indicate
the cylinder gas pressure.
C B
ALIBRATION OR UMP
1. Turn on 1-4 UNI instrument(s) and place them
face-down into their cradle(s).
2. If the power is off, press and hold the CAL
button [3] until the Status LED [2] turns green.
C :
3. Press the CAL button [3] to
ALIBRATION
initiate. The Unit LED(s) [1] should blink green
for about 60-100 seconds and then stay GREEN
if passed or turn RED if failed.
B :
4. UMP Press the BUMP button [4] to initiate.
The buzzer will be tested and the Unit LED will
blink green for about 30 seconds and then stay
GREEN if passed or turn RED if failed.
5. A Calibration or Bump Report will be saved on
the UDisk.
6. To abort a Calibration or Bump, press & hold the
BUMP button [4] until the Unit LED(s) turn off.
7. To power off, press CAL until the Status LED
turns off.
Q
UICK START GUIDE
LED
S
LED Color Description
Green Power on
Green blinking Low battery
Orange Charging
S
TATUS
1) USB Disk error
LED
Red blinking 2) Datetime error
3) No pump detected
None Power off
Cal/Bump testing
Green blinking fast
Green blinking slow Unit firmware upgrading
Orange Match fail
U
NIT
1) Cal/Bump test pass
LED
Green
S
2) Unit firmware upgrade pass
1) Cal/Bump test fail
Red
2) Unit firmware upgrade fail
