Ace ELC110 Manual

Specifications
Line Armature
Voltage Voltage Range
Model (VAC) (VDC)
Current (Amps)
115 0 - 90
ELC110-10
* Heat sink kit HSK-0001 must be used when the continuous output current is over 5 amps.
AC Line Voltage .............................................................115 VAC ± 10%, 50/60 Hz, single phase
Form Factor ...................................................................................................1.37 at base speed
Acceleration / Deceleration Time Range ............................................................0.5 - 8 seconds
Analog Input Range (Signal must be isolated; S1 to S2) ...............................................0 - 4 VDC
Input Impedance (S1 to S2) .....................................................................................>100K ohms
Load Regulation ...................................................................................1% base speed or better
Speed Range ........................................................................................................................60:1
Vibration (0 - 50 Hz) ...........................................................................................0.5G maximum
(>50 Hz) ..............................................................................................0.1G maximum
Ambient Temperature Range ...................................................................................10°C - 55°C
Weight ..............................................................................................................................0.7 lbs
Safety Certifications.................................................. UL/cUL Listed Equipment, file # E132235
Installation
Mounting
• Drive components are sensitive to electrostatic discharge. Avoid direct contact with the circuit
• board. Hold the drive by the chassis or heat sink only.
• Protect the drive from dirt, moisture, and accidental contact.
• Provide sufficient room for access to the terminals and calibration trim pots.
• Mount the drive away from heat sources. Operate the drive within the specified ambient operating
• temperature range.
• Prevent loose connections by avoiding excessive vibration of the drive.
• Mount the drive with its board in either a horizontal or vertical plane. Six 0.19" (5 mm) wide slots
• in the chassis accept #8 pan head screws. Fasten either the large base or the narrow flange of the
• chassis to the subplate.
• The chassis should be earth grounded. Use a star washer beneath the head of at least one of the
• mounting screws to penetrate the anodized chassis surface and to reach bare metal.
Wiring
Use 18 - 24 AWG wire for logic wiring. Use 14 - 16 AWG wire for AC line and motor wiring.
Shielding Guidelines
As a general rule, ACE recommends shielding of all conductors. If it is not practical to shield power
conductors, ACE recommends shielding all logic-level leads. If shielding of logic-level leads is not
practical, the user should twist all logic leads with themselves to minimize induced noise. It may be
necessary to earth ground the shielded cable. If noise is produced by devices other than the drive,
ground the shield at the drive end. If noise is generated by the drive, ground the shield at the end
away from the drive. Do not ground both ends of the shield.
Fusing
ACE drives require an external line fuse for protection. Use fast acting fuses rated for 125 VAC or
higher and 150% of the maximum armature current. Fuse the HOT leg of the AC line.
ELC110
1Q SCR Chassis Adjustable Speed Drive
for PMDC Brushed Motors
READ ALL SAFETY WARNINGS BEFORE INSTALLING THIS EQUIPMENT
Continuous
• DO NOT INSTALL, REMOVE, OR REWIRE THIS EQUIPMENT WITH POWER APPLIED. Have a
Armature Horsepower
• qualified electrical technician install, adjust and service this equipment. Follow the National
Range
• Electrical Code and all other applicable electrical and safety codes, including the provisions of the
5.0 1/8 - 1/2 • Occupational Safety and Health Act (OSHA), when installing equipment.
• Circuit potentials are at 115 above earth ground. Avoid direct contact with the printed circuit board
• or with circuit elements to prevent the risk of serious injury or fatality. Use a non-metallic
• screwdriver for adjusting the calibration trim pots. Use approved personal protection equipment
• and insulated tools if working on this drive with power applied.
• Reduce the chance of an electrical fire, shock, or explosion by using proper grounding techniques,
• over-current protection, thermal protection, and enclosure. Follow sound maintenance procedures.
• ACE strongly recommends the installation of a master power switch in the line voltage input. The
• switch contacts should be rated for 125 VAC and 200% of motor nameplate current.
• Removing AC line power is the only acceptable method for emergency stopping. Do not use
• dynamic braking, decelerating to minimum speed, or coasting to a stop for emergency stopping.
• They may not stop a drive that is malfunctioning. Removing AC line power is the only acceptable
• method for emergency stopping.
• Line starting and stopping (applying and removing AC line voltage) is recommended for infrequent
• starting and stopping of a drive only. Dynamic braking, decelerating to minimum speed, or coasting
• to a stop is recommended for frequent starts and stops. Frequent starting and stopping can produce
• high torque. This may cause damage to motors.
• Do not disconnect any of the motor leads from the drive unless power is removed or the drive is
• disabled. Opening any one lead while the drive is running may destroy the drive.
• Under no circumstances should power and logic level wires be bundled together.
• Be sure potentiometer tabs do no make contact with the potentiometer's body. Grounding the
• input will cause damage to the drive.
Line Input
Connect the AC line power leads to terminals L1 and L2. The potentiometer on the front cover has a built-in
switch.
Motor
Connect the DC armature leads to terminals A1 and A2. If the motor does not spin in the desired direction,
power down the drive and reverse these connections.
Speed Potentiometer
ELC110 series drives are pre-installed with a 10K ohm potentiometer for speed control
Inhibit
Short the INHIBIT terminals to coast the motor to minimum speed. Open the INHIBIT terminals to
accelerate the motor to set speed. Twist inhibit wires and seperate them from power-carrying wires or
sources of electrical noise. Use shielded cable if the inhibit wires are longer than 18 inches (46 cm). If
shielded cable is used, ground only one end of the shield to earth ground. Do not ground both ends of
the shield. Do not use the inhibit for emergency stopping.
Safety Warnings
Connections
POWER
LOGIC

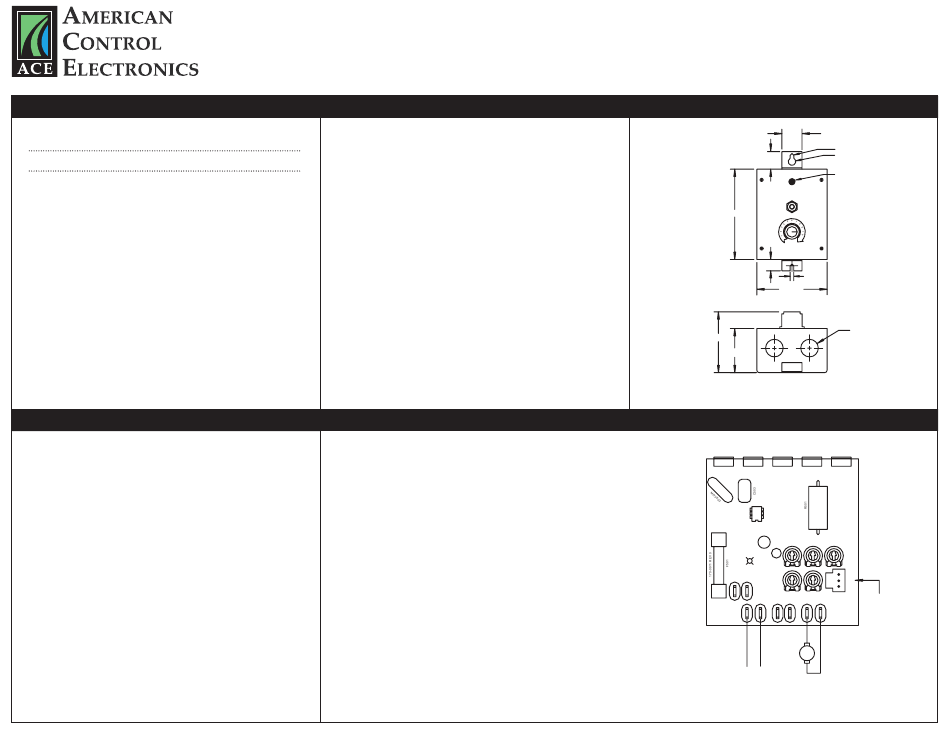

Dimensions
1.00 [25.4]
R 0.09 [2.29]
R 0.19 [4.83]
0.88
[22.35]
PILOT LIGHT
POWER
ON
4.50 [114]
OFF
0.57
[14.48]
0.18
[4.57]
3.50 [88.9]
2x ø 0.87 [22.23]
3.03 [76.96]
2.20 [55.88]
ALL DIMENSIONS IN INCHES [MILLIMETERS]
SCR501 D501
D502 D503 SCR502
IC501
C501 CURRENT
IR COMP MIN SPD
LIMIT
IL501
C502
J501
POWER
S1
L1
FRM-SWITCH-TO
S2
S3
ACCEL/DECEL MAX SPD
J501 (S1, S2, S3)
INHIBIT
PREWIRED TO CASE
10K OHM SPEED
L1 L2 A2 A1
INHIBIT
MOTOR
L1 L2
INPUT
VOLTAGE
