Avigilon SYS-8ENT-DVE2 Quick Start Manual

8-Door Smart Hub Quick Start Guide
SYS-8ENT-DVE2

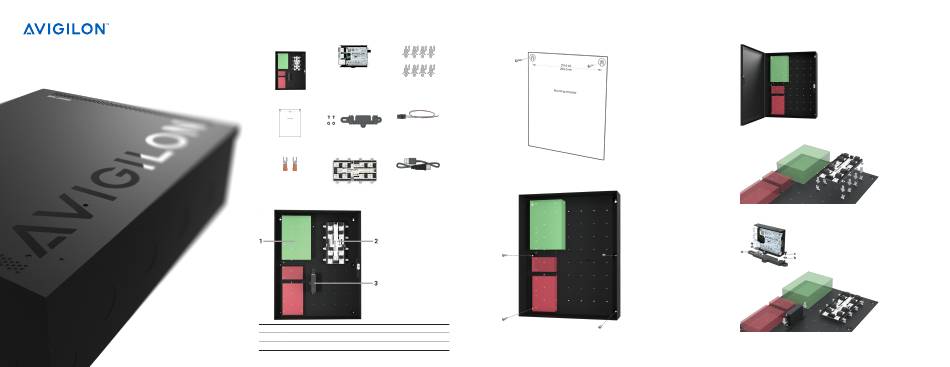

What's Included
8-Door Smart Hub Access Control Core Standoffs
enclosure
Mounting template Bracket and push-in Power cable
fasteners
Spade lugs (optional) 8-Port Expansion Board USB cable
Overview
1
Power Supply
2 Expansion Board
3
Access Control Core
1 - Mounting
1. Use the included paper template to mark and pre-drill the location for the enclosure.
Install 2 fasteners (not included) leaving the heads ¼ inch out from the wall.
2. Hang the enclosure onto the two fasteners and tighten the fasteners to the wall. Use
four additional fasteners (not included) to secure the middle and bottom of the
enclosure to the wall.
2 - Installing
1. Open the enclosure.
2. Install the expansion board into the enclosure using the included standoffs
(quantity: 8).
3. Install the Access Control Core below the expansion board using the included bracket.
Unscrew the retaining screw (a), slide the Access Control
Core into the bracket, and then tighten (a) to the bracket.
Use the included washers (b) and fasteners (c) to secure
the bracket directly to the enclosure.
