H3C PSR2000-12D-B Power Supply User Manual-APW101
H3C PSR2000-12D-B 电源手册-APW101
Overview 简介
•
The PSR2000-12D-B is a DC input and DC output power supply. It
provides a maximum output of 2000 W. PSR2000-12D-B 是一款直流输
入、直流输出的电源模块。这款电源模块的最大输出功率可达 2000W。
•
The PSR2000-12D-B power supply exhausts air from its faceplate. The
following figure shows the PSR2000-12D-B power supply.
PSR2000-12D-B 的风道风向是电源面板侧出风。下图展示
PSR2000-12D-B 的外观。

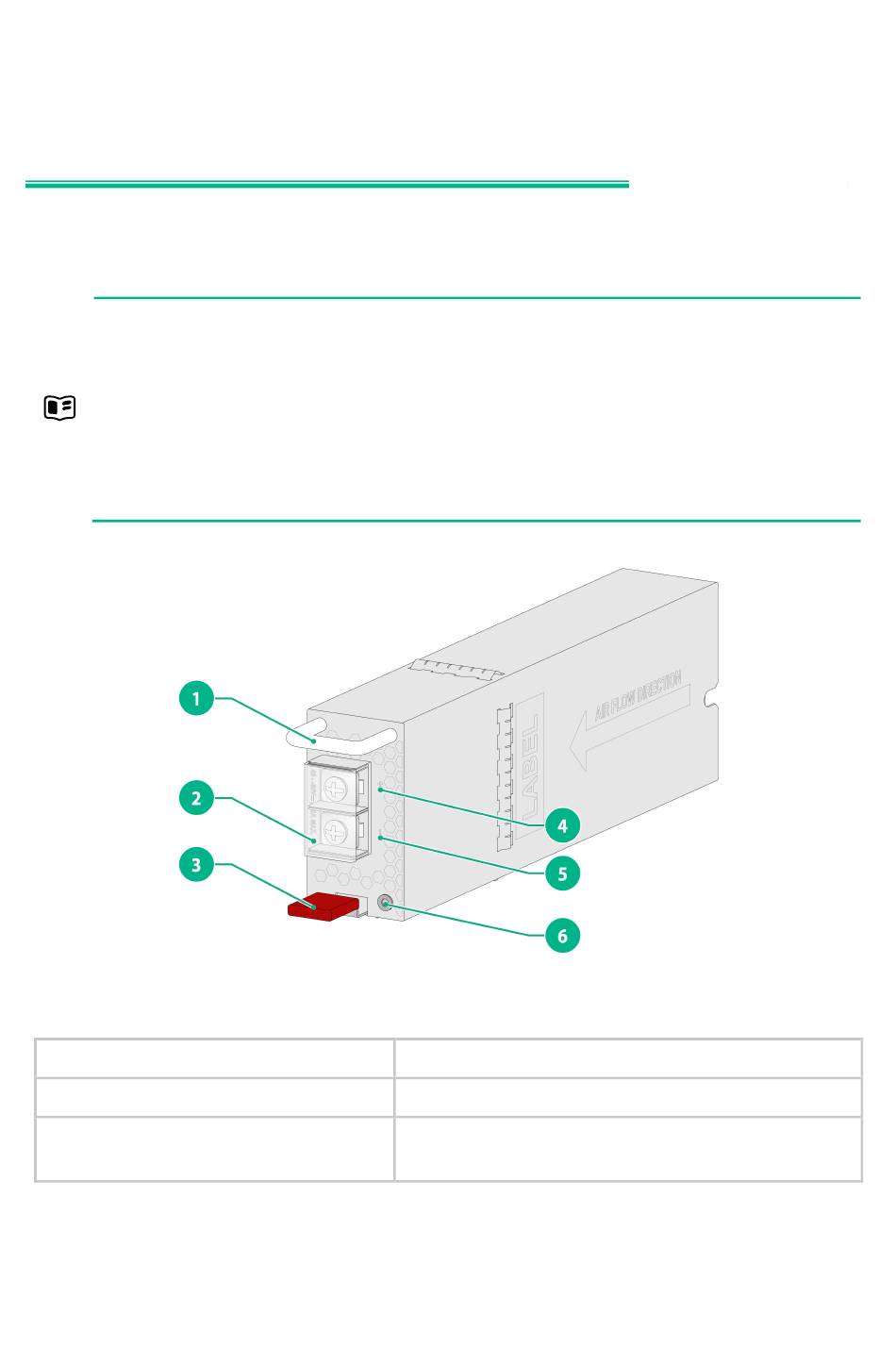

(1) Handle 电源模块拉手
(3) Latch 锁闩
(5) DC input negative connection (-)
直流输入：-
(2) Protection cover 保护盖
(4) DC input positive connection (+) 直流输入：+
(6) LED 状态指示灯
1
BOM: 3101A13T
Advertisement
Related Manuals for H3C PSR2000-12D-B
Summary of Contents for H3C PSR2000-12D-B
- Page 1 H3C PSR2000-12D-B 电源手册-APW101 BOM: 3101A13T Overview 简介 • The PSR2000-12D-B is a DC input and DC output power supply. It provides a maximum output of 2000 W. PSR2000-12D-B 是一款直流输 入、直流输出的电源模块。这款电源模块的最大输出功率可达 2000W。 • The PSR2000-12D-B power supply exhausts air from its faceplate. The following figure shows the PSR2000-12D-B power supply.
- Page 2 PSR2000-12D-B 适用于多款交 换机产品，其适用机型的准确信息随着时间变化有更新的可能性，若您需 要详细的适配信息，请咨询市场人员或技术支持人员。 • The restrictions for using the PSR2000-12D-B power supply depend on the switch model. For more information, see the installation guide or hardware information and specifications for the switch. PSR2000-12D-B 用于不同交换机产品时可能存在不同的使用限制，具体请参考产品配套安...
- Page 3 Relative humidity 工作环境相对湿度（非凝露） 5% RH to 95% RH, noncondensing -40°C to +70°C (–40°F to +158°F) Storage temperature 存储温度 LEDs 电源模块状态指示灯 The PSR2000-12D-B power supply provides a LED to indicate its operating status. PSR2000-12D-B 电源模块上提供有电源模块状态指示灯， 用于指示电源模块的工作 状态。 LED status 指示灯状态 Description 含义...
- Page 4 To avoid bodily injury, do not touch any bare wire or terminal. 不要接触露出的任何导线、端子部分，以免对人体造成伤害。 • To avoid power supply damage, do not open the power supply. When the internal circuits or components of the power supply fail, contact H3C Support. 为了防止电源模块受损，请不要随意打开电源模块外壳，当电源模块内部 线路或元器件出现故障时，请移交维修人员进行检修。...
- Page 5 3. Installing the power supply 安装电源模块 • Keep the filler panel, packaging box, and packaging bags for the power supply secure for future use. 请妥善保管假面板及电源模块的包装盒、包 装袋等物品，以备将来需要时使用。 • Before installing the power supply on a switch, make sure it matches the switch model.
- Page 6 (3) Correctly orient the power supply. Grasping the power supply handle with one hand and supporting its bottom with the other, slide the power supply slowly along the guide rails into the slot. Make sure the latch on the power supply clicks into place.
- Page 7 4. Connecting the power cord 连接电源线 • To meet the current requirements and match the power supply terminals, use the power cord or ring terminals provided by H3C. 为满足通流要求以 及电源模块接口的适配要求，需选用 H3C 公司提供的电源线或 OT 端子。 Provide a separate circuit breaker for each power cord. 请保证电源线有...
- Page 8 (3) Connect the end of the DC power wire marked with – to the negative terminal (–) on the power supply and fasten the mounting screw. Connect the end of the DC power wire marked with + to the positive terminal on the power supply and fasten the mounting screw.将直流电源线标识为“-”的一端插到标有“-”的端...
- Page 9 (3) Wear an ESD wrist strap and make sure the strap makes good skin contact and is reliably grounded.佩戴防静电腕带， 请确保防静电腕带与皮肤良好接触， 并确认防静电腕带已经良好接地。 (4) Remove the protection cover from the power supply. Use a Phillips screwdriver to loosen the mounting screws on the wiring terminals, and then remove the power wires.拆卸电源线。取下接线端子的保护罩，用十字螺丝刀松开接线端子...
- Page 10 用一只手握住电源模块拉手，另一只手托住电源模块下方，将电源模块沿着插 槽导轨水平缓慢地拉出。 (3) Put the removed power supply into an antistatic bag. 将拆卸下来的电源模块放 到防静电袋中。 Copyright © 2022, New H3C Technologies Co., Ltd. The information in this document is subject to change without notice. Copyright © 2022 新华三技术有限公司 版权所有，保留一切权利 本文档中的信息如有更改，恕不另行通知 如需了解产品及安装方面的更多信息，请登录 H3C 网站 www.h3c.com...
