Kohler RAINDUET R24717T Installation Instructions

INSTALLATION INSTRUCTIONS
R24717T
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. The highest working pressure for handshower is 0.5MPa(5bar). If it exceeds 0.5MPa(5bar), a pressure reducer is
needed. The highest water and environment temperature is 60°C. Please keep the handshower, shower head and
shower arm away from heater, or it may become damaged and cause injury to the user.
STANDARD APPLICABLE
Special model meets or exceeds the following at date of manufacture: TIS

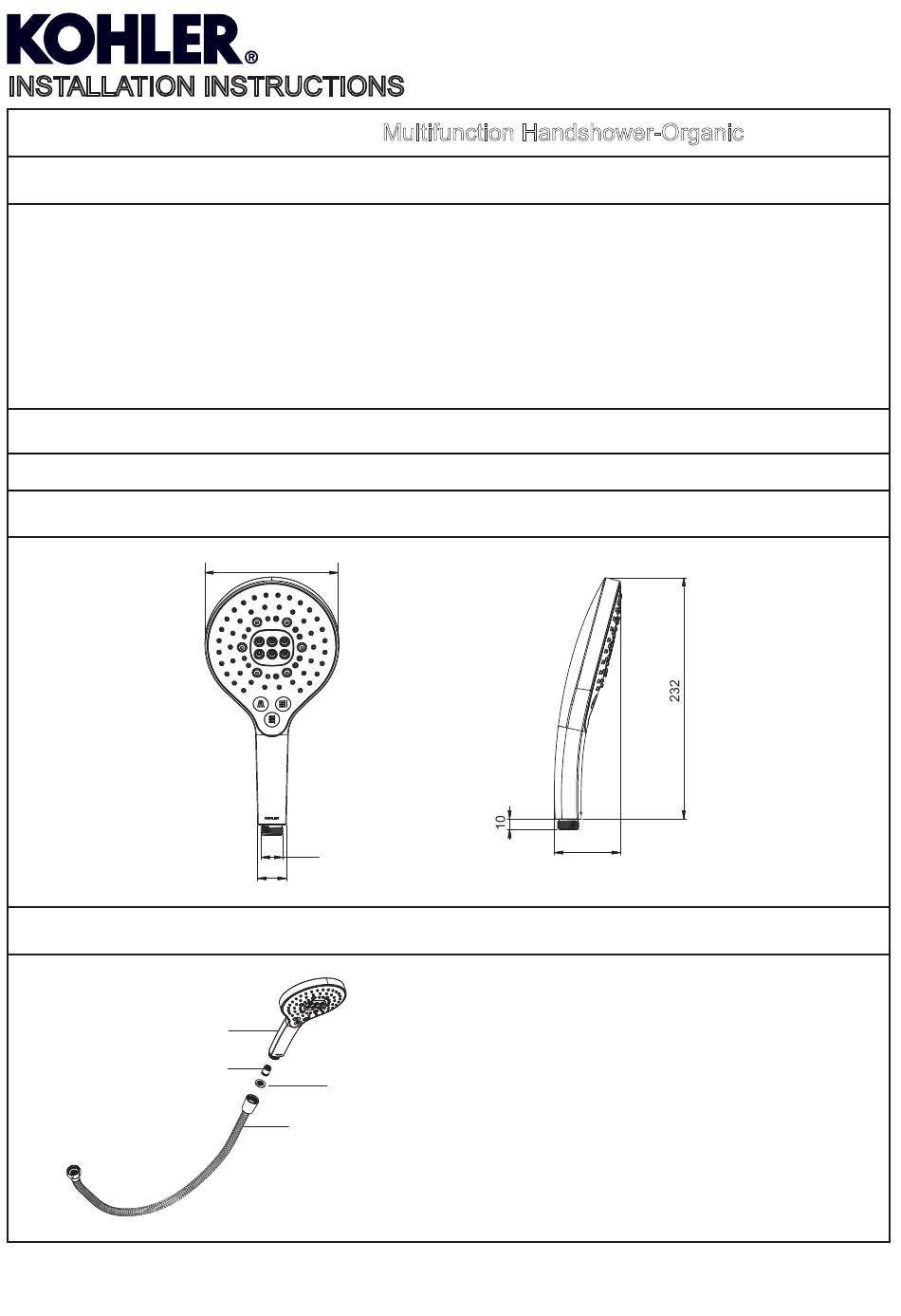

ROUGH-IN DIMENSIONS
INSTALLATION
1355515-2A-D
24717T
Multifunction Handshower-Organic
126
G1/2˝
27
1
2
3
4
63.5
How to Install the Handshower
Flush both water supplies for about one minute to
remove any debris before installing the handshower(1).
Put the screen washer(3) into the shower hose(4,not
provided) connector. Insert regulator(2) with check
valve into the handshower inlet if needed. Connect the
handshower to the hose.
NOTE: Don't overtighten it.
Connect the other end of hose to the water supply.
RAINDUET
R24717T 24717T
1
