8-1

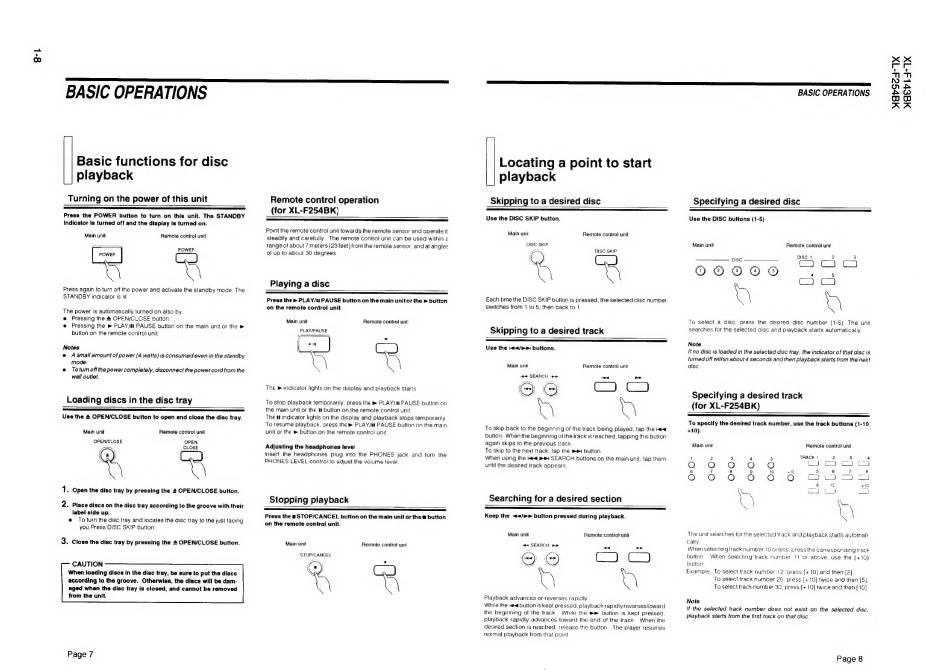

BASIC OPERATIONS
Basic functions for disc
playback
Turning on the power of this unit
Press the POWER button to turn on this unit. The STANDBY
Indicator is turned off and the display is turned on.
Main unit Remote contro unit
POWEF
Press again to turn off the power and activate the standby mode. The
STANDBY indicator is tit
The power is automatically turned on also by.
@ Pressing the 4 OPEN/CLOSE button
@ Pressing the » PLAY/PAUSE button on the main unit or the »
button on the remote control unit
Notes
@ Asmall amount of power (4 watts) is consumed even in the standby
mode.
© Totum off the power completely, disconnect the power cord from the
wall outlet.
Loading discs in the disc tray
Use the & OPEN/CLOSE button to open and close the disc tray.
Main unit Remote control unit
OPEN/CLOSE OPEN
CLOSE
2 <
1. Open the disc tray by pressing the 4 OPEN/CLOSE button.
2. Place discs on the disc tray according to the groove with their
label side up.
@ To turn the disc tray and Jocates the disc tray to the just facing
you,Press DISC SKIP button.
3. Close the disc tray by pressing the 4 OPEN/CLOSE button.
CAUTION
When loading discs in the disc tray, be sure to put the discs
according to the groove. Otherwise, the discs will be dam-
aged when the disc tray is closed, and cannot be removed
from the unit.
Page 7
Remote control operation
(for XL-F254BK)
EE
Point the remote control unit towards the remote sensor and operate it
steadily and carefully. The remote contro! unit can be used within <
range of about 7 meters (23 feet) from the remote sensor, and at angles
of up to about 30 degrees
Playing a disc
Press the » PLAY/tt PAUSE button on the main unitor the » button
on the remote control unit.
Main unit Remote control unit
PLAY/PAUSE
>
The » indicator tights on the display and playback starts
|
\
To stop playback temporarily, press the m PLAY/# PAUSE button on
the main unit or the i button on the remote control unit
The tf indicator lights on the display and playback stops temporarily
Toresume playback, press the » PLAY/# PAUSE button on the main
unit or the m button on the remote control unit
Adjusting the headphones level
Insert the headphones plug into the PHONES jack and turn the
PHONES LEVEL contro! to adjust the volume levei
Stopping playback
Press the s STOP/CANCEL button on the main unit or them button
on the remote control unit.
Main unit Remote control unit
STOP/CANCEL
Locating a point to start
playback
Skipping to a desired disc
BASIC OPERATIONS
Specifying a desired disc
Use the DISC SKIP button.
Main unt Remote control unit
DISC SKIP
\
Each time the DISC SKIP button is pressed, the selected disc number
switches from 1 to 5, then back to 1
OISC SKIP
Skipping to a desired track
Use the </> buttons.
Main una Remote control unit
"44 SEARCH oe - o>
GOO
YN ie
To skip back to the beginning of the track being played, tap the wee
button. When the beginning of the track is reached, tapping this button
again skips to the previous track
To skip to the next track, tap the mr button
When using the Ke 1 SEARCH buttons on the main unit, tap them
until the desired track appears
Searching for a desired section
Keep the <</m» button pressed during playback.
Main una Remote control unit
>
Playback advances or reverses rapidly
While the «4 button is kept pressed, playback rapidly reverses toward
the beginning of the track While the m® button is kept pressed
playback rapidly advances toward the end of the track. When the
desired section is reached, release the button. The player resumes
normal playback from that point
~« ~@+ SEARCH me
Use the DISC buttons (1-5)
Main unit Remote control unit
2 bise: osc 4 3
GOO00090 os
xs at]
N y
To select a disc, press the desired disc number (1-5). The unit
searches for the selected disc and playback starts automatically
Note
If no disc is loaded in the selected disc tray, the indicator of that disc is
turned off within about 4 seconds and then playback starts from the next
disc.
Specifying a desired track
(for XL-F254BK)
To specify the desired track number, use the track buttons (1-10
+10).
Main unk Remote control unit
1 2 3 4 5 TRACK 1 2 3 4
Oo ©. Oo CG. 6 CJ COC) Cy
6 z 8 9 jo +1¢ en Py UO: Coty 28
Oo 0 0 0 90 es oan ee ee
9 1C +10
e tots i es)
The unit searches for the selected track and playback starts automat
a
as
cally
When selecting track number 1001 less, press the corresponding track
button When selecting track number 11 or above. use the [+10]
button
Example. To select track number 12. press [+10] and then [2]
To select track number 25. press [+10] twice and then [5]
To select track number 30, press [+ 10] twice and then [10]
Note
if the selected track number does not exist on the selected disc,
Playback starts from the first track on that disc.
