mem:rex

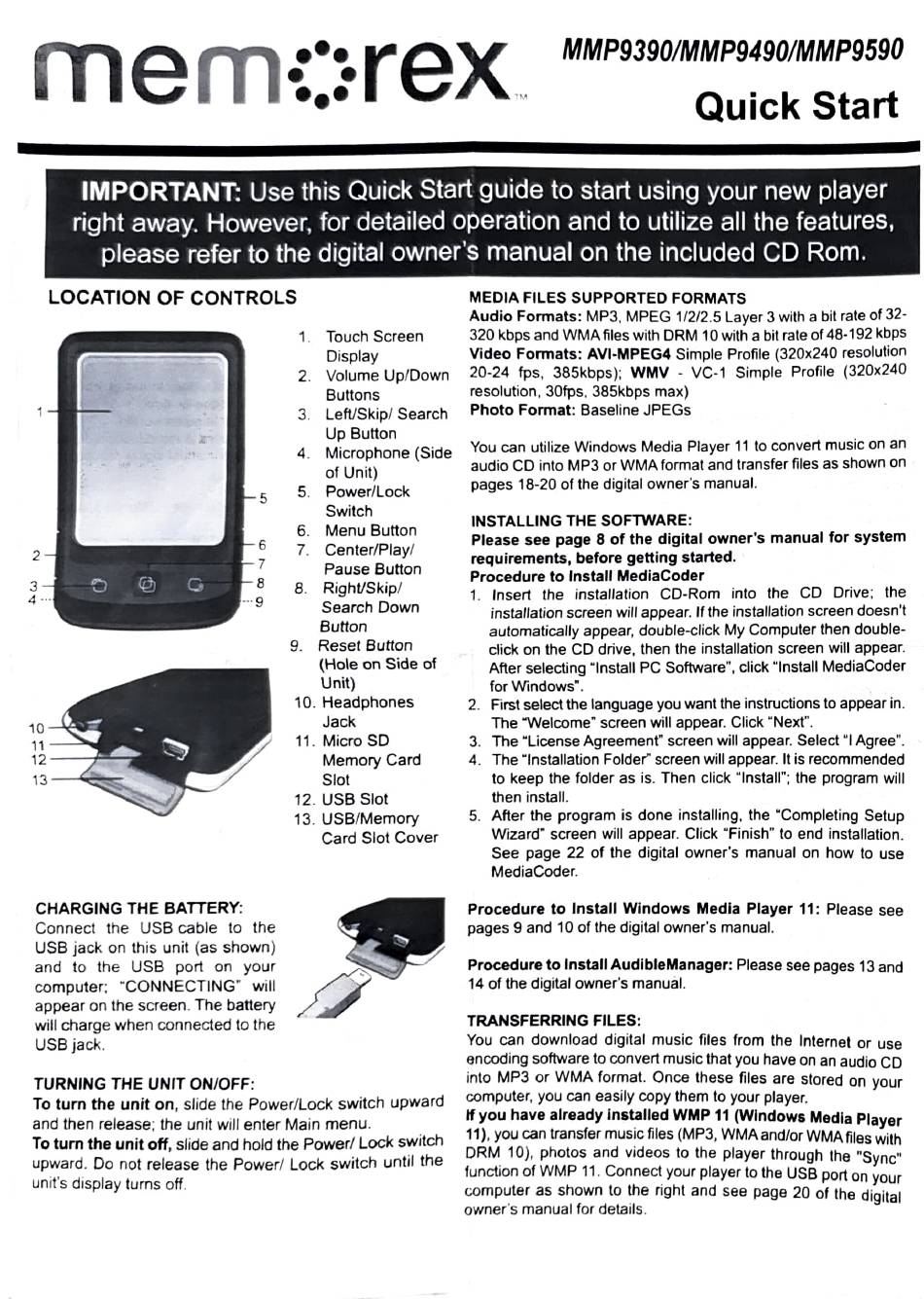

LOCATION OF CONTROLS
IMPORTANT: Use this Quick Start guide to start using your new player
right away. However, for detailed operation and to utilize all the features,
please refer to the digital owner's manual on the included CD Rom.
5
TURNING THE UNIT ON/OFF:
6
7
CHARGING THE BATTERY:
Connect the USB cable to the
USB jack on this unit (as shown)
and to the USB port on you
computer: "CONNECTING" will
appear on the screen. The battery
will charge when connected to the
USB jack.
1. Touch Screen
Display
2. Volume Up/Down
3. Lef/Skip/ Search
Buttons
6.
Up Button
7.
5. Power/Lock
of Unit)
4. Microphone (Side You can utilize Windows Media Player 11 to convert music on an
Switch
Menu Button
Center/Play/
Pause Button
8. RightSkip/
Search Down
Button
9. Reset Button
(Hole on Side of
Unit)
10. Headphones
Jack
11. Micro SD
Memory Card
Slot
12. USB Slot
MMP9390/MMP9490/MMP9590
13. USB/Memory
Card Slot Cover
To turn the unit on, slide the Power/Lock switch upward
and then release; the unit will enter Main menu.
To turn the unit off, slide and hold the Powerl Lock switch
upward. Do not release the Powerl Lock switch until the
unit's display turns off.
MEDIA FILES SUPPORTED FORMATS
Audio Formats: MP3, MPEG 1/2/2.5 Layer 3 with a bit rate of 32
320 kbps and WMA files with DRM 10 with a bit rate of 48-192 kbps
Video Formats: AVI-MPEG4 Simple Profile (320x240 resolution
20-24 fps, 385kbps): WMV VC-1 Simple Profile (320x240
resolution, 30fps, 385kbps max)
Photo Format: Baseline JPEGs
Quick Start
audio CD into MP3 or WMA format and transfer files as shown on
pages 18-20 of the digital owner's manual.
INSTALLING THE sOFTWARE:
Please see page 8 of the digital owner's manual for system
requirements, before getting started.
Procedure to Install MediaCoder
1. Insert the installation CD-Rom into the CD Drive; the
installation screen will appear. If the installation screen doesn't
automatically appear, double-click My Computer then double
click on the CD drive, then the installation screen will appear.
After selecting "Install PC Software", click "Install MediaCoder
for Windows".
2. First select the language you want the instructions to appear in.
The "Welcome" screen will appear. Click "Next".
3. The "License Agreement" screen will appear. Select "I Agree".
4. TheInstallation Folder" screen will appear. It is recommended
to keep the folder as is. Then click "Install"; the program will
then instal.
5. After the program is done installing, the "Completing Setup
Wizard" screen will appear. Click "Finish" to end installation.
See page 22 of the digital owner's manual on how to use
MediaCoder.
Procedure to Install Windows Media Player 11: Please see
pages 9 and 10 of the digital Owner's manual.
Procedure to Install AudibleManager: Please see pages 13 and
14 of the digital owner's manual.
TRANSFERRING FILES:
You can download digital music files from the Internet or use
encoding software to convert music that you have on an audio CD
into MP3 or WMA format. Once these files are stored on your
compute, you can easily copy them to your player.
If you have already installed WMP 11 (Windows Media Plaver
11), you can transfer music files (MP3, WMA and/or WMA files with
DRM 10),
photos
and
videos to the player
through
the "Sync"
function of WMP 11. Connect your player to the USB port on your
Computer as shown to the right and see page 20 of the digital
owner's manual for details.
