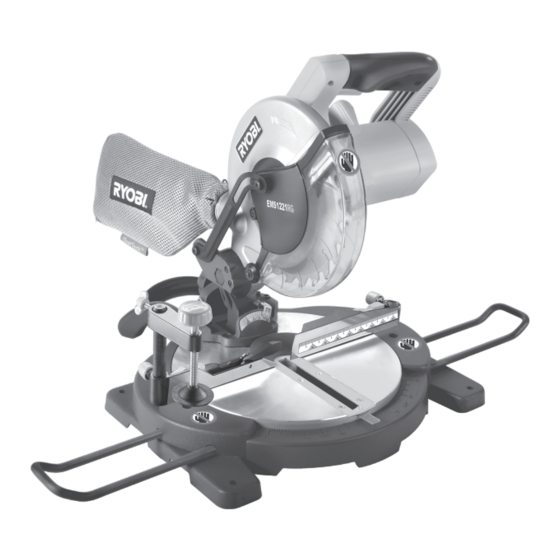

  • Page 1 ORIGINAL INSTRUCTIONS Compound Mitre Saw EMS1221RG...
  • Page 2 Important! It is essential that you read the instructions in this manual before assembling, operating and maintaining the product. Subject to technical modifications.

  • Page 3: General Power Tool Safety Warnings

    Safety Safety, performance, and dependability have been given surfaces, such as pipes, radiators, ranges and top priority in the design of your mitre saw. refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. ■...

  • Page 4: Safety Instructions For Mitre Saws

    Safety power tool uSe and Care or held by hand. If your hand is placed too close to the saw blade, there is an increased risk of injury from ■ do not force the power tool. use the correct power blade contact.
  • Page 5 Safety supported. If the cut-off piece or workpiece tips, it can ■ Always use blades with correct size and shape of lift the lower guard or be thrown by the spinning blade. arbour holes. Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss ■...
  • Page 6 Safety cause hearing loss. adjust the sliding fence or sub-fence to ensure the correct clearance from the blade. ■ Always wear safety goggles when using the machine. It is recommended to wear gloves for handling blades ■ The handle lock must always be engaged when and rough material, plus sturdy non slip shoes to transporting the mitre saw.

  • Page 7: Know Your Product

    14. Link plate For greater safety and reliability, all repairs should be 15. Lower blade guard cover performed by an Authorised Ryobi Service Centre. 16. Bevel angle lock knob 17. Screw for left bevel angle adjustment 18. Rear anti-tip arm/carrying handle 19.
  • Page 8 Safety Wear ear protection Always wear eye protection. Keep hands away from the cutting area and sharp blade. Wear safety gloves Blade rotation direction (shown on saw blade) Blade rotation direction (shown on blade guard) Blade width of cut (Kerf) Number of teeth on this saw blade For cutting wood and analogous material Not for cutting metals...
  • Page 9 Unpacking...
  • Page 10 Know your product Unpacking...
  • Page 11 Getting started Getting started...
  • Page 13 Operation...
  • Page 14 Operation...
  • Page 15 Operation...
  • Page 16 Operation...
  • Page 17 Operation...
  • Page 18 Operation...
  • Page 19 Operation...
  • Page 20 Operation 0˚ - ( +10˚ )
  • Page 21 Maintenance...
  • Page 22 Maintenance...
  • Page 23 Maintenance...
  • Page 24 Maintenance 90˚ 90˚...
  • Page 25 Maintenance 90˚ 90˚ ≠90˚ =90˚ =0˚ ≠0˚...
  • Page 26 Maintenance 90˚ 90˚ 90˚ 90˚...
  • Page 27 Maintenance...
  • Page 28 Maintenance 45˚ 45˚...
  • Page 29 Maintenance 45˚ 45˚ =45˚ ≠45˚...
  • Page 30 Maintenance =45˚ ≠45˚...
  • Page 31 Maintenance 10˚ 10˚...
  • Page 32 Maintenance 0˚ - ( +10˚ ) 10˚ 10˚ =10˚ ≠10˚...
  • Page 33 Maintenance =10˚ ≠10˚...
  • Page 34 Maintenance Maintenance...

  • Page 35: Product Specifications

    SpeCIfICatIonS Mitre saw Model EMS1221RG Net weight 8.5 kg Blade diameter 210 mm Arbor hole 16 mm Blade teeth Width of cut 2.8 mm No-load speed 5,000 min (RPM) Input 240V ~ 50 Hz Power 1,200 W Cutting capacity: Mitre 0°...
