Please read through this operation manual before using and installation to avoid damage of the machine and personal injuries. The SAL-300EB series use a high-speed motor in this lightweight and compact unit. With superior suction power and easy installation. It is particularly suitable for conveying new materials.
Chapter 12, which contains service instructions intended for service engineers. Other chapters contain instructions for the daily operator. Any modifications of the machine must be approved by SHINI in order to avoid personal injury and damage to machine. We shall not be liable for any damage caused by unauthorized change of the machine.
1.2.1 Loading Capacity Height:4m Bulk density:0.65kg/L Frequency:50Hz Horizontal distance (m) Height:4m Bulk density:0.65kg/L Frequency:60Hz Horizontal distance (m) Picture 1-2: Loading Capacity 1.3 Safety Regulations Please abide by the safety guide when you operate the machine so as to prevent damage of the machine and personal injuries. Attention! All electrical components should be installed by qualified electricians.
Page 8
1) SAL series hopper loader are packed in paper cartons. Handle with care when to move the machine by hands. 2) Do not rotate the machine and avoid collision with other objects during transportation to prevent improper functioning. 3) The structure of the machine is well-balanced, although it should also be handled with care when lifting the machine for fear of falling down.
The following statements clarify the responsibilities and regulations born by any buyer or user who purchases products and accessories from Shini (including employees and agents). Shini is exempted from liability for any costs, fees, claims and losses caused by reasons below: 1) Any careless or man-made installations, operation and maintenances upon machines without referring to the manual prior to machine using.

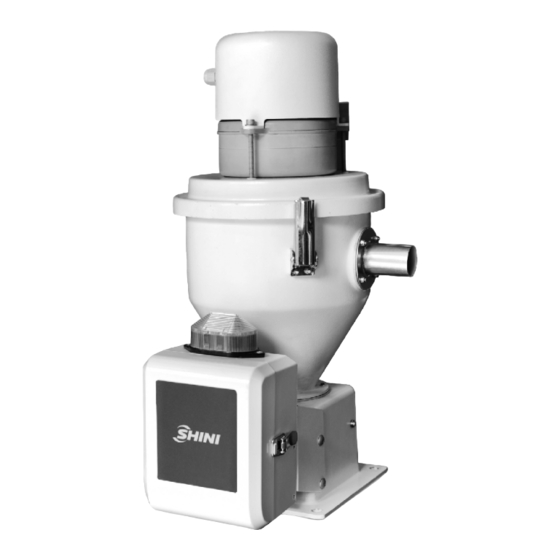

2. Structure Characteristics and Working Principle 2.1 Working Principle SAL-300EB is suitable for conveying plastic particles. The blower runs and sucks the air out from the hopper to generate the vacuum. Thus, the air is sent inside the hopper as the air flows under negative pressure.
2) Connect the feed port of the SAL-300EB (“Budget” Hopper Loader) with the steel wire hose and connect the other end of the steel wire hose to the feed port under the dryer and the feed port under the material storage tank respectively.
1.SAL-EB 2.SHD-E 3.MST Picture 3-1: Installation Methods 3.2 Power Connection 1) Make sure the voltage and frequency of the power source comply with those indicated on the manufacturer nameplate that attached to the machine. 2) Power cable and earth connection should conform to your local regulations.
4. Application and Operation 4.1 Machine Start and Stop 1) Press the RUN/STOP key to start the machine for feeding. Press the RUN/STOP key again to stop the machine. 2) Press the SET key to select the mode (C1, C2, C3) first, and then press the INC/DEC key within 3 secs.
5. Troubleshooting Failures Possible Causes Solutions Turn on main power switch and Did not turn on main power or control switch or poor connection of control switch and make sure the switches Motor does not work long they keep good contact. after material discharged Poor connection of microswitch or Adjust or replace...
6. Maintenance and Repair All repair work should be done by professionals to prevent personal injuries and damages of the machine. 6.1 Service Life of Product Key Part Name of the Parts Service Life Motor Above 5 years Contactor Above 100,000 act 6.2 Hopper 1) Loose the snap hook, and take out hopper cover.
as temperature rising, reduced air volume, higher noise level and vibration. All the above factors are liable to cause mechanical problems. 2) The bearing, seal ring and silencer are consumable parts. They should be replaced after a period of time. The fans, covers, and metal screen also need to be replaced when necessary.
