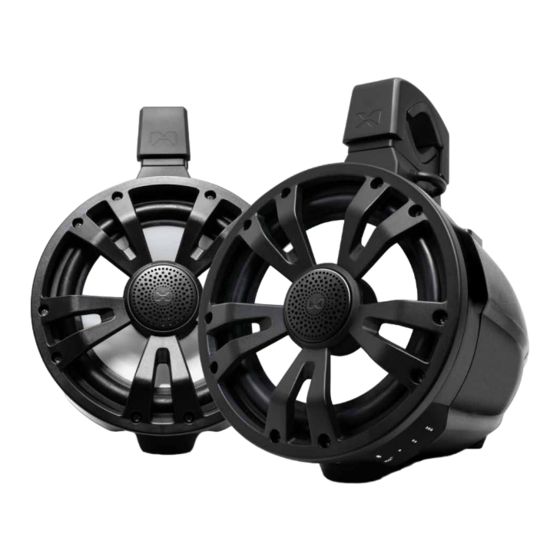

EcoxGear SoundExtreme ExtremeTower TA8 Hardware Manual

8 inch tower speakers
Hide thumbs Also See for SoundExtreme ExtremeTower TA8:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
PLEASE READ
BEFORE UNBOXING
BEFORE you start unpacking your ExtremeTower
Speakers, PLEASE READ this Hardware Guide, then read
the ExtremeTower Speakers Installation and User Guides.
ExtremeTower TA8 | Models: SEI-ETAMP7700...20
8 inch Tower Speakers
Hardware Guide
1
Bluetooth Amplified Tower Speaker
1
Passive Tower Speaker

Advertisement

loading
Need help?

Need help?

Do you have a question about the SoundExtreme ExtremeTower TA8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EcoxGear SoundExtreme ExtremeTower TA8

Summary of Contents for EcoxGear SoundExtreme ExtremeTower TA8

  • Page 1 PLEASE READ BEFORE UNBOXING BEFORE you start unpacking your ExtremeTower Speakers, PLEASE READ this Hardware Guide, then read the ExtremeTower Speakers Installation and User Guides. ExtremeTower TA8 | Models: SEI-ETAMP7700...20 8 inch Tower Speakers Hardware Guide Bluetooth Amplified Tower Speaker Passive Tower Speaker...

  • Page 2: Hardware Guide

    Hardware Guide ExtremeTower Packaging Layout Mounting parts and tools are in the top level and the cables are located in the bottom level of the protective foam packaging. Top Level: Mounting Parts and Tools 1. Clamps 3. Thick Rubber Insert & Bolt Sets ·...
  • Page 3 Hardware Guide 5. Thin Rubber Insert 6. Mounting Tools & Bolt Sets · Allen Wrench (1 pc) · Thin Rubber Inserts (2 pcs) · Electrical Tape (1 pc) · Long Mounting Bolts (4 pcs) · Heat-Shrink Tubing (6 pcs) · Anti-Loose Spring ·...
  • Page 4 Hardware Guide The ExtremeTower TA8 Set includes two different types of speakers: 1. One Passive Speaker. 2. One Amplified Speaker with built-in amplifier and LEDCast LED controller, which powers and controls the LED Party Lights on both speakers. Important: Do NOT connect this product to any other manufacturers’ LED controller.
  • Page 5 Hardware Guide Speaker Power and Signal Wiring Cable Options There are two power and signal connection jacks on the speakers: Deutsch Connector Jack Aviation Connector Jack 1. A round Aviation Connector Jack is inside the speaker’s Base-Mount. 2. A square Deutsch Connector Jack is behind the speaker’s Base-Mount, behind a rubber cap.

  • Page 6: Cable Set

    Hardware Guide 2. Only ONE set of cables (Aviation or Deutsch) can be used at a time. Do NOT wire the speakers with BOTH the Aviation Cables and Deutsch Cables. Aviation Cable (Round Connector) Deutsch Cable (Square Connector) CABLE SET CABLE USE SET INCLUDES Aviation Cable Set...
  • Page 7 Hardware Guide Mounting Options 1. Rubber Inserts — The Rubber Inserts are included to allow for best fit on different bar sizes. Your speakers include two Rubber Insert sets: RUBBER SET RUBBER USE SET INCLUDES Rubber Insert Set Fit 2.5” to 3.0” bar size. ·...
  • Page 8 Hardware Guide · Locking Screw Latch with a Quick-Release Knob – A tool is NOT required to tighten or untighten the latch. This option is more convenient to mount and unmount your speaker for portable use or theft deterrence. It is suggested that you use the rear Deutsch Connection Cable option with the Quick Release Knob as the round Aviation Cable option is difficult to connect and disconnect multiple times.
