  • Page 1 FRONT PAGE R18SPR130...

  • Page 2: Intended Use

    ■ When operating a power tool outdoors, use an IMPORTANT! extension cord suitable for outdoor use. Use of a It is essential that you read the instructions in this manual cord suitable for outdoor use reduces the risk of electric before assembling, operating, and maintaining the shock.
  • Page 3 Power tools are dangerous in the hands of untrained CORDLESS WEED SPRAYER SAFETY WARNINGS users. ■ Always check for and repair leaks before using the ■ Maintain power tools and accessories. Check for product. misalignment or binding of moving parts, breakage ■...

  • Page 4: Maintenance

    ■ Never blow through nozzles or other components by ■ After each use, check all parts of the product for leaks. mouth. Return the product to an authorised service centre for repair if necessary. ■ Avoid contact with chemicals. Immediately change clothing that are contaminated with plant control ■...

  • Page 5: Symbols On The Product

    SYMBOLS ON THE PRODUCT Safety alert Read and understand all instructions before operating the product. Follow all warnings and safety instructions. Wear eye protection. Wear appropriate respiratory mask. Do not expose the product to rain or damp conditions. Wear non-slip, heavy duty gloves. Wear non-slip safety footwear when using the product.

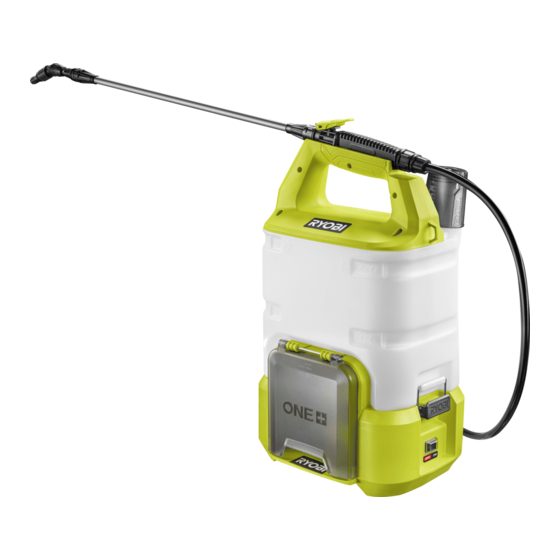

  • Page 7 R18SPR130 Elbow Trigger with lock-on Spray wand handle Spray tank cover / measuring cup Hang tag Spray wand Battery door Latch (x2) On/Off button Hose Protection hood Harness Operator's manual Battery pack Charger Know your product...
  • Page 8 Always wear safety goggles or safety Install the spray wand to the spray wand handle. Turn the spray wand clockwise glasses with side shields, a dust mask, to secure. non-slip, heavy-duty protective gloves, and non-skid, protective footwear that will protect your feet and improve your footing on slippery surfaces when operating the product.
  • Page 9 Attach the harness to the harness hangers on each side of the product. Install the nozzle or the protection hood to the spray wand. Turn the nozzle or the protection hood clockwise to secure. Open the battery door. Install the battery pack. Make sure that Close the battery door.
  • Page 10 Replacing the seals Operating the p.11 p.xxx p.14 Title header product Cleaning the Storing the product p.17 p.20 product...

  • Page 11: Operating The Product

    OPERATING THE PRODUCT 1. Install the spray wand to the spray wand handle. Turn the spray wand coupling clockwise to secure. 2. Perform one of the following: a. Install the elbow to the spray wand. Turn the elbow clockwise to secure. Then install the nozzle to the elbow.
  • Page 12 5. Turn spray tank cover counterclockwise and remove it from the product. 6. Fill the spray tank with the preferred amount of liquid (up to 7 litres). 7. Reinstall the spray tank cover and turn clockwise to secure. 8. Open the battery door. 9.
  • Page 13 10. Close the battery door. 11. Press the on/off button to turn on the product. 12. Wear the harness. 13. Squeeze the trigger to start spraying. WARNING: Do not smoke, eat, or drink while using the product. Do not spray in the direction of people or animals.

  • Page 14: Replacing The Seals

    REPLACING THE SEALS 1. Open the battery door. 2. Press the latches on the battery pack and remove it from the product. Close the battery door. 3. Turn the coupling clockwise and remove the spray wand. 4. Turn the coupling on the spray wand handle counterclockwise and remove the hose from the spray wand handle.
  • Page 15 6. Turn the handle cap clockwise and remove the handle cap and spring. Remove the current seal from the handle cap and dispose of it properly. 7. Push the top of the tube to remove it from the spray wand handle. 8.
  • Page 16 10. Install the tube into the spray wand handle. 11. Install a new seal in the handle cap. Install the spring and handle cap into the spray wand handle. Turn the handle cap counterclockwise to tighten. 12. Install the trigger with lock-on to the spray wand handle.

  • Page 17: Cleaning The Product

    CLEANING THE PRODUCT 1. Open the battery door. 2. Press the latches on the battery pack and remove it from the product. 3. Close the battery door. 4. Turn spray tank cover counterclockwise and remove it from the product. 5. Drain the contents of the spray tank through the fill area.
  • Page 18 6. Turn the nozzle counterclockwise to loosen. Remove the nozzle. Insert a fine needle into the thread hole of the nozzle to remove any blockage or residue buildup. 7. Clean the nozzles and spray tank cover with a stiff brush and water. 8.
  • Page 19 11. Open the battery door. Install the battery pack and make sure that the latches on the battery pack click into place. Close the battery door. 12. Press the on/off button and squeeze the trigger to start spraying. 13. Spray until the spray tank is completely empty.

  • Page 20: Storing The Product

    40°C p.17 STORING THE PRODUCT 1. Clean the product before storing. 2. Install the spray wand handle into the handle housing. WARNING: Make sure to empty out the contents of the tank completely before storage. 3. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children.

  • Page 21: Product Specifications

    RB18L15, RB18L15A, RB18L20, RB18L20A, RB18L15B, RB18L25, RB18L25A, RB18L30, RB18L30A, RB18L40, RB18L40A, RB1840T, RB18L50, RB18L50A, RB1815C, RB18L60, RB18L60A, RB18L90, RB18L90A, RB1815C, RB1820C, RB1825C, RB1840C, RB1850C, RB1840X, RB1850X, RB1860X NOTE: Visit your local special orders desk or contact RYOBI customer service for replacement parts.
  • Page 24 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 961087624-01...
