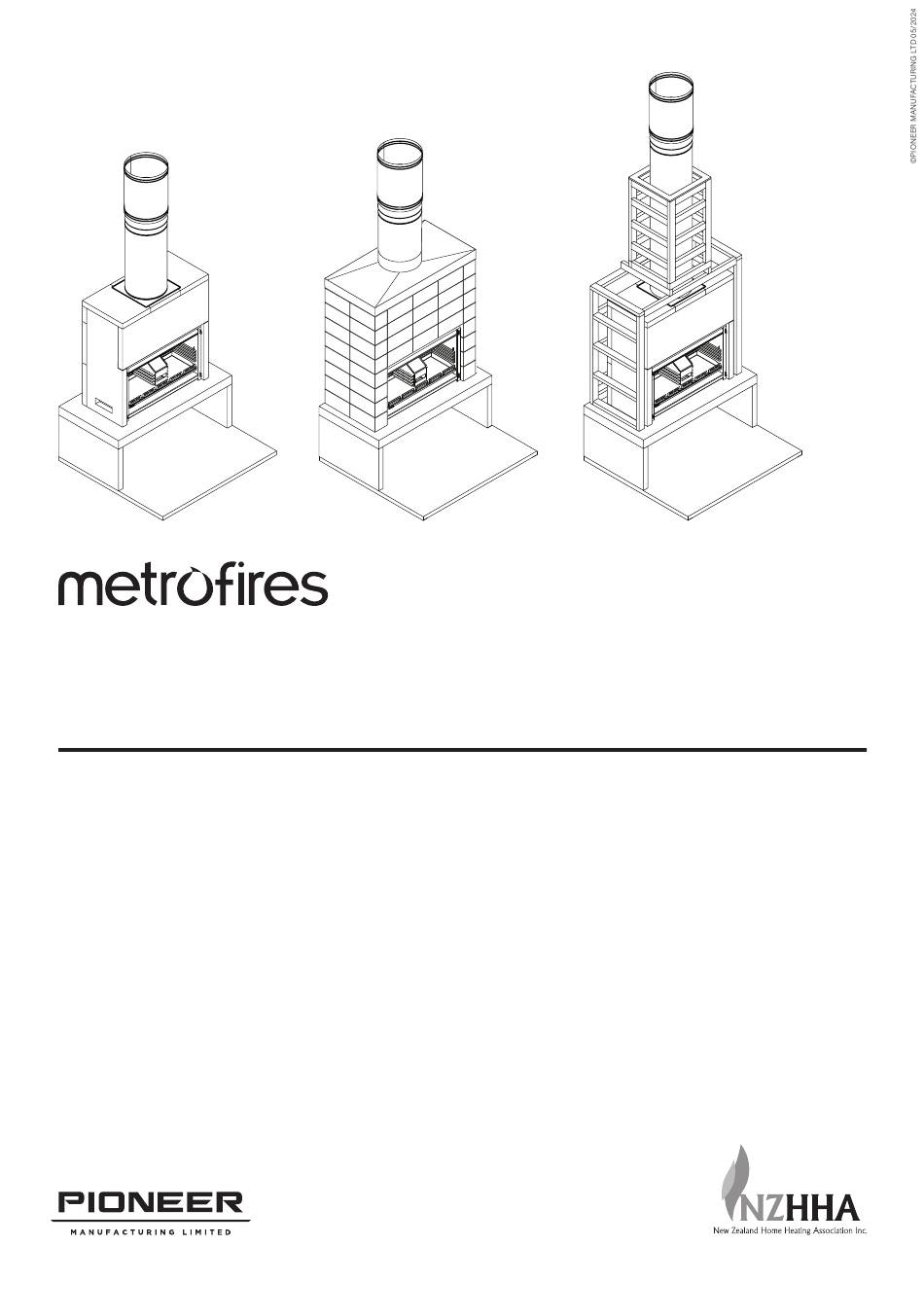

OUTDOOR 1200 INSERT
Outdoor fire installation and operation manual
Important installation information ...................................................................................2
Installation options ................................................................................................................... 3
Installation stages .................................................................................................................4-5
AAC/Masonry enclosure installation ........................................................................... 6
Timber framed enclosure installation ...........................................................................7
Firebox assembly and installation .................................................................................. 8
AAC heat cell construction ..................................................................................................9
Floor protector requirements ...........................................................................................10
19 Oropuriri Road, New Plymouth 4312
info@metrofires.co.nz | www.metrofires.co.nz
Enclosure venting ...................................................................................................................10
Clearances and specifications .........................................................................................11
Flue installation .........................................................................................................................12
Important operation information ....................................................................................16
Cleaning and maintenance ...............................................................................................18
Metro Fires warranty .............................................................................................................19
Outdoor parts and accessories .....................................................................................20
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for metrofires PIONEER NZHHA 1200
Summary of Contents for metrofires PIONEER NZHHA 1200
-
Page 1: Table Of Contents
Timber framed enclosure installation ................7 Cleaning and maintenance ....................18 Firebox assembly and installation .................. 8 Metro Fires warranty ......................19 AAC heat cell construction ....................9 Outdoor parts and accessories ..................20 Floor protector requirements ...................10 19 Oropuriri Road, New Plymouth 4312 info@metrofires.co.nz | www.metrofires.co.nz... -
Page 2: Important Installation Information
IMPORTANT INSTALLATION INFORMATION WARNING! Important Information CAUTION! Important Information WE HIGHLY RECOMMEND YOU READ THIS ENTIRE MANUAL THE FIREPLACE MUST BE MAINTAINED AND OPERATED AT AS INCORRECT OPERATION, MISUSE AND/OR LACK OF ALL TIMES IN ACCORDANCE WITH THIS MANUAL MAINTENANCE WILL VOID THE WARRANTY •... - Page 3 INSTALLATION OPTIONS WARNING! Important Information CAUTION! Important Information • The Outdoor 1200 Insert is for outdoor use only and cannot • DO NOT attempt to lift the fire by yourself. The Outdoor 1200 be installed inside the home. Confirm with the local building is extremely heavy weighing approximately 240kgs including authority or your Metro stockist for the outdoor fire regulations the gather.

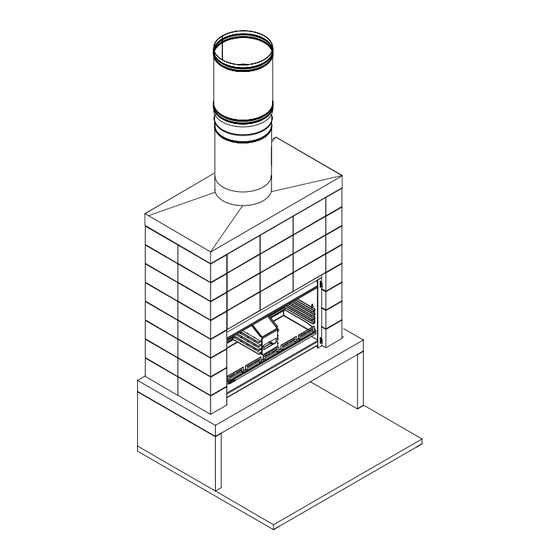

- Page 4 MASONRY ENCLOSURE INSTALLATION STAGES All masonry construction and cladding must be constructed to suit CAUTION! Important Information an outdoor environment as per the NZ building code. Note: A custom made chimney cap is required to suit the finished size of your masonry Installation of the Outdoor 1200 Insert needs to be completed structure (not included).
- Page 5 TIMBER ENCLOSURE/AAC HEAT CELL INSTALLATION STAGES All timber construction and cladding must be constructed to suit CAUTION! Important Information an outdoor environment as per the NZ building code. Note: The liner adaptor plate is available to Installation of the Outdoor 1200 Insert needs to be completed purchase as an optional extra.
- Page 6 AAC/MASONRY ENCLOSURE INSTALLATION AAC ENCLOSURE SPECIFICATIONS (mm) MASONRY ENCLOSURE SPECIFICATIONS (mm) Item Description Dimension Item Description Dimension Overall width 1440 Cavity opening width 1290 Overall depth Cavity opening depth (minimum) Overall height 1500 Cavity opening height Opening width 1290 Hearth (floor protector width) 1880 Opening height Hearth (floor protector projection)
- Page 7 TIMBER ENCLOSURE INSTALLATION AAC HEAT CELL PANEL SIZES (mm) MINIMUM FRAMING & HEAT CELL CLEARANCES (mm) Item Description Quantity Item Description Dimension 1425 x 600 x 75 AAC panel (75x600mm notch) Framed opening width 1490 1440 x 600 x 75 AAC panel Framed opening internal depth 720 x 226 x 75 AAC panel Framed opening height...
- Page 8 FIREBOX ASSEMBLY AND INSTALLATION Installation location Evaluate the location for your outdoor fire, surroundings, and neighbouring properties. The land’s topography will have a bearing on how the wind and overall environment may affect the fire and flue system. Consider surrounding trees, neighbouring property boundaries, buildings, or wooden fences.
- Page 9 AAC HEAT CELL CONSTRUCTION AAC HEAT CELL PANEL SIZES (mm) CAUTION! Important Information Item Description Quantity • The Outdoor 1200 Insert firebox is recessed 40mm into the 1425 x 600 x 75 AAC panel (75x600mm notch) AAC heat cell once construction is complete •...
-
Page 10: Enclosure Venting
HEARTH (FLOOR PROTECTOR) Floor protector requirements depend upon the elevation of the fire above floor level and the type of substrate beneath the installation. Firebox installation height >500mm (X) Installation heights of 500mm or more above floor level only require an ash hearth floor protector which must project a minimum of 500mm out from the front face of the firebox (D). -
Page 11: Clearances And Specifications
Specifications were correct at the time of printing but may alter and those detailed within should be used only as a guide. Full assembly and installation instructions are detailed in the Outdoor Installation manuals available at metrofires.co.nz. If in doubt, please consult your local Metro Fires stockist or visit metrofires.co.nz. - Page 12 FLUE KIT COMPONENTS WARNING! Important Information CAUTION! Important Information • We strongly recommend using a qualified installer to assemble • Mixing of appliance or flue-system components from different the fire and erect the flue system on your Outdoor 1200 insert sources or modifying the dimensional specification or •...
- Page 13 FLUE INSTALLATION OPTIONS AAC enclosure flue installation Masonry enclosure flue installation Timber enclosure flue installation This installation requires the Outdoor 1200 This installation requires the Outdoor 1200 This installation requires the Outdoor 1200 Insert flue kit. The AAC enclosure can be Insert flue kit.
-
Page 14: Flue Installation
FLUE INSTALLATION Flue penetration - Chimney chase Place the 350mm flue into the flue outlet then lower the 400mm liner down over the top of the 4 x threaded tabs. Line up the fixing holes This installation involves the construction of an ‘enclosure’ extending and attach using the 4 x M8x16mm stainless dome headed sockets through the roof line finished with a custom made chimney cap flashing to and flat washers and tighten. - Page 15 Specifications were correct at the time of printing but may alter and those detailed within should be used only as a guide. Full assembly and installation instructions are detailed in the Outdoor Installation manuals available at metrofires.co.nz. If in doubt, please consult your local Metro Fires stockist or visit metrofires.co.nz.
-
Page 16: Important Operation Information
WARNING! Important Information CAUTION! Important Information WE HIGHLY RECOMMEND YOU READ THIS ENTIRE MANUAL THE FIREPLACE MUST BE MAINTAINED AND OPERATED AT AS INCORRECT OPERATION, MISUSE AND/OR LACK OF ALL TIMES IN ACCORDANCE WITH THIS MANUAL MAINTENANCE WILL VOID THE WARRANTY •... - Page 17 OPERATING YOUR FIRE Cooking setup (standard) WARNING! Important Information The ember maker is located in the centre of the Outdoor 1200 to ALL SURFACES WILL GET VERY HOT. DO NOT TOUCH OR allow the stainless steel cooking PLACE ANY COMBUSTIBLE COMPONENTS ON OR AGAINST grills and cast iron cookplate to THE FIREPLACE DURING OPERATION.
-
Page 18: Cleaning And Maintenance
CLEANING AND MAINTENANCE Replacement parts CAUTION! Important Information Your Outdoor 1200 must be regularly maintained and we recommended it is also serviced annually. If a wood fire is not regularly maintained and • DO NOT attempt to clean or maintain the fire when in use or serviced, the life span will be reduced. -
Page 19: Metro Fires Warranty
WARRANTY • The Outdoor 1200 must be regularly maintained and we recommend CAUTION! Important Information it is also serviced annually. Proof of servicing may be required. If a wood fire is not regularly maintained and serviced, the life span will Your Outdoor fire must be regularly maintained and we recommend be reduced. -
Page 20: Outdoor Parts And Accessories
REPLACEMENT PARTS • HEATING ACCESSORIES • WETBACK SYSTEMS • CATALOGUES AND INSTALLATION MANUALS • NES TEST CERTIFICATES • MAINTENANCE AND SERVICING • PRODUCT VIDEOS AND HOW-TO GUIDES • TROUBLESHOOTING 19 Oropuriri Road, New Plymouth 4312 • FAQ’S info@metrofires.co.nz | www.metrofires.co.nz...
