curt 55245 Manual

55245
LEXUS LX 470
LEXUS RX 300
TOYOTA 4RUNNER
TOYOTA HIGHLANDER
TOYOTA LANDCRUISER
1. Locate the vehicles factory tow plug
location (S6) behind the bumper. On some
vehicles the tow plug will be hidden under a
black box. remove the 10 mm hex bolts and
temporarily remove cover to reveal the tow
plug.

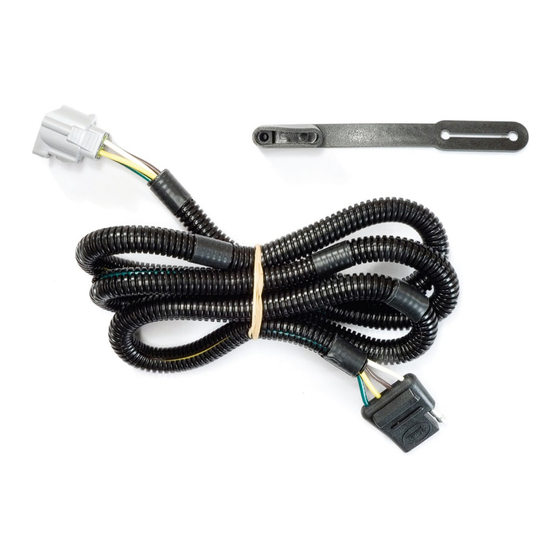

2. Insert harness connector into vehicle
harness. Route the 4-flat to the center of
the vehicle and secure in a convenient out
of the way location.
3. On the Highlander and RX300 locate the
vehicles fuse panel on the drivers side of
the engine compartment. Insert a 20 amp
fuse in the location marked towing.
4. Re-install anything removed during
installation.
WARNING!
Verify miscellaneous items that may be
hidden behind or under any surface before
drilling to avoid damage and/or personal
injury.
01/26/09
