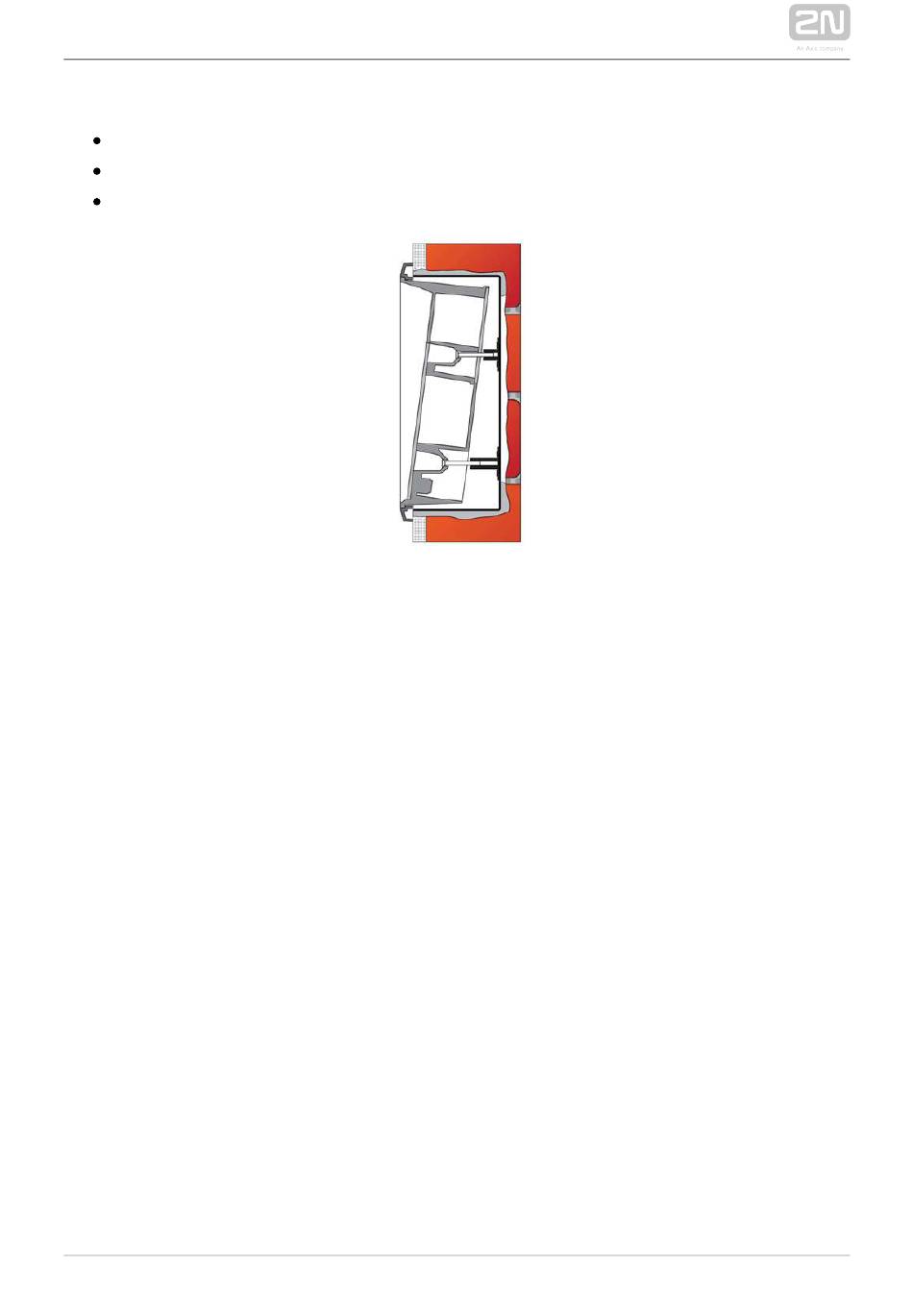

What You Need:
The brick flush mounting box, Part No. 9151001
The metal frame, Part No. 9152000
Hole: (132 × 223 × 83) mm
If you use the brick flush mounting box, follow the instructions below:
Make a hole using the template.
1.
Suppose that all the required cables have been carried into the hole.
2.
Put the intercom inside and place the set onto the hole to make sure that the
3.
hole is deep enough and the uneven edge is perfectly covered with the frame.
If the hole is perfect, wall in the flush mounting box.
4.
Remove the front panel from the intercom.
5.
Select the holes for cable supply. Insert the blanks into the other holes. Apply
6.
the cable bushings or a suitable sealant to prevent penetration of insects or
water. You can also insert the small bushing in the intercom bottom hole.
Put the frame on the intercom.
7.
Place the intercom into the flush mounting box while introducing the cables.
8.
Leave some of the cables inside the unit as a reserve and the rest under the
intercom bottom.
Insert the supplied screws in the side mounting holes making sure that they
9.
penetrate into the flush mounting box nuts. Tighten all the screws properly. Tip:
The screw tightening sequence may affect the intercom position.
We recommend to seal the frame – wall gap with a silicone or another sealant
10.
to avoid wall dampening as a result of water leakage.
