Boss Snowplow VBX+ 1.5 yd Owner's Manual

V-box spreader
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

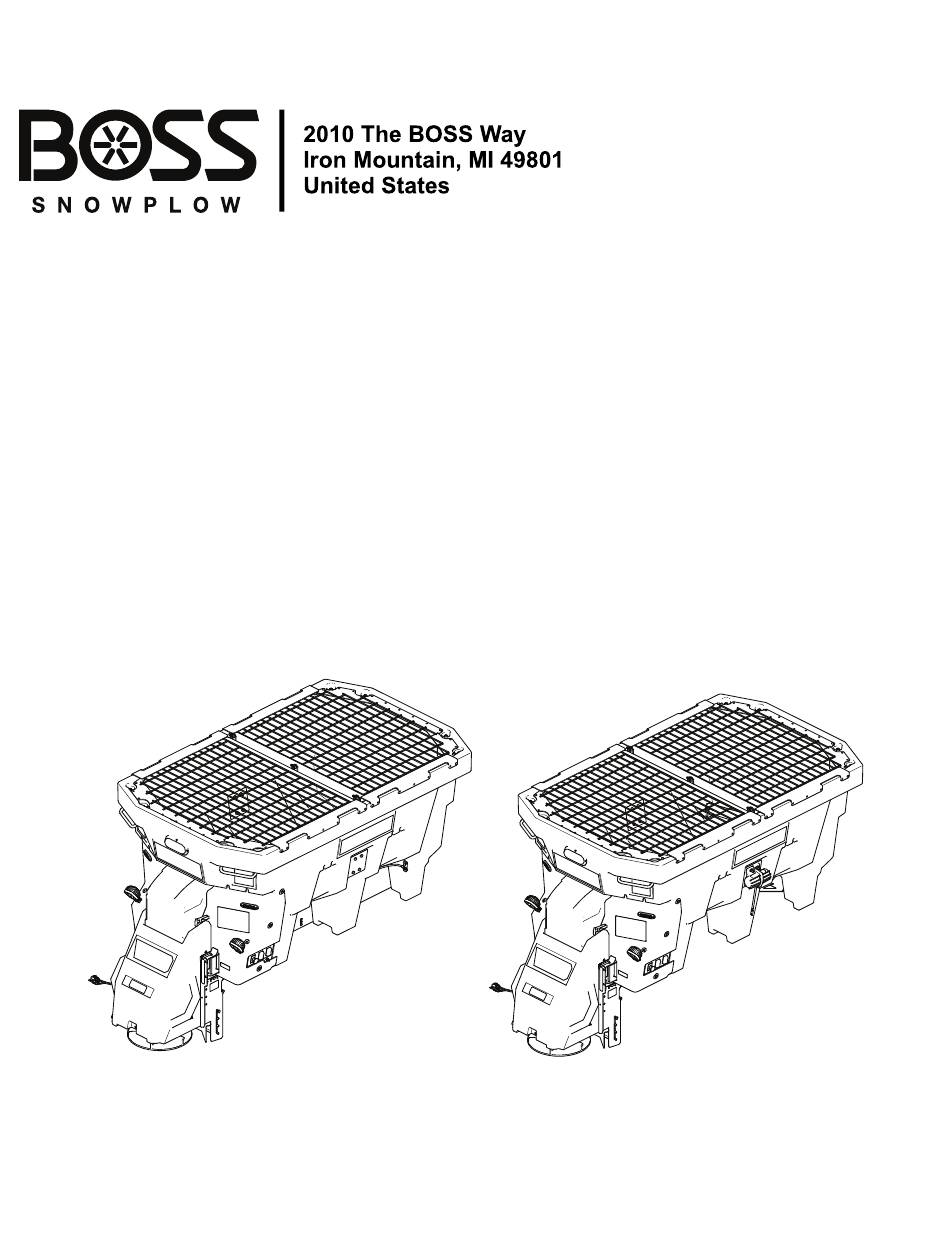

Owner's Manual
VBX+ 1.5, 2, or 3 Yard V-Box Spreader
Part No. VBS26150—Serial No. 400000000 and Up
Part No. VBS26160—Serial No. 400000000 and Up
Part No. VBS26200—Serial No. 400000000 and Up
Part No. VBS26210—Serial No. 400000000 and Up
Part No. VBS26300—Serial No. 400000000 and Up
Part No. VBS26310—Serial No. 400000000 and Up
Register at www.bossplow.com.
Original Instructions (EN)
Form No. VBS26471 Rev A
*VBS26471*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VBX+ 1.5 yd and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Boss Snowplow VBX+ 1.5 yd

Summary of Contents for Boss Snowplow VBX+ 1.5 yd

  • Page 1 Form No. VBS26471 Rev A Owner's Manual VBX+ 1.5, 2, or 3 Yard V-Box Spreader Part No. VBS26150—Serial No. 400000000 and Up Part No. VBS26160—Serial No. 400000000 and Up Part No. VBS26200—Serial No. 400000000 and Up Part No. VBS26210—Serial No. 400000000 and Up Part No.
  • Page 2 BOSS Products limited consumer warranty and BOSS Products commercial warranty policies are located at www.bossplow.com. See current patents at http://www.ttcopats.com/. WARNING CALIFORNIA Proposition 65 Warning Use of this product may cause exposure to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

  • Page 3: Table Of Contents

    Safety-Alert Symbol Contents The safety-alert symbol (Figure 2) shown in this Safety-Alert Symbol..........3 manual and on the machine identifies important safety Safety ............... 4 messages that you must follow to prevent accidents. Preparation............4 Operation............4 Safety and Instructional Decals ......5 Setup ................

  • Page 4: Safety

    Operation Safety • Never put any part of your body between the spreader and the vehicle. Preparation • When transporting the spreader, ensure that it is • Read the Owner’s Manual before operating or properly secured. Instructions are available at servicing the spreader.

  • Page 5: Safety And Instructional Decals

    Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decalmsc26258 MSC26258 1. Warning—read the Owner’s Manual. 8. Warning—do not stand or ride on the machine. 2.
  • Page 6 decalmsc22604 MSC22604 1. Emergency shut off—pull up to allow the machine to run; 4. Strobe lights—on/off press down to shut off the machine. 2. Work lights—on/off 5. Press to change the strobe-light flashing pattern. 3. Press and hold to unload material. Pintle Models Only decalmsc26107 MSC26107...
  • Page 7 decaltgs05896 TGS05896 1. Important—read the 2. The lock pin must be fully Owner’s Manual. engaged before using the machine. decalvbs14305 VBS14305 1. Cutting/dismemberment hazard; spinner—keep your fingers and hands clear of the spinner.

  • Page 8: Setup

    Each of the VBX+ models require a different minimum (page truck-bed length. Refer to the minimum truck-bed lengths below: • VBX+ 1.5 yd: 1.68 m (66 inches) minimum truck-bed length • VBX+ 2 yd: 2.0 m (78 inches) minimum truck-bed length •...

  • Page 9: Adjusting The Slide Stop

    Adjusting the Slide Stop Installing the Tie-Down D-Rings Optional You can adjust the slide stop of the spreader 15.2 cm WARNING (6 inches) so that the spreader does not extend past Using a drill without proper eye protection the truck box. may allow debris to enter the eye, causing Remove and retain the 4 carriage bolts and 4 injury.

  • Page 10: Building And Installing The Spacer

    Building and Installing the Install the D-rings as shown below and torque the bolts to 28 N·m (19.7 ft-lb). Spacer Measure the distance from the front of the truck box to the spreader legs. Using 3.8 x 18.4 cm (1-1/2 x 7-1/4 inch) lumber, build the spacer as shown below.

  • Page 11: Installing The Spinner Assembly

    Installing the Spinner Connect the ratchet straps to the strap bars around the upper edge of the spreader. Assembly On the back of the spreader, cross the straps and attach them to the D-rings on the opposite Attach the adjustment assembly to the spinner side.

  • Page 12: Checking The Installation

    g491760 Figure 12 Connect the wire harness. Checking the Installation For pintle chain models, check the pintle chain conveyor tension; refer to Adjusting the Pintle-Chain Conveyor Tension (page 29). Check that the unit type listed on the controller display matches your machine type; refer to the Main Screen (page 15) section.

  • Page 13: Product Overview

    Product Overview g460751 Figure 13 1. Work light 7. Hopper cover 2. Strobe light 8. 12 VDC vibrator (auger models only) 3. Emergency stop 9. Back cover access hatch (auger model shown) 4. Work-light/dump switch 10. Front cover access hatch 5.

  • Page 14: Controls

    Controls Strobe-Light Switch The strobe-light switch activates the strobe lights. Become familiar with all the controls before you operate the spreader. Work-Light and Dump Switch CAUTION When outside of the vehicle cab, this machine produces sound levels that can cause hearing loss through extended periods of exposure.

  • Page 15: Spreader Controller

    Spreader Controller work lights only, pressing a second time will turn on strobe lights only, pressing a third time will turn The spreader controller shows information about your on the work lights and strobe lights, and pressing machine. Figure 16 Figure 17 illustrate the main a fourth time will turn lights off.
  • Page 16 Spreader Controller Icon Descriptions Display Sub-Menu Stuck button Menu Item Description Adjusts the brightness of the RIGHTNESS Dump mode display. Adjusts the contrast of pixels ONTRAST Low battery on the display. Adjusts the length of inactive NACTIVITY Motor cooling time before the display enters sleep mode.
  • Page 17 Spreader Sub-Menu Menu Item Description Changes the control method EED AND for the feeder and spinner motors. The different controls are as follows: • : controls the feeder in kg/min (lb/min) and the spinner in meters (feet). The materials and job counters are activated in this mode.

  • Page 18: Specifications

    Specifications Note: Specifications and design are subject to change without notice. VBX+ 1.5 yd VBX+ 2 yd VBX+ 3 yd Length 2.4 m (94 inches) 2.9 m (115 inches) 3.1 m (123 inches) Hopper height 97 cm (38 inches) 97 cm (38 inches) 124.5 cm (49 inches)

  • Page 19: Operation

    Operation Note: Determine the left and right sides of the machine from the normal operating position. Adjusting the Height of the Spinner Assembly You can adjust the spinner assembly height in 5 cm (2 inches) increments up to 15.2 cm (6 inches) to account for vehicles with higher beds.

  • Page 20: Loading The Spreader

    Loading the Spreader Operating the Spreader Important: Only use dry salt, sand, sand/salt, DANGER gravel, or cinder/salt mixes in the spreader. Other materials could cause damage to the machine. Hands, feet, and clothing can get caught in the moving parts of the spreader and cause The density of materials that can be loaded into the serious bodily injury and loss of limbs.
  • Page 21 Press the S button to activate the spreader. TART Note: Always check for bystanders before starting the spreader. • While spreading, you can press the B LAST button to momentarily increase the speed of the feed and spinner motors. • While spreading, the upper right corner displays a live counter for the amount of material dispensed at the active job.
  • Page 22 Rate Control Reference Charts Pre-Calibrated Material Counter Charts The spreader has 10 jobs that can be selected and reset through the menu. Each spreader has 4 pre-calibrated materials with counters that cannot be reset; refer to the model-specific tables below. Auger Models Only: Material Type Maximum Flow Rate...
  • Page 23 Auger Models Only: Material Calibration Ranges (lb/min) g493027 Figure 22 The dark gray or black ranges represent S The light gray ranges represent SALT Pintle Models Only: Material Calibration Ranges (lb/min) g493006 Figure 23 The dark gray or black ranges represent GRAVEL The light gray ranges represent SALT...
  • Page 24 Material Coverage Spreading Charts Use these charts as an approximate guideline only. Other factors, such as weather conditions, spreader operation, and the condition of material affects spreader performance. See the tables below for the material coverage at various speeds. Speed: 5 km/h Spread Width 10 m 12 m...

  • Page 25: Calibrating The Spreader

    Speed: 10 mph Spread Width 8 ft 16 ft 24 ft 32 ft 40 ft 50 lb/min 7.1 lb/1,000 ft 3.6 lb/1,000 ft 2.4 lb/1,000 ft 1.8 lb/1,000 ft 1.4 lb/1,000 ft 100 lb/min 14.2 lb/1,000 ft 7.1 lb/1,000 ft 4.7 lb/1,000 ft 3.6 lb/1,000 ft 2.8 lb/1,000 ft...

  • Page 26: Freeing A Clog

    Freeing a Clog Unloading the Spreader Important: Do not leave material in the hopper as WARNING it could damage the machine. Moving parts on the spreader can entangle Position the spreader in the area where you hands and cut or dismember fingers. want to deposit the material.

  • Page 27: Removing The Spinner Assembly

    Removing the Spinner Assembly Position the spreader over a flat, dry surface. Unplug the spinner harness from the main wire harness. DANGER The spinner assembly is heavy and could cause serious injury if dropped. Ensure that your footing is stable, and avoid removing the spinner assembly near slippery or uneven surfaces.

  • Page 28: Operating Tips

    Operating Tips • Know the area in which you are working; hidden obstructions such as curbs, sidewalks, and pipes can damage the spreader or vehicle. • Do not let the ice build up; always start as soon as possible. • Always wear your seatbelt when spreading.

  • Page 29: Maintenance

    Maintenance WARNING Failure to properly maintain the machine could result in premature failure of machine systems, causing possible harm to you or bystanders. Keep the machine well maintained and in good working order as indicated in these instructions. CAUTION If you leave the key in the switch, someone could accidently start the engine and seriously injure you or other bystanders.
  • Page 30 g492024 Figure 27 g492261 Figure 29 On each side of the machine, remove the side 1. Gap between the pintle chain and the drivetrain frame cover by removing the 2 bolts. To adjust the tension, loosen the jam nuts on the sides of the spreader.

  • Page 31: Controller Status And Error Indicators

    Controller Status and Error • Feeder Error or Spinner Error icon—indicates that the feeder or spinner motor is disconnected or that Indicators there is a circuit issue The following icons and messages indicate that an error has occurred with your machine. Refer to Troubleshooting (page 34) for possible solutions.
  • Page 32 • Feeder Motor Cool or Spinner Motor Cool fan icon—indicates that the motor has shut down and is cooling g493232 Figure 40 g493237 Figure 37 • Dump icon—indicates that the dump switch has been activated g493239 Figure 38 • Low Voltage icon—indicates that the vehicle is not supplying enough voltage to run the spreader continuously g493231...

  • Page 33: Cleaning

    Cleaning Storage Unload the spreader; refer to Unloading the Cleaning the Machine Spreader (page 26). Remove the spinner assembly; refer to Pintle-Chain Models Only Removing the Spinner Assembly (page 27). Service Interval: Before each use or daily Remove the spreader from the truck using the lift bars;...

  • Page 34: Troubleshooting

    Troubleshooting The feeder motor is running but the auger or pintle chain is not moving. Possible Cause Corrective Action 1. The drive system is not connected to the gearbox. 1. Replace the coupling and/or the gearbox. 2. The key has fallen out of the coupling. 2.
  • Page 35 Display Button Stuck Error (Fault 012) Possible Cause Corrective Action 1. A button on the in-cab display controller is stuck or faulty. 1. Replace the controller. Low Voltage Error (Fault 013) The first screen below shows the initial error message that can be accepted, or it will time-out after 5 seconds. The second screen shows the error message on the main display screen.
  • Page 36 Feeder Overheat Error (Fault 018) The first screen below shows the initial error message that can be accepted, or it will time-out after 5 seconds. The second screen shows the error message on the main display screen. Possible Cause Corrective Action 1.
  • Page 37 Feeder Low Current Error (Fault 021) The first screen below shows the initial error message that can be accepted, or it will time-out after 5 seconds. The second screen shows the error message on the main display screen. Possible Cause Corrective Action 1.
  • Page 38 Feeder Jam Stuck Error (Fault 027) The first screen below shows the initial error message that can be accepted, or it will time-out after 5 seconds. The second screen shows the error message on the main display screen. Possible Cause Corrective Action 1.
  • Page 39 Spinner Control Mode Error (Fault 30) The first screen below shows the initial error message that can be accepted, or it will time-out after 5 seconds. The second screen shows the error message on the main display screen. Possible Cause Corrective Action 1.
  • Page 40 Spinner Jam Error (Advise 036) The first screen below shows the initial error message that can be accepted, or it will time-out after 5 seconds. The second screen shows the error message on the main display screen. Possible Cause Corrective Action 1.
  • Page 41 Spinner Under Target Error (Advise 039) Possible Cause Corrective Action 1. The module is not able to provide enough power to achieve The spreader will continue to run, but it is not achieving the target the target spread rate. spread width. 1.
  • Page 42 Right Side Vibrator Low Current Error (Advise 051) The first screen below shows the initial error message that can be accepted, or it will time-out after 5 seconds. The second screen shows the error message on the main display screen. Possible Cause Corrective Action 1.
  • Page 43 Brine Pump High Current Error (Advise 062 and 063) The first screen below shows the initial error message that can be accepted, or it will time-out after 5 seconds. The second screen shows the error message on the main display screen. Possible Cause Corrective Action 1.
  • Page 44 California Proposition 65 Warning Information What is this warning? You may see a product for sale that has a warning label like the following: WARNING: Cancer and Reproductive Harm—www.p65Warnings.ca.gov. What is Prop 65? Prop 65 applies to any company operating in California, selling products in California, or manufacturing products that may be sold in or brought into California.
