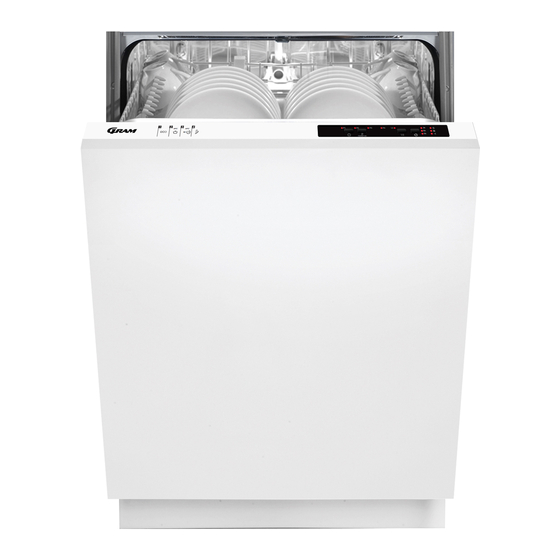

Gram DSI 6200/1 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EN
Dishwasher / User Manual
DSI 6200/1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSI 6200/1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gram DSI 6200/1

Summary of Contents for Gram DSI 6200/1

  • Page 1 Dishwasher / User Manual DSI 6200/1...
  • Page 2 Thank you for choosing this product. This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.

  • Page 3: Table Of Contents

    CONTENTS 1.SAFETY INSTRUCTIONS ....................1 1.1. General Safety Warnings ....................1 1.2. Installation Warnings .....................2 1.3. During Use........................3 2.INSTALLATION ......................... 6 2.1. Machine Positioning .....................6 2.2. Water Connection ......................6 2.3. Water Inlet Hose ......................6 2.4. Drain Hose........................6 2.5. Electrical Connection ....................7 3.TECHNICAL SPECIFICATIONS ..................
  • Page 4 8.CLEANING AND MAINTENANCE ................. 19 8.1. Filters ........................... 19 8.2. Spray Arms ........................19 8.3. Drain Pump ........................20 9.TROUBLESHOOTING ....................21...

  • Page 5: Safety Instructions

    1. SAFETY INSTRUCTIONS 1. General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

  • Page 6: Installation Warnings

    2. Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine. Unplug the machine before installation. Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.

  • Page 7: During Use

    pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection. 3. During Usage • This machine is for domestic use only; do not use • it for other purposes. Commercial use will void the guarantee. Do not stand, sit or place loads on the open door of the dishwasher.
  • Page 8 the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds. In the case of a malfunction, repair should only be performed by an authorised service company, otherwise the warranty will be void.
  • Page 9 CE Declaration of Conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old machine The symbol on the product or on its packaging indicates that this product may not be treated as household waste.

  • Page 10: Installation

    2. INSTALLATION WARNING: Use the new water inlet 2.1. Machine positioning hose supplied with your machine, do not use an old machine’s hose. When positioning the machine, place it in an area where dishes can be easily loaded WARNING: Run water through the and unloaded.

  • Page 11: Electrical Connection

    2.5. Electrical connection WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection. Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical Specifications"...

  • Page 12: Technical Specifications

    3. TECHNICAL SPECIFICATIONS 3.2. Technical specifications 12 place Capacity settings Dimensions (mm) Height 820-870 (mm) Width 598(mm) Depth 550(mm) Net weight 33,1 kg 3.1. General appearance Operating 1. Upper basket with racks 220-240V 2. Upper spray arm voltage / 50 Hz, 3.

  • Page 13: Before Using The Appliance

    4.3. Fill the salt (IF AVAILABLE) 4. BEFORE USING To add softener salt, open the salt THE APPLIANCE compartment cap by turning it counter clockwise. (1) (2) At first use, fill the 4.1. Preparing your compartment with 1 kg salt and water (3) until dishwasher for first use it is almost overflowing.

  • Page 14: Test Strip

    4.4. Test Strip Run water through Keep the strip in Set the hardness level of Shake the strip. Wait (1min.) the tap (1min.) the water (1sec) your machine. second munite munite NOTE: The factory hardness level setting is “3”. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

  • Page 15: Filling The Detergent

    Do not fill detergent into the detergent setting set too low, whitish stains remains compartment more than required; otherwise on dishes and dishes do not dry and you can see whitish streaks or bluish layers washed clean. If rinse aid dosage setting on glass and dishes and may cause glass set too height, you can see bluish layers on corrosion.

  • Page 16: Loading Your Dishwasher

    5. LOADING YOUR WARNING: To avoid any possible DISHWASHER injuries, place long-handle and sharp- pointed knives with their sharp points facing down or horizontally on the baskets. For best results, follow these loading guidelines. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings.
  • Page 17 Upper Basket Height Adjustable Rack (peg type) Height adjustment Turn the Rail Stop Clips, at the ends of the The height adjustable racks enable glasses rails, to the sides to open them (as shown in and cups to be placed on or under the the image below), then pull out and remove racks.

  • Page 18: Alternative Basket Loads

    5.2. Alternative basket loads Unsuitable items for dishwashing Lower basket • Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron- alloy materials. • Forks, spoons and knives with wooden, bone, ivory or nacrecoated handles; glued items, items soiled with abrasive, acidic or base chemicals.

  • Page 19: Programme Table

    6. PROGRAMME TABLE Auto Intensive 65°C Program Quick & Clean Prewash Name: (Model depending) (Model depending) Standard program for Suitable for normally soiled normally Suitable to rinse Auto program daily using Suitable for heavily soiled daily dishes that you Type of Soil: for heavily soiled dishes with soiled dishes...

  • Page 20: The Control Panel

    7. THE CONTROL PANEL time is cancelled. NOTE: If you decide not to start the selected programme, please see the "Changing a Programme" and "Cancelling a Programme" sections. NOTE: When there is insufficient 1. On/Off button softening salt, the Salt Lack Warning 2.

  • Page 21: Cancelling A Programme

    7.2. Cancelling a Programme Buzzer Sound Control Follow the steps below to cancel a To change the buzzer sound level, follow programme while in operation. the below steps: 1. . Open the door and press Programme ( and Half Load (3) buttons simultaneously When the door of your machine is for 3 seconds.
  • Page 22 5. To save the selected setting, turn off the machine. In factory setting, Save Power Mode is active. Infoled 2.1 (Model Dependent) LED Indicator State of the Machine The machine is running a Red, continuous program. Red, flashing A program is cancelled. The machine has a fault.

  • Page 23: Cleaning And Maintenance

    8. CLEANING AND To remove and clean the filter combination, turn it counter clockwise and remove it by MAINTENANCE lifting it upwards (1).Pull the coarse filter out of the micro filter (2).Then pull and remove Cleaning your dishwasher is important to the metal filter (3).Rinse the filter with lots of maintain the machine’s service life water until it is free of residue.

  • Page 24: Drain Pump

    8.3 Drain Pump Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter. Warning Risk of cuts! When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements.

  • Page 25: Troubleshooting

    9. TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off button. Fuse blown. Check your indoor fuses. The programme does not start.
  • Page 26 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.
  • Page 27 AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE CODE POSSIBLE FAULT WHAT TO DO Make sure the water inlet tap is open and water is flowing. Water inlet system Separate the inlet hose from the tap and failure clean the filter of the hose. Contact for service if the error continues.
  • Page 28 The installation and repairing procedures should always carried out by the Authorised Service Agent in order to avoid possible risks. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons. Repairs may be carried out by technicians only.
  • Page 29 Gram A/S Gram A/S Gram A/S Tel.: 22 07 26 30 Tel.: 040 38 08 40 Tel.: 020 7756 350 www.gram.no www.gram.se www.gram.fi Gram A/S. Gejlhavegård 2B. DK-6000 Kolding. +45 73 20 10 00 www.gram.dk 52365157 R60...
