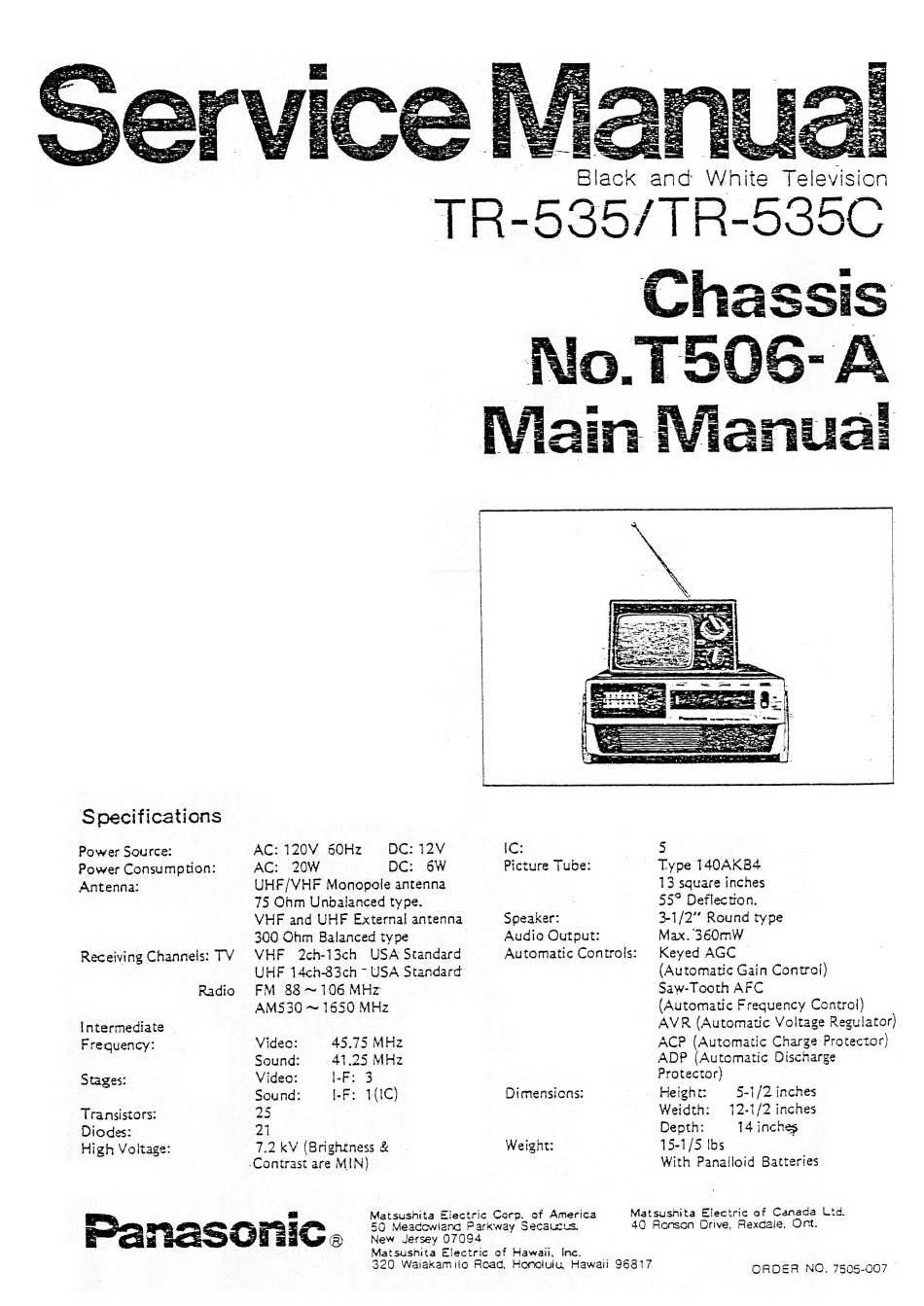

Panasonic TR-535 Service Manual

Specifications
Power Source:
Power Consumption:
Antenna:
Receiving Channels: TY
Radio
Intermediate
Frequency:
Stages:
Transistors:
Diodes:
High Voltage:
AC: 120VYV 60Hz DC: 12V
AC: 20W DC: 6W
UHF/YVHF Monopole antenna
75 Ohm Unbalanced type.
VHF and UHF External! antenna
300 Ohm Balanced type
VHF 2ch-13ch USA Standard
UHF 14ch-83ch ~— USA Standard
FM 88 ~ 106 MHz
AMS530 ~ 1650 MHz
Video: 45.75 MHz
Sound: 41.25 MHz
Video: Fo 3
Sound: -F: 1(1C)}
25
21
7.2 kV (Brightness &
.Contrast are MIN)
IC:
Picture Tube:
Speaker:
Audio Output:
Automatic Controls:
Dimensions:
Weight:
>
Type 140AKB4
13 square inches
55° Deflection.
3-1/2" Round type
Max. 360mW
Keyed AGC ©
(Automatic Gain Control)
Saw-Tooth AFC
(Automatic Frequency Control)
AVR (Automatic Voltage Regulator)
ACP (Automatic Charge Protector}
ADP (Automatic Discharge
Protector) 7
Height:
Weidth:
Depth:
15-1/5 Ibs
With Panalloid Batteries
5-1/2 inches
12-1/2 inches
14 inches
Matsushita Electric of Canada Ltd.
Matsushita Electric Corp. of America
40 Ronson Orive, Rexdale, Ort.
50 Meadowland Parkway Secaucus.
New Jersey 07094
Matsushita Electric of Hawaii, Inc.
320 Walakamilo Road, Hondiuiu, Hawai! 96817 ORDER NO. 7505-007
