Summary of Contents for Bucktool SSA22

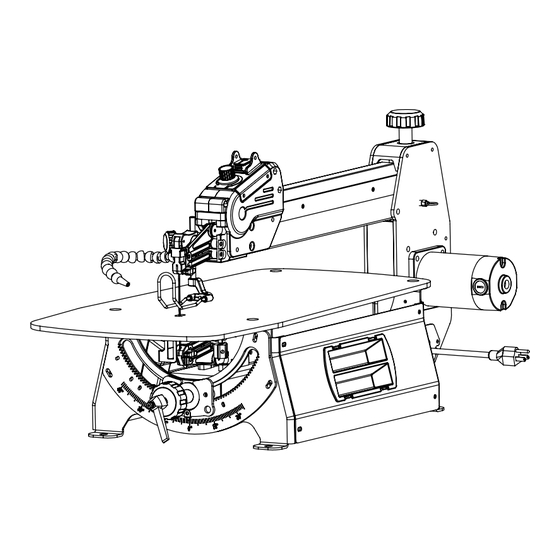

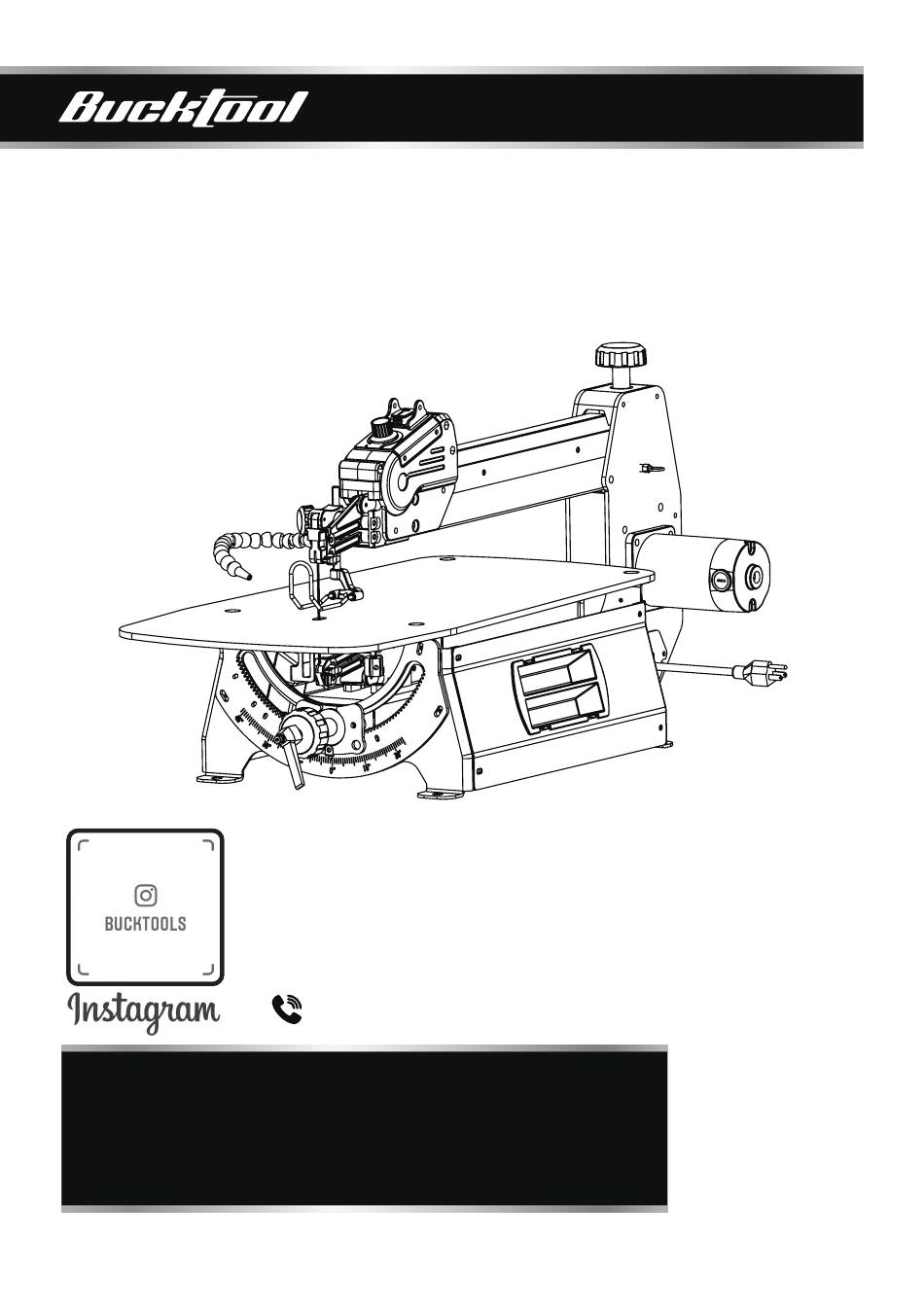

- Page 1 GET IT DONE ! 22 VARIABLE SPEED SCROLL SAW " Contact Us: email: service@bucktool.com https://www.bucktool.com 909-255-1088 (8AM-5PM PST) IMPORTANT: INSTRUCTION For your own safety, read and follow all of the Safety Guidelines and Operating Instructions before operating MANUAL this product.
-
Page 2: Specifications
SSA22 TABLE OF CONTENTS Specifications Safety guidelines Key parts diagram Assembly/Operating Maintenance Troubleshooting Exploded view Parts list Warranty SPECIFICATIONS Input 120VAC, 60Hz , 1.3A No Load Speed 360-1550 r/min(RPM) Table Size 27" x 13" Cutting tilting Left 0°- 30°,Right 0°- 45°... -
Page 3: Work Area Safety
SSA22 WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. WORK AREA SAFETY 1. Keep work area clean and well lit. Cluttered or dark areas invite accidents. - Page 4 SSA22 wrench or a key left attached to a rotating part of the power tool may result in personal injury. 5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
-
Page 5: California Proposition 65 Warning
SSA22 CALIFORNIA PROPOSITION 65 WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities may contain chemicals, including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. Wash hands after handling. Some examples of these chemicals are: •... -
Page 6: Scroll Saw Safety
SSA22 SCROLL SAW SAFETY 1. To avoid injury from unexpected saw movement: - Use the scroll saw on a firm level surface with adequate space for handling and supporting the workpiece. - Be sure the scroll saw cannot move when operated. Secure the scroll saw to a workbench or table with wood screws or bolts, washers and nuts. - Page 7 SSA22 3. Check with a licensed electrician or service personnel if you do not completely understand the grounding instructions or whether the tool is properly grounded. 4. Use only three-wire extension cords that have three-pronged plugs and outlets that accept the tool’s plug. Repair or replace a damaged or worn cord immediately.
- Page 8 SSA22 No. Description Qty. Blade tension knob Power switch Variable speed control knob Blade tension handle Blade lock knob Blade guard Sawdust blower Work table Table level lock handle Table level knob Tool box Motor Arm lock pin 15 TPI Pinless Blade...
-
Page 9: Align The Bevel Indicator
SSA22 The machine is designed to operate in closed rooms and must be placed stable on firm and levelled surface. The machine can be bolted down if required. WARNING TO REDUCE RISK OF INJURY: • When carrying the saw, hold it close to your body to avoid injury to your back. Bend your knees when lifting the saw. - Page 10 SSA22 ADJUSTING THE DUST BLOWER For best results, the dust blower tube (3) should be adjusted to direct air at both the blade and the workpiece. POWER SWITCH & SPEED CONTROL KNOB 1. To turn the saw on, flip the I/O switch (1) to I.
-
Page 11: Freehand Cutting
SSA22 10. When choosing a blade, use very fine, narrow blades to scroll cut in thin wood 1/4” thick or less. Use wider blades for thicker materials. This, however, will reduce the ability to cut tight curves. 11. Blades wear down faster when cutting plywood or very abrasive particle board. - Page 12 SSA22 INTERIOR CUTTING & FRETWORK 1. Lay out the design on the workpiece. Drill a 1/4” pilot hole in the workpiece. 2. Pull up the Blade tension handle (1) toward up.Loosen the top blade locking knob (2). 3. Gently lift the upper arm (3) of the saw.
-
Page 13: Carbon Brush Replacement
SSA22 WARNING Make sure the saw is turned OFF and unplugged before making any adjustments to the blade. REPLACE THE SAW BLADE 1. To remove the blade, pull up the Blade tension handle (1) toward up to relieve tension. 2. Loosen the top blade locking knob (2), then Loosen the bottom blade locking knob (3). -
Page 14: General Maintenance
SSA22 carbon brushes were in to prevent unnecessary wear if they will be reinstalled. 3. Measure the length of the brushes. Install the new set of carbon brushes if either carbon brush length is worn down to 3/16” or less. -
Page 15: Troubleshooting
SSA22 TROUBLE SHOOTING WARNING In the interests of operational safety, always switch off the saw and remove the mains plug before carrying out maintenance work. SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION Tension incorrectly set Set the correct tension Feed the work piece more... - Page 16 SSA22...
- Page 17 SSA22 Description Description Housing guard board Hex socket screw M6×8 Lower adaptor Sping cloumn pin-3X18 Upper supporting tube Big washer D4 Upper supporting pad Big washer D8 Upper supporting spndle Lock hex nut M4 Upper supporting backplate Steering gear M1.5Z14...
- Page 18 SSA22 Description Star washer D4 Philips screw M4×40 Philips screw M4X50 Lock hex nut M8 Lower supporting Lower supporting direction plate Lower supporting diretion bracket Left housing plate Right housing plate Tension bracket Housing spacing board Housing connecting board Left switch box...
- Page 19 NOTE:...
- Page 20 GET IT DONE ! TWO-YEAR LIMITED WARRANTY Having Problems ? Give us a chance to help you before returning this product Email : service@bucktool.com https://www.bucktool.com 909-255-1088 (8AM-5PM PST) https://www.bucktool.com...
