Echogear EGXLF1-HDL Instruction Manual

#YourGearUpgraded

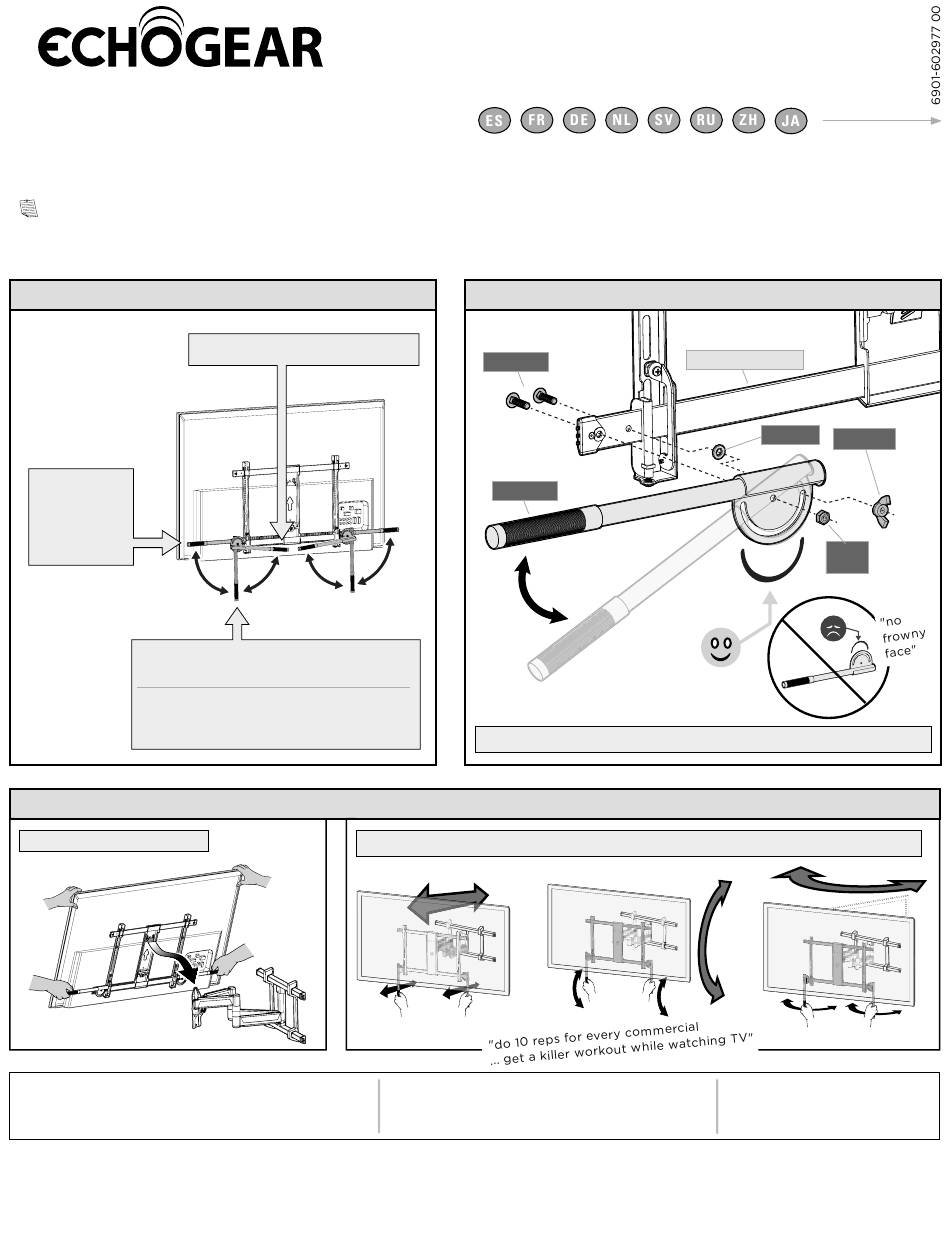

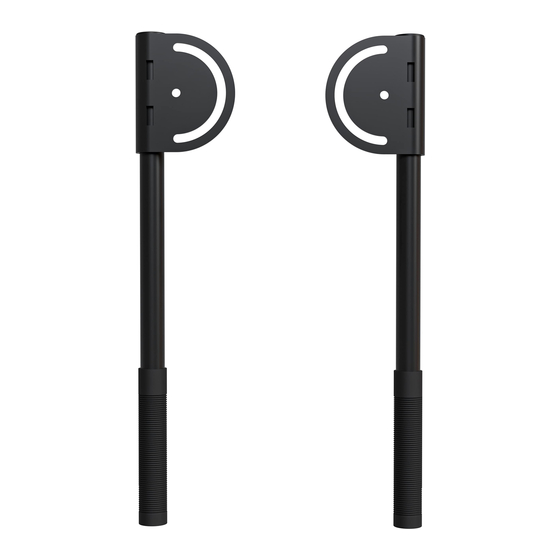

This handle mounts onto the EGXLF1 TV bracket using the two holes indicated (see assembly section below).
Install the handles on the TV bracket BEFORE installing the TV bracket onto your TV.
NOTE: If your TV is already mounted, and there is not enough space to insert the screws behind the
TV bracket (see assembly below), you will need to remove the TV and TV bracket to install the handles.
See the EGXLF1 manual for removing your TV.
Usage
a. Safely
Hang or
Remove
Your TV
b. Position Your TV Without
Touching the Screen
Use to adjust TV in & out,
tilt up & down and
swivel side-to-side
Operation
a. Hang or Remove your TV.
