Alfa Laval LKHPF Instruction Manual

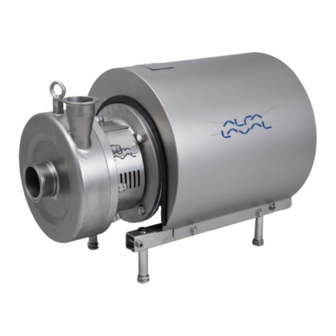

Filtration centrifugal pump for high inlet pressure
Hide thumbs Also See for LKHPF:
Table of Contents

Advertisement

Quick Links

Instruction Manual
LKHPF Filtration Centrifugal Pump for High Inlet Pressure
ESE01950-EN12
Original manual
2022-10
