The hands-iree operation has priority over Traffic Announcements:
lf [TP] is activated during a phone call, the station name is displayed instead of "PHONE" during a Traffic
Announcement, but telephone will be heard via the loudspeakers. Sys
With the aid of the TP key one can select either telephone or Traffic Announcement reproduction.
TA Volume Level
Keep TP key @ pressed for 3 sec until you hear the confirmation beep. Use search keys @® or @ to adjust the
desired setting between "TP-VOL -3* and "TP-VOL +3".
Display Logic
Keep presets 4 and 6 pressed while switching the set On to toggle between 8 and 10 digit display until you hear
the confirmation beep. The status will be displayed briefly.
MW Tuning Step Setting
Keep presets 2 and 5 pressed while switching the set On to toggle between 9 and 10 kHz tuning steps until you
hear the confirmation beep. The status will be displayed briefly,

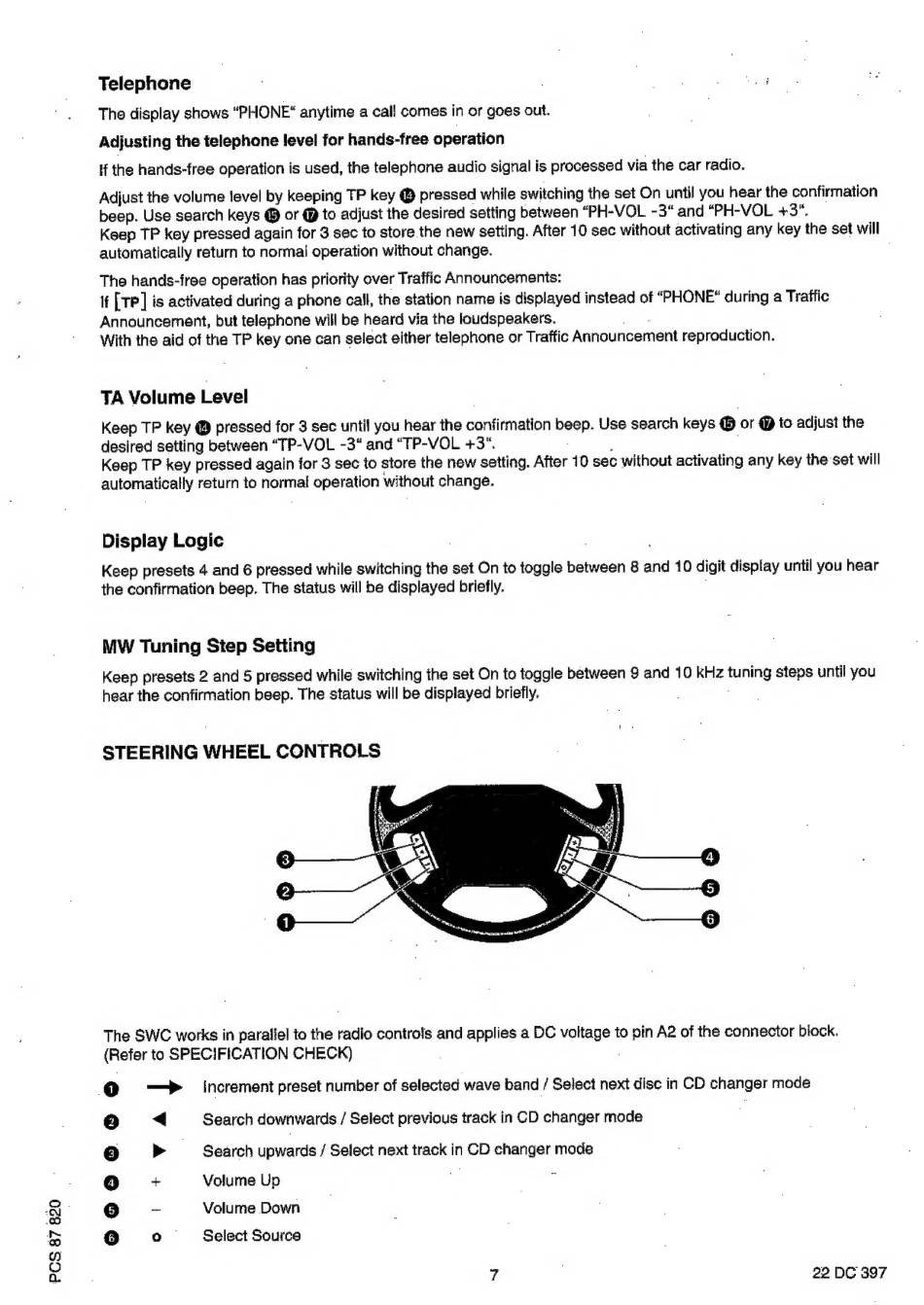

STEERING WHEEL CONTROLS
The SWC works in paraliel to the radio controls and applies a DC voltage to pin A2 of the connector biock.
(Refer to SPECIFICATION CHECK) ,
@ — increment preset number of selected wave band / Select next disc in CD changer mode
2] < Search downwards / Select previous track in CD changer mode
3] > Search upwards / Select next track in CD changer mode
Oo + Volume Up
eo - Volume Down
oe co — Select Source
7 22 DG 397
