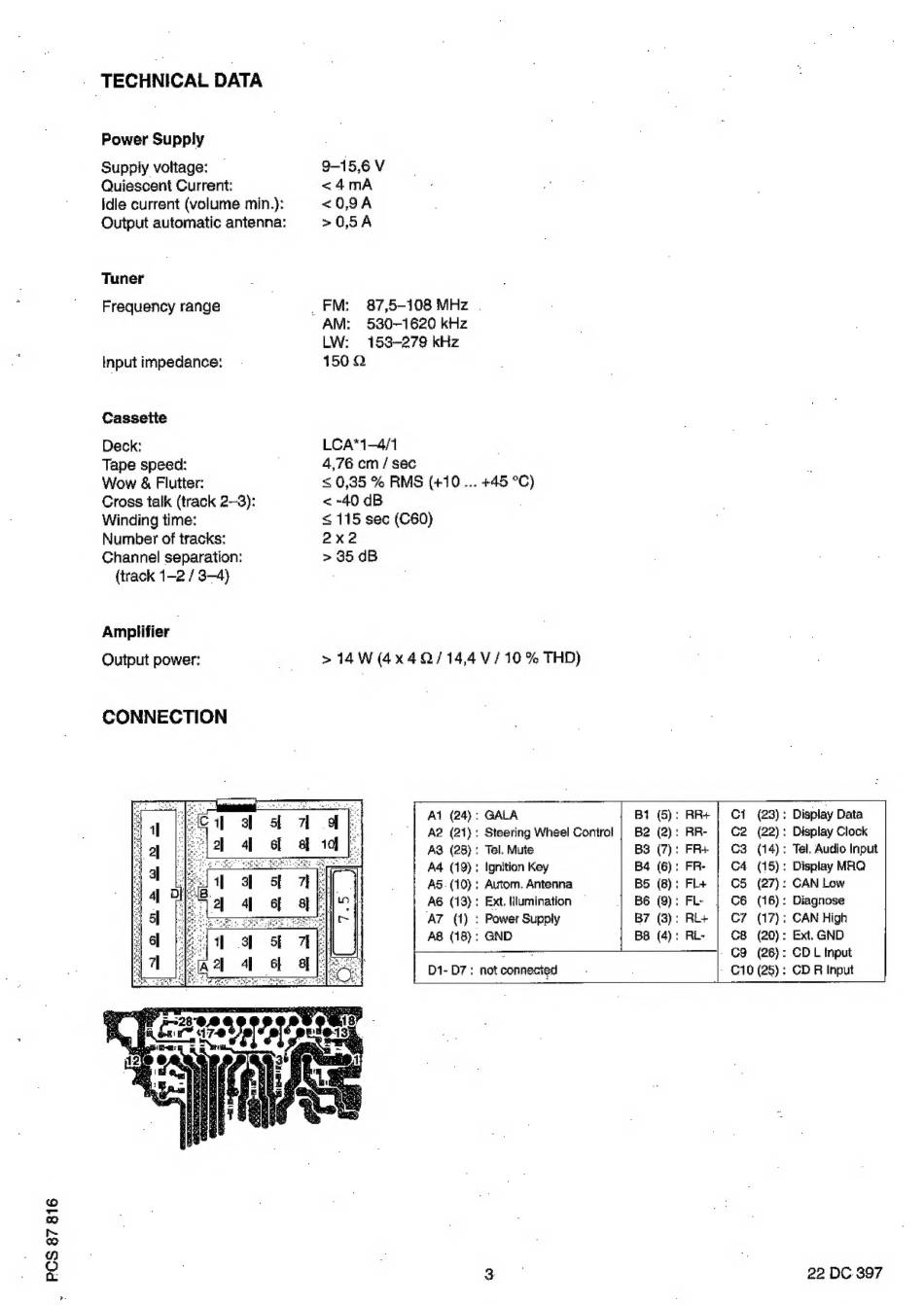

Technical Data - Philips 22 DC 397 Service Manual

PCS 87 816
_ TECHNICAL DATA
Power Supply
Supply voltage:
Quiescent Current:
idle current (volume min.}:
Output automatic antenna:
Tuner
Frequency range
Input impedance:
Cassette
Deck:
Tape speed:
Wow & Flutter:
Cross talk (track 2-3):
Winding time:
Number of tracks:
Channel separation:
{track 1-2 / 3-4)
Amplifier
Output power:
CONNECTION
9-15,6 V
<4mA
<O,9A
>0,5A
FM: 87,5-108 MHz -
AM: 530-1620 kHz
LW: 153-279 kHz
150
LCA*1—-4/1
4,76 cm/sec
S$ 0,35 % RMS (+10... +45 °C)
< -40 dB
< 115 sec (C60)
2x2
> 35 dB
> 14W (4x4Q/ 14,4 V/ 10 % THD)
Al (24): GALA
AQ (28): Tel. Mute
A4 (19): Ignition Key
A5. (10): Autom. Antenna
AZ (1) : Power Supply
AS (18): GND
A2 (21): Steering Wheel Control
A6 (13): Ext. lumination —
B41 (5):
B2 (2):
BS (7):
B4 (6):
BS (8):
B6 (9):
B7 (3):
BS (4):
D1- D7: not connected
RR+
RR-
FR+
FR-
FL+
FL |
RL+
RiL-
C1 (23):
C2 (22):
C3 (14):
G4 (15):
G5 (27):
C6 (16):
C7 (17):
CB (20):
- C9 (26):
» €10 (25):
Display Data
Display Clock
Tel. Audio Input
Display MAQ
CAN Low
Diagnose
CAN High
Ext. GND
CD L tnput
CD R Input
22 DC.397
