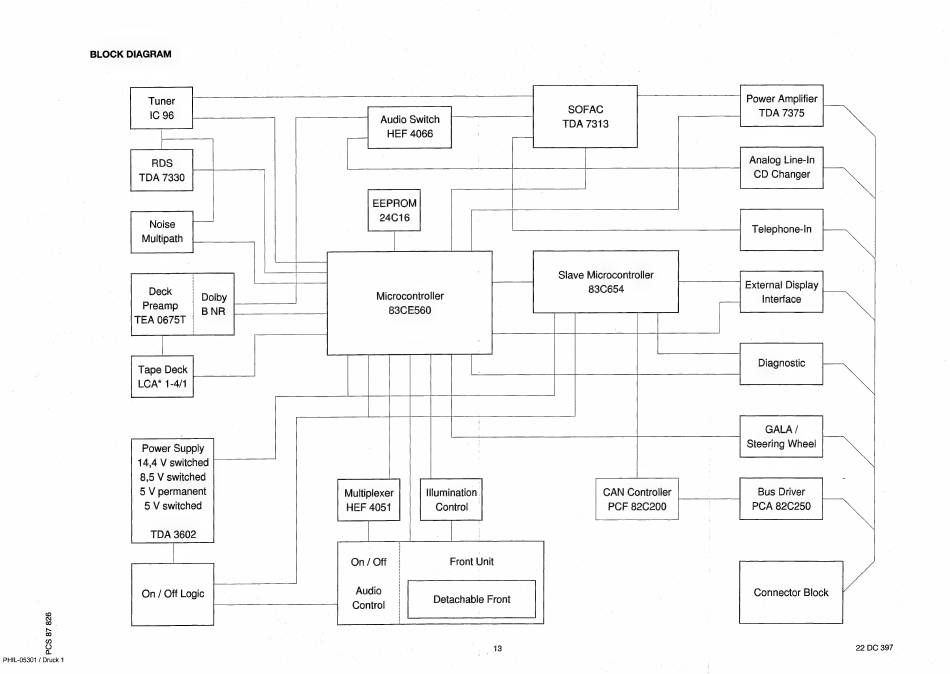

BLOCK DIAGRAM
RDS
Audio Switch
HEF 4066
SOFAC
TDA 7313
TDA 7330
Noise
Multipath
Deck
Preamp
TEA 0675T |
Tape Deck
LCA* 1-4/1
Power Supply
Dolby
EEPROM
24016
Microcontroller
83CE560
Slave Microcontroller
830654
14,4 V switched
8,5 V switched
5 V permanent
5 V switched
TDA 3602
On / Off Logic
Multiplexer
Illumination.
HEF 4051 Control
On / Off | Front Unit
Audio
Control
|
Delaeene Front
13
oa: Soe
CAN Controller |
PCF 82C200 |
Power Amplifier
TDA 7375
Analog Line-In
CD Changer
Telephone-In
External Display
Interface
Diagnostic
GALA /
Steering Wheel
Bus Driver
PCA 82C250
Connector Block
22 DC 397
