ASME A112.18.1 / CSA B125.1
ASME A112.18.2 / CSA B125.2
NSF-61
ICC/ANSI A117.1
Model/Modelo/Modèle
35949 Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
you may need / Usted puede necesitar / Articles dont vous pouvez avoir besoin:
for easy installation of your Delta
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and maintenance
information.
• To purchase the correct water supply hook-up.
Para instalación fácil de su llave Delta
usted necesitará:
• LEER toDAs las instrucciones completamente
antes de empezar.
• LEER toDos los avisos, cuidados, e
información de mantenimiento.
• Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet Delta
facilement, vous devez:
• LIRE toUtEs les instructions avant
de débuter;
• LIRE toUs les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Acheter le bon nécessaire de raccordement.
®
3/32" (2.38mm)
US. Pat. 3,645,493, 3,786,995, 4,523,604, 4,562,960, 4,593,430, 4,218,785, 4,577,653, 4,765,365
tWo hANDLE WIDEsPREAD
LAvAtoRy fAUCEts
LLAvEs DE LAvAMANos
EXtENDIDAs DE Dos MANIJAs
RobINEts à ENtRAXE LoNG à
DEUX PoIGNÉEs PoUR LAvAbo
L
1
L
?
8/14/08
Rev. A
Advertisement
Table of Contents
Related Manuals for Delta 35949 Series
Summary of Contents for Delta 35949 Series
- Page 1 • To READ ALL warnings, care, and maintenance information. • To purchase the correct water supply hook-up. Para instalación fácil de su llave Delta usted necesitará: • LEER toDAs las instrucciones completamente antes de empezar. • LEER toDos los avisos, cuidados, e información de mantenimiento.

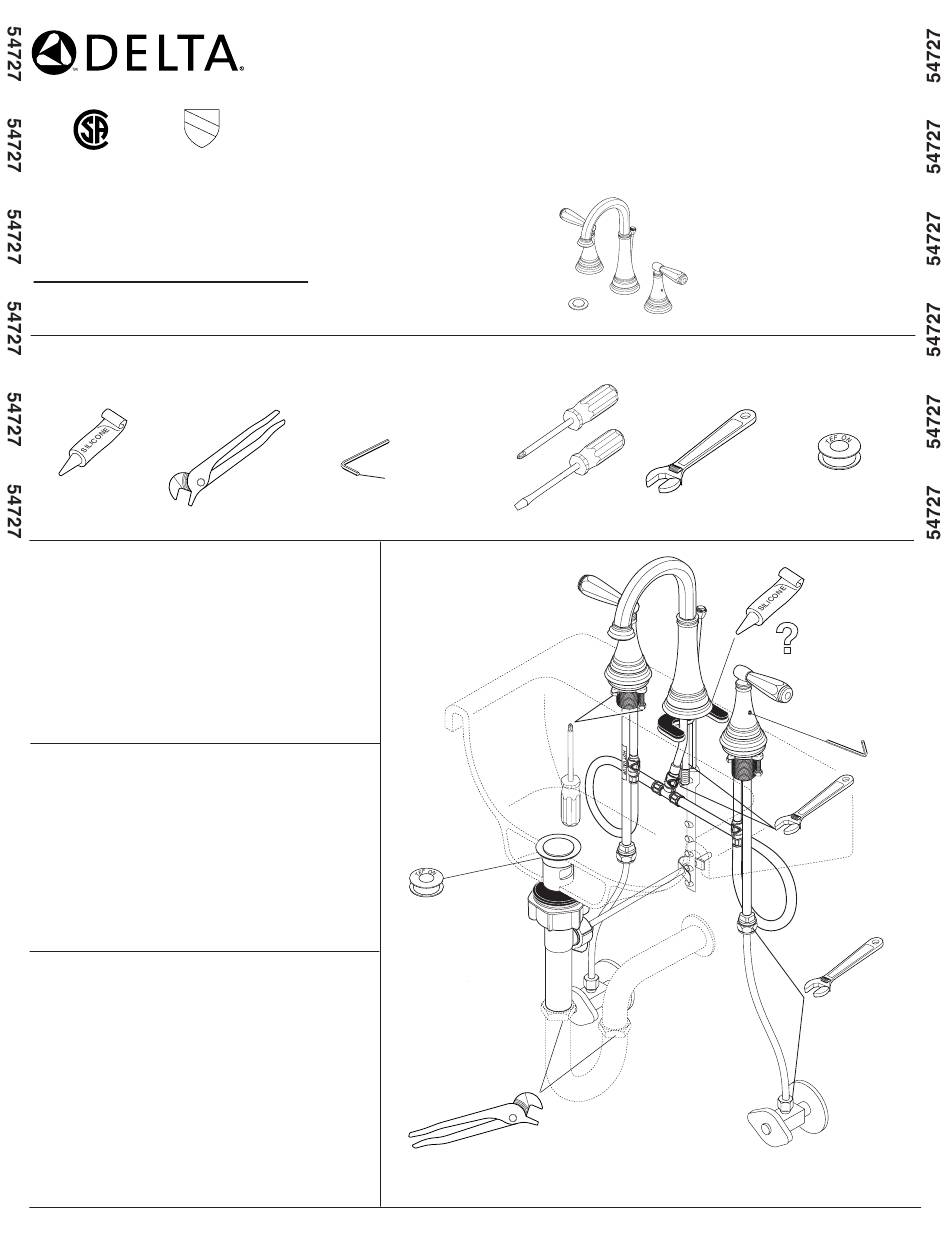

- Page 2 Slide hot (1) and cold (2) end valves with gaskets (3) through sink. Install spout (1) and gasket (2). Secure with gasket, washer and nut (3). Note proper end valve installation. Longer copper tubes (4) install Note: If surface is uneven, use silicone under the gasket. away from spout;...
- Page 3 Pop-Up Installation Remove flange (1) and rubber washer (2) from Unscrew the nut (1) from the pop-up body. Place one end of spring clip (1) on end of Note: retain the seal (2) on the horizontal pop-up body. horizontal rod (2). Insert rod through hole in rod (3).
- Page 4 1/2" (13 mm) IPS Make Connections to water lines: Remove aerator (1) using supplied wrench (2) and turn faucet handles (3) to the full on position. Turn on hot and Choose hook-ups for 1/2" I.P.S. connections: cold water supplies (4) and flush water lines for one minute. (1) Ball nose riser (3/8"...
-
Page 5: Maintenance
RP54726s Lift Rod Barra de Alzar Tige de Manoeuvre RP54725s Handle Assembly Ensamble de la Manija RP52216 Poignée Aerator Aireador RP25620 Aérateur Set Screw Tornillo de Ajuste RP46858 Vis de Calage Wrench RP41896 Llave RP6060 Glide Ring Clé Bonnet Nuts Aro para Deslizar Bonetes/Capuchones L’anneau de Glissement... -
Page 6: Instructions De Nettoyage
& repair. OF MERCHANTABILITY. Delta will replace, FREE OF CHARGE, during the warranty period, any part or finish that proves This warranty excludes all industrial, commercial & business usage, whose purchasers are defective in material and/or workmanship under normal installation, use & service. Replacement hereby extended a five year limited warranty from the date of purchase, with all other terms of parts may be obtained by calling 1-800-345-DELTA (in the U.S.
