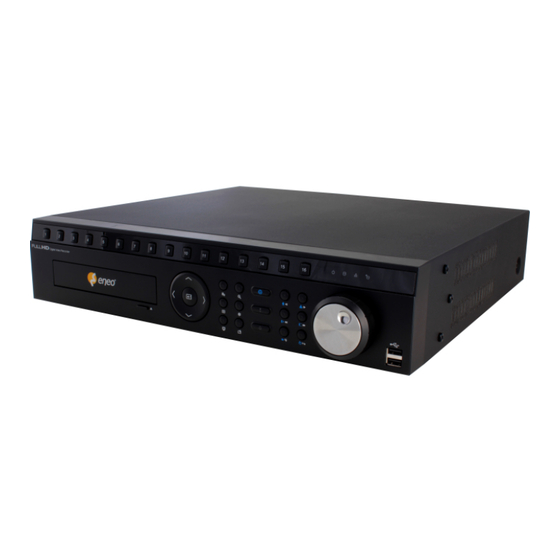

Eneo TVR-3016AH3.0 User Manual

Hybrid video recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EN
User Manual
Hybrid Video Recorder
TVR-3016AH3.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TVR-3016AH3.0 and is the answer not in the manual?

Questions and answers

Related Manuals for Eneo TVR-3016AH3.0

Summary of Contents for Eneo TVR-3016AH3.0

  • Page 1 User Manual Hybrid Video Recorder TVR-3016AH3.0...
  • Page 3 Digital Video Recorder WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
  • Page 4 User’s Manual Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result appliance is operated. in the risk of fire or electric shock. 2.

  • Page 5: Table Of Contents

    Digital Video Recorder Table of Contents Chapter 1 — Introduction........................1 Feature ............................1 Technical Overview ........................1 Chapter 2 — Installation ........................3 Package Contents ......................... 3 Required Installation Tools ......................3 Video Input ..........................3 Alarm Input/Output ........................4 RS485 Port ..........................
  • Page 6 User’s Manual General ........................... 26 Schedule ..........................27 Pre-Event ..........................30 Event Setup ..........................31 Motion ............................. 31 Alarm-In ..........................32 Video Loss ..........................33 Video Blind ..........................34 Text-In ............................ 35 Camera Setup ..........................37 General ........................... 37 PTZ ............................38 Device Setup ..........................
  • Page 7 Digital Video Recorder Record Table Search ......................71 Motion Search ........................72 Text-In Search ........................74 Bookmarks ..........................75 Clip-Copy ..........................76 Print ............................78 Appendix ............................79 USB Hard Disk Drive Preparation ....................79 Text-In Search Examples ......................79 Search Example I ........................
  • Page 8 User’s Manual Figure 28: Network – LAN setup screen....................42 Figure 29: Network – FEN setup screen....................44 Figure 30: Network – RTSP setup screen....................45 Figure 31: Network – WebGuard setup screen..................46 Figure 32: Network – VNC setup screen....................46 Figure 33: Network –...

  • Page 9: Chapter 1 - Introduction

    Digital Video Recorder Chapter 1 — Introduction Feature Your color digital video recorder (DVR) provides recording capabilities for eight or 16 camera inputs. It provides exceptional picture quality in both live and playback modes, and offers the following features:  Live Monitoring for Each Channel ...

  • Page 10: Figure 1: Typical Dvr Installation

    User’s Manual You can view video and control your DVR remotely by connecting via Ethernet. There is an eSATA port that can be used to record (eSATA interface only) video to external hard disk drives, and there are two USB ports that can be used to upgrade the system or copy video clips to external hard disk and flash drives.

  • Page 11: Chapter 2 - Installation

    Digital Video Recorder Chapter 2 — Installation Package Contents The package contains the following:  Digital Video Recorder  Power Cord  Quick User Guide  Software CD (User’s Manual included)  Rack-mount Kit  Assembly Screws for Adding Hard Disk Drives ...

  • Page 12: Alarm Input/Output

    User’s Manual Alarm Input/Output NOTE: To make connections on the Alarm Connector Strip, press and hold the button and insert the wire in the hole below the button. After releasing the button, tug gently on the wire to make certain it is connected. To disconnect a wire, press and hold the button above the wire and pull out the wire.

  • Page 13: Esata Port

    Digital Video Recorder NOTE: Refer to the following for pin-out details for the 9-pin connector of the slave unit. Pin 2 RXD (Receive Data) Pin 3 TXD (Transmit Data) Pin 5 GND (Ground) Male Female eSATA Port An eSATA port is provided to connect external storage devices for recording or archiving video. Connect the external eSATA hard disk drive (RAID) cable to the eSATA port.

  • Page 14: Audio In/Out

    User’s Manual Audio In/Out Your DVR can record audio from up to four sources. Connect the audio sources to Audio In 1, Audio In 2, Audio In 3 and Audio In 4 as needed using RCA jacks. Connect Audio Out to your amplifier. NOTE: It is the user’s responsibility to determine if local laws and regulations permit recording audio.

  • Page 15: Chapter 3 - Configuration

    Digital Video Recorder Chapter 3 — Configuration NOTE: Your DVR should be completely installed before proceeding. Refer to Chapter 2 — Installation. Front Panel Controls Figure 3: DVR front panel. Camera Buttons Enter Button Arrow Buttons Menu Button Zoom Button PTZ Button Panic Button Display Button...

  • Page 16: Camera Buttons (1 To 16)

    User’s Manual ID Button Alarm Button Monitor Buttons Freeze Button Display Button Clip Copy Button Sequence Button Bookmark Button Camera Buttons Zoom In/Out Button Triplex Button Preset Set/View Button Audio Buttons PTZ Mode Button Focus Near/Far Button Arrow Buttons Menu Button Zoom Mode Button Enter Button Play Button...

  • Page 17: Ptz Button

    Digital Video Recorder PTZ Button Pressing the button enters the PTZ (Pan/Tilt/Zoom) mode which allows you to control properly configured cameras. Panic Button Pressing the button starts panic recoding of all camera channels, and displays on the screen. Pressing the button PANIC again will stop panic recording.

  • Page 18: Playback Buttons

    User’s Manual Playback Buttons  Backward: When in the pause mode, pressing the button moves to the previous image. The button is also used to Zoom Out while in the PTZ mode.  Forward: When in the pause mode, pressing the button moves to the next image.

  • Page 19: Sequence Button On Remote Control

    Digital Video Recorder Sequence Button on Remote Control Pressing the button displays live channels sequentially. SEQUENCE Clip Copy Button on Remote Control Pressing the button allows you to copy video clips. CLIP COPY Turning on the Power Connecting the power cord to the DVR turns on the unit. The unit takes approximately one minute and 30 seconds to initialize.

  • Page 20: Setup Screen

    User’s Manual Setup Screen System Record Event Camera Device Network Notification Display Figure 7: Setup screen. Press the button or move the mouse pointer on the right edge of the screen and then select (Setup) in the Live MENU Monitoring menu to enter the setup screen. While setting up the DVR, there will be many opportunities to enter names and titles.

  • Page 21: System Setup

    Digital Video Recorder System Setup General Figure 8: System – General setup screen. Highlight the Site box and press the button. A virtual keyboard appears that you can use to enter a Site Name. Once you have entered your title, highlight OK and press the button.
  • Page 22 User’s Manual You can import saved DVR settings or export the current DVR settings. To import saved DVR settings, connect the USB device containing the setup file (.dat) to the DVR. If you enabled the NetFS function (Network menu > NetFS tab), you can download the setup file from the registered NetFS site.
  • Page 23 Digital Video Recorder To export the system log information, connect the USB device to the DVR. If you enabled the NetFS function (Network menu > NetFS tab), you can upload the log information on the registered NetFS site. Highlight Export… button.
  • Page 24 User’s Manual If you selected the Quick wizard, selecting the Next button starts the Quick Setup Wizard. Date/Time Setup  Date: Set the system date and select the date format.  Time: Set the system time and select the time format. ...
  • Page 25 Digital Video Recorder Record Method Setup  Select the desired recording mode from: – Motion Event Record (Recommended) – Continuous & Motion Event Record – Continuous Record NOTE: You should understand each recording mode before setting the DVR’s recording method. Record Video Quality Setup ...
  • Page 26 User’s Manual NOTE: The recording quality, recording resolution, and recording speed of each camera channel will be set as show below according to the Record Method and Record Video Quality you set. HVQPP* SRP* LRTPP* Motion Event Very High / Very High / 30 ips High / High / 5 ips Standard / Standard / 3 ips Record...
  • Page 27 Digital Video Recorder Internet Connection Select whether or not your DVR is connected to the Internet. LAN Setup Select between Auto Configuration and Manual Configuration for network configuration, and then select the Test button to test the network configuration you selected. NOTE: Selecting Auto Configuration allows the DVR to automatically obtain LAN parameters (IP address, Gateway, Subnet Mask and DNS Server address).
  • Page 28 User’s Manual FEN Setup  FEN Name: Enter the DVR name to be registered on the FEN server. NOTE: The FEN Name you entered should be checked by selecting Test, otherwise the FEN changes will not be saved. When entering no name or a name already registered on the FEN server, an error message displays. Select the Finish button to finish the Setup Wizard.

  • Page 29: Date/Time

    Digital Video Recorder Date/Time Figure 9: System – Date/Time setup screen. Highlight the first box beside Date and press the button. The individual sections of the date will highlight. Use the Up and Down arrow buttons to change the number. Use the Left and Right arrow buttons to move between month, date and year.

  • Page 30: User

    User’s Manual Highlight the box beside Automatic Sync. and press the button. This toggles between On and Off. Highlight the box beside Time Server and press the button. A virtual keyboard appears that you can use to enter the IP address or domain name of the time server. Highlighting allows you to select your time server from a list of registered time servers.
  • Page 31 Digital Video Recorder The +/– column is used to collapse and expand user groups. If there is a + or – in this column, it indicates the item is a Group Name. If there is a – in front of the Group Name, it indicates that the group has been “expanded” and all of the User Names within that group are displayed below the Group Name.

  • Page 32: Storage

    User’s Manual To add a User, highlight the + User… box and press the button. A virtual keyboard appears allowing you to enter the User Name. Enter the name and assign the User to a Group and password. The password can be up to 8 digits. You will be asked to confirm the password. NOTE: In addition to using the front panel buttons or the infrared remote control, you can use the virtual keyboard to assign the password.

  • Page 33: System Event

    Digital Video Recorder You will be able to check the model name, serial number and the time information about recorded data of the selected storage device. If you want to erase recorded data on the selected device, highlight Clear and press button.

  • Page 34: Recording Setup

    User’s Manual Highlight the Settings box beside Check Alarm-In and press the button. You can select the interval that you want the DVR to run self-diagnostics on Alarm Inputs. You can select from 1 hr. to 30 days or Never. Highlight the Settings box beside Disk Almost Full, and press the button.

  • Page 35: Schedule

    Digital Video Recorder Highlight the slide bar beside Auto Deletion, and use the Left and Right arrow buttons or Up and Down arrow buttons to adjust the length of time recorded data will be kept from 1 to 999 days. The DVR automatically deletes video recorded earlier than the user-defined period under three conditions: at midnight, whenever the system reboots or whenever the user changes the Auto Deletion settings.

  • Page 36: Figure 15: Schedule - Settings (Advanced Mode) Setup Screen

    User’s Manual Highlight the Schedule Mode box and press the button. You can select between Simple Mode and Advanced Mode. Selecting Advanced Mode allows you to set up individual recording schedule for each event. NOTE: Changing the schedule mode will reset all event and action statuses. Highlight the + and press the button to add a schedule item.
  • Page 37 Digital Video Recorder NOTE: When multiple events are detected at the same time from a specific channel, the DVR will record event video with the high setting values if the ips, Quality, Resolution and Dwell values of events are different from each other.

  • Page 38: Pre-Event

    User’s Manual Pre-Event Figure 16: Record – Pre-Event setup screen. When the DVR is in the Event Record mode it is possible to have it record images before the event occurs. The Pre-Event screen allows you to define how to handle pre-event recording. If you do not have Event set up in the Record Schedule, a message will display alerting you to this fact.

  • Page 39: Event Setup

    Digital Video Recorder Event Setup Motion Figure 17: Event – Motion setup screen. Your DVR has built-in video motion detection. Video motion detection can be turned On or Off for each camera. Highlighting the box under the Sensitivity heading and pressing the button allows you to adjust the DVR’s sensitivity to motion for Daytime and Nighttime independently.

  • Page 40: Alarm-In

    User’s Manual You can adjust the minimum number of detection blocks that must be activated to trigger a motion alarm. Highlighting the box under the Min. Blocks heading and pressing the button allows you to adjust the minimum number of detection blocks for Daytime and Nighttime independently. Smaller numbers provide greater sensitivity because fewer detection blocks must be activated.

  • Page 41: Video Loss

    Digital Video Recorder Highlight the box under the Actions and press the button. You can set the actions the DVR will take whenever it senses an input on one of its alarm input connectors. Alarm input can be associated with cameras, trigger an Alarm-Out connector, sound the DVR’s internal buzzer, notify a number of different devices, and/or move PTZ cameras to preset positions.

  • Page 42: Video Blind

    User’s Manual Video Blind Figure 20: Event – Video Blind setup screen. The DVR checks to see if anything is blinding a camera. Highlighting the box under the Sensitivity heading allows you to adjust the DVR’s sensitivity to video blind for Black and White independently from 0 (Never) and 1 (least sensitive) to 15 (most sensitive).

  • Page 43: Text-In

    Digital Video Recorder Text-In Figure 21: Event – Text-In setup screen. The DVR can be set to react to text input from devices such as ATMs (Automated Teller Machines) and POS (Point of Sale; i.e., cash registers). This screen allows you to configure the DVR for each text-in device. Highlight the box under the Setup heading, and press the button.
  • Page 44 User’s Manual NOTE: The following description is for a Generic Text Device. The screen changes for different types of text input devices, and there will be different parameter boxes for you to enter information. Highlight the box beside Transaction Start, and press the button.

  • Page 45: Camera Setup

    Digital Video Recorder Camera Setup General Figure 22: Camera – General setup screen. You can turn the camera number On or Off, and you can change the Title of each camera using the virtual keyboard. You can also determine which cameras will display on the monitors by selecting Normal, Covert 1 or Covert 2 from a drop-down list in the Use column.

  • Page 46: Ptz

    User’s Manual Figure 23: Camera – PTZ setup screen. NOTE: You will only be able to set up PTZ devices if the PTZ port is set to RS232 or RS485. Highlight the box in the Product column for the PTZ camera you wish to configure and press the button.

  • Page 47: Device Setup

    Digital Video Recorder Device Setup Audio Figure 24: Device – Audio setup screen. The DVR can record up to four audio inputs. Highlight the box beside the input and press the button. A list of cameras appears, and you can select which camera you want associated with that audio input. Highlight Enable Audio-Out and press the button.

  • Page 48: Remote Control

    User’s Manual You can add and edit alarm output schedules on this screen. Highlight the + and press the button to add a schedule. Highlighting the boxes under the Column heading and pressing the button allows you to edit the information in those boxes.

  • Page 49: Network Setup

    Digital Video Recorder Network Setup General Figure 27: Network – General setup screen. Highlight the first box beside Remote Watch – bps/ips. You can select the Transfer Speed. The available value differs depending on the quality and resolution settings. Highlight the second box beside Remote Watch – bps/ips. You can select the unit of measure for the transfer speed between: bps and ips.

  • Page 50: Lan

    User’s Manual NOTE: While the SSL function is enabled, the network transfer speed you selected may not be achieved. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/). Figure 28: Network – LAN setup screen. Highlight the box beside Type and press the button.
  • Page 51 Digital Video Recorder Highlight Use UPnP and press the button to toggle between On and Off. When it is On, port forwarding from the NAT (Network Address Translation) device to the DVR will be enabled automatically via UPnP (Universal Plug and Play) service.

  • Page 52: Fen

    User’s Manual Figure 29: Network – FEN setup screen. Highlight Use FEN and press the button to toggle between On and Off. NOTE: FEN is the technology that automatically sets up your DVR to work seamlessly for remote viewing via your network internet connection.

  • Page 53: Rtsp

    Digital Video Recorder RTSP Figure 30: Network – RTSP setup screen. Highlight Enable RTSP (Real-Time Streaming Protocol) and press the button to toggle between On and Off. You will be able to change the settings if Enable RTSP is enabled. Highlight the box beside RTSP Port and press the button.

  • Page 54: Webguard

    User’s Manual WebGuard Figure 31: Network – WebGuard setup screen. Highlight Use WebGuard Service and press the button to toggle between On and Off. See Appendix – WebGuard for detailed descriptions of the WebGuard service. Highlight the box beside Port and press the button.

  • Page 55: Netfs

    Digital Video Recorder Highlight the box beside Password and press the button. A virtual keyboard appears allowing you to enter the password for VNC connection. NOTE: Up to three users at a time can access a DVR remotely via VNC service. When controlling the DVR remotely using a keyboard, shortcut keys perform the following functions as described below: Function...

  • Page 56: Figure 33: Network - Netfs

    User’s Manual Figure 33: Network – NetFS. Highlight Use NetFS and press the button to toggle between On and Off. The Title box displays the NetFS site name. Use the virtual keyboard to enter the name. The Use box allows you to select the usage of the NetFS function. ...

  • Page 57: Notification Setup

    Digital Video Recorder Notification Setup Callback Figure 34: Notification – Callback setup screen. The DVR can be set up to contact a computer running RAS (Remote Administration System) when an event occurs. Highlight the box under the No. heading and press the button to toggle between On and Off.
  • Page 58 User’s Manual The DVR can be set up to send an email when an event occurs. The Mail Group and Recipient can be turned On or Off by highlighting the boxes beside the individual mail group and recipient accounts and pressing the button.

  • Page 59: Sns

    Digital Video Recorder NOTE: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/). Highlight the box beside Authentication and press the button. An Authentication screen appears. Highlight Use and press the button to toggle between On and Off. Highlight the box beside User/ Password and press the button.

  • Page 60: Ftp

    User’s Manual Figure 37: Notification – FTP setup screen. The DVR can be set up to upload event detected image or video clip on an FTP site when an event occurs. The FTP box displays the FTP site information. The Upload File box displays the file format to be uploaded on the FTP site. Highlight the + and press the button to register a FTP site (max.

  • Page 61: Schedule

    Digital Video Recorder Schedule Figure 38: Notification – Schedule setup screen. You can add and edit notification schedules on this screen. Highlight the + and press the button to add a schedule. Highlighting the boxes under the Column heading and pressing the button allows you to edit the information in those boxes.

  • Page 62: Display Setup

    User’s Manual Display Setup Figure 39: Display – OSD setup screen. Highlighting an item and pressing the button toggles that item On and Off. When an item is On, there is a checkmark in the box beside it. The following items can be turned On or Off: ...

  • Page 63: Main Monitor

    Digital Video Recorder Main Monitor Figure 40: Display – Main Monitor setup screen. Highlight the box beside Mode and press the button. You can select between Full Sequence and Cameo Sequence. Pressing the button causes the DVR to sequence cameras, and the DVR can sequence cameras in two SEQUENCE modes: “Full”...

  • Page 64: Spot Monitor

    User’s Manual Spot Monitor Highlight Spot Monitor and press the button, and the Spot Monitor setup screen appears. Figure 38 : Display – Spot Monitor setup screen. Highlight the box in the Channels column and press the button. You can define which cameras display sequentially on the Spot Monitor when in the single-screen display format.

  • Page 65: Chapter 4 - Operation

    Digital Video Recorder Chapter 4 — Operation NOTE: This chapter assumes your DVR has been installed and configured. If it has not, please refer to Chapters 2 and 3. The DVR’s controls are similar to a VCR. As with a VCR, the main functions are recording and playing back video. However, you have much greater control over recording and playing back video.

  • Page 66: Live Monitoring Menu

    User’s Manual Live Monitoring Menu Login/Logout Selecting (Login) in the Live Monitoring menu accesses the Login screen, and you will be asked to select a User and enter the password to log into the system. Selecting (Logout) in the Live Monitoring menu displays the Logout screen asking you to confirm whether or not you want to log out the current user.
  • Page 67 Digital Video Recorder Sequence Selecting (Sequence) in the Live Monitoring menu causes the cameras to display sequentially. It is the same as pressing and holding the button for three seconds or longer. When in one of the multi-view formats, selecting SEQUENCE will cause the DVR to go through predefined screen layouts (Full Sequence).

  • Page 68: Active Cameo Mode

    User’s Manual Search (Search) → All Channels exits the live monitoring mode and enters the search mode.  All Channels: Selecting It is the same as pressing the button. SEARCH (Search) → Triplex enters the Triplex mode. Selecting the camera number plays back video ...

  • Page 69: Figure 42: Ptz Select Camera Menu

    Digital Video Recorder To use the front panel buttons, press the Left and Right arrow buttons to pan left and right. Press the Up and Down arrow buttons to tilt the camera up and down. Press the button to zoom in, and press the button to zoom out.

  • Page 70: Event Monitoring

    User’s Manual Clicking on the left side exits the toolbar. If you want to display the toolbar again, position the mouse pointer at the bottom of the screen. Change the toolbar location by clicking the empty space on the left side of the toolbar and drag it to where you want it located on the screen.

  • Page 71: Status Monitoring

    Digital Video Recorder Status Monitoring Selecting (Status) in the Live Monitoring menu or Search menu displays the Event Status screen. Figure 44: Event Status – Event Status screen. The Event Status screen displays the status of the DVR’s systems and inputs. Events will be highlighted, and related channels or events will flicker for five seconds when detected.

  • Page 72: Recording Video

    User’s Manual Figure 45: Event Status – Storage screen. The Type column displays the type of storage device. The Disk Bad column displays the percentage of bad sectors. Not formatted indicates the device is not formatted. The Temperature column displays the temperature of the storage device. The S.M.A.R.T.

  • Page 73: Panic Recording

    Digital Video Recorder Panic Recording Selecting (Panic) in the Live Monitoring menu or pressing the PANIC button starts panic recording of all cameras, and selecting or pressing the button again stops panic recording. If you set the Panic Recording Duration in the Panic Record setup screen, panic recording will stop automatically according to the preset duration as long as not selected or the button is not pressed.

  • Page 74: Searching Video

    User’s Manual Play/Pause Button: Pressing the button plays back images at regular speed or pauses playing video. Search Button: Pressing the button enters the search mode, and pressing the button again exits the search SEARCH mode. When entering the search mode, video is paused. Pressing the (Play/Pause) button plays back video at regular speed.

  • Page 75: Search Menu

    Digital Video Recorder Search Menu Search (Search) → Event Log Search selects video from the event log. See the following  Event Log Search: Selecting Event Log Search section for details. (Search) → Record Table Search selects using a recording table. See ...
  • Page 76 User’s Manual Panic Selecting (Panic) in the Search menu starts panic recording of all cameras, and selecting again stops panic recording. It is the same as pressing the button. PANIC Camera Menu (Camera Menu) → Zoom and choosing the camera number zooms the current playback image ...

  • Page 77: Event Log Search

    Digital Video Recorder Event Log Search Figure 48: Event Log Search screen. The DVR maintains a log of each time the Alarm Input port is activated. The Event Log Search screen displays this list. Use the arrow buttons to highlight the event for which you would like to see video. There is no determined user authority to display the Event Log Search screen, however, the event video will not be played unless a user with Search authority logs into the system .
  • Page 78 User’s Manual Highlight the box beside Check Time Overlap and press the button. It toggles between On and Off. You will only be able to turn the Check Time Overlap on or off if a user-defined date and time is set to From and To. If the DVR’s date and time have been reset, it is possible for the DVR to have more than one overlapping start and stop time.

  • Page 79: Record Table Search

    Digital Video Recorder Record Table Search < Compact View > < Standard View > < Expanded View > Figure 49: Record Table Search screen. Recording information about video images currently displayed on the screen displays on the recording status bar. A grey vertical line indicates the current search position.

  • Page 80: Motion Search

    User’s Manual Selecting located at the bottom displays the Calendar Search screen. Days with recorded video display on the calendar with white numbers. You can highlight the days with recorded video by using the arrow buttons. Once you have highlighted a day, press the (Play/Pause) button to select it.
  • Page 81 Digital Video Recorder You can also narrow your event search by selecting the Option… button and setting up the new search condition. You can search video from the first to last recorded images, or you can set the start and stop times and dates. Highlight the box beside From and press the button to toggle between On and Off.

  • Page 82: Text-In Search

    User’s Manual Text-In Search Figure 51: Text-In Search screen. The DVR maintains a log of each time there is Text Input. The Text-In Search screen displays this list. Use the arrow buttons to highlight the event for which you would like to see video. Pressing the (Play/Pause) button will extract the video associated with the Text Input and display the first image of the event.

  • Page 83: Bookmarks

    Digital Video Recorder Highlight the box beside From and press the button to toggle between On and Off. When set to Off, you can enter a specific Date and Time. When set to On, the search will be from the first recorded image. When highlighting pressing the button the bookmark list displays and the bookmark point you selected will be the starting date and time.

  • Page 84: Clip-Copy

    User’s Manual Clip-Copy Video clips can be copied on an external USB hard disk or flash drive. The copied video clips can be viewed on computers running Microsoft Windows 2000, XP, Vista or 7. Refer to the Appendix – USB Hard Disk Drive Preparation for information on preparing the external drive for clip copy.
  • Page 85 Digital Video Recorder NOTE: When copying video clips on a NetFS site, you cannot check the disk volume of the NetFS site for the video clips to be uploaded. The DVR displays the volume as 30GB regardless of the actual disk volume, and limits the file size for clip copy to 30GB.

  • Page 86: Print

    User’s Manual Print You can print images on a printer. Connect a PostScript™ printer, or external hard disk drive or flash drive to one of the USB ports. If you enabled the NetFS function (Network menu > NetFS tab), you can upload the images on the registered NetFS site.

  • Page 87: Appendix

    Digital Video Recorder Appendix USB Hard Disk Drive Preparation NOTE: The following description is for preparing a USB hard disk drive under Windows 2000. Preparing a USB hard disk drive under Windows XP, Window Vista and Window 7 is almost identical to Windows 2000. Connect the USB hard disk drive to your computer using the USB Cable.

  • Page 88: Search Example Ii

    User’s Manual Search Example II 123456789012345678901234567890123456789012345678901234567890 Item Unit price amount ================================================== Coke 2.20 | 1(s) 2.20 Fanta 2.20 | 1(s) 2.20 Hotdog 3.50 | 3(s) 10.50 Pepsi 1.95 | 1(s) 1.95 ================================================== total : $ 16.85 Thank you~~ In the above text-in data, you can find that the comparison value is located at 17th (Unit price, $ mark will be ignored automatically), 28 (Qty) and 40 (amount) characters (including spaces) from the left, but the value of amount...

  • Page 89: Webguard

    Digital Video Recorder WebGuard WebGuard allows you to access a remote DVR, monitor live video images and search recorded video using Internet Explorer web browser anytime from virtually anywhere. Computer system requirements for using the WebGuard program are: ® ® ®...
  • Page 90 User’s Manual...

  • Page 91: Web Monitoring Mode

    Digital Video Recorder NOTE: There might be a problem with screen display or screen update due to low image transmission speed when using the Microsoft Windows Vista or higher operating system. In this situation, it is recommended that you disable the Auto Tuning capability of your computer. Run the Command Prompt with elevated administrator permissions (Go to the Start Menu ...

  • Page 92: Web Search Mode

    User’s Manual ⑩ Click the to save the current image as a bitmap or JPEG file format. ⑪ Click the to set up the image drawing mode, OSD display and beep on/off. You can adjust the display speed by changing the image drawing mode, select OSD information to be displayed on the screen, and turn the DVR’s internal buzzer on and off from a remote site.
  • Page 93 Digital Video Recorder ④ The DVR information window displays the time information of recorded data on the remote DVR and login information of WebGuard. ⑤ Click the to blur, sharpen, equalize and interpolate playback images. Click the to zoom out or zoom in the recorded image. Click the to adjust the brightness of the recorded images.

  • Page 94: Time Overlap

    User’s Manual Time Overlap If the DVR’s time and date have been reset to a time that is earlier than the existing recorded video, it is possible for the DVR to have more than one video stream in the same time range. In this case, you can search overlapping video streams individually by selecting a specific segment.

  • Page 95: System Log Notices

    Digital Video Recorder System Upgrade Related Clip Copy Related Description Description USB device is not connected. Unsupported file system. USB device is being used. Verify failed. Unsupported file system. System is busy clip copying. System Log Notices Boot Up Clear All Data Shutdown Clear Disk Restart...

  • Page 96: Map Of Screens

    User’s Manual Map of Screens MENU SYSTEM General Date/Time User Storage System Event RECORD General Schedule Pre-Event EVENT Motion Alarm-In Video Loss Video Blind Text-In CAMERA General DEVICE Audio Alarm-Out Remote Control NETWORK General RTSP WebGuard NetFS NOTIFICATION Callback Mail Schedule DISPLAY Main Monitor...

  • Page 97: Troubleshooting

    Digital Video Recorder Troubleshooting Problem Possible Solution  Check power cord connections. No Power  Confirm that there is power at the outlet.  Check camera video cable and connections.  Check monitor video cable and connections.  Confirm that the camera has power. No Live Video ...
  • Page 98 User’s Manual CONNECTORS Video Input Composite or HD-TVI: 8 or 16 BNC HDMI: 1 HDMI Monitor Output VGA: 1 VGA SPOT (Composite): 1 BNC Audio In 4 RCA connector Audio Out 1 RCA connector Alarm Input/Output Terminal Blocks Ethernet Port RJ-45 eSATA Port eSATA...
