- Page 1 PCE-LES 500 PORTABLE LED STROBOSCOPE USER MANUAL...
-
Page 2: Warning
Eye damage may result from direct viewing of the lamp used in this unit. Do Not Operate the unit in Explosive Areas. Servicing For repair, consult factory or authorized service center. Portable LED Stroboscope PCE-LES 500... -
Page 3: Table Of Contents
RIGGER HASE ELAY F02 ............... 6 XTERN RIGGER .......... 6 RIGGER NPUT ONNECTOR SSIGNMENTS Ⅲ PAUSE FUNCTION ................7 Ⅳ INTENSITY CONTROL ..............7 Ⅴ CHARGING THE BATTERY .............. 7 Ⅵ PACKING LIST ..................8 Portable LED Stroboscope PCE-LES 500... -
Page 4: Ⅰ Introduction

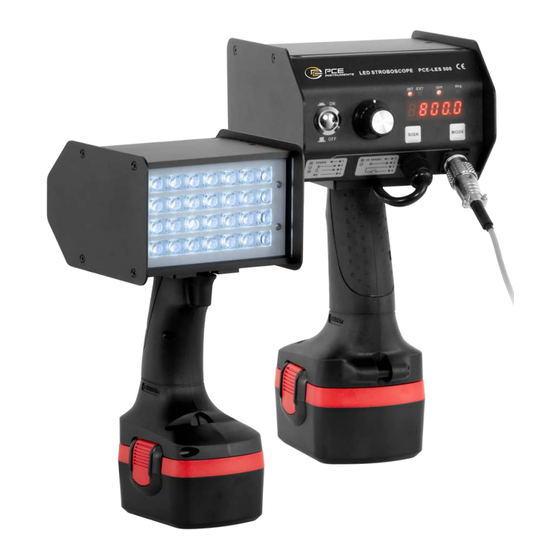

Ⅰ Introduction The PCE-LES 500 Metal Surface Inspection Stroboscope is a compact industrial surface inspection spotlight, Widely used in packaging, printing, paper and other industries. The PCE--LES 500 has the following features: Operates from a 12V to 14 Volt DC power source. -
Page 5: Ⅱ Operation
Ⅱ Operation The PCE-LES 500 has two trigger mode. Internal Trigger Mode: In this mode, the rate of strobe flashing is set by the flash rate knob on the control panel Mode display ‘-F00-’ External Trigger Mode: In this mode, the rate of strobe flashing is set by sensor signal, two kinds of external trigger mode, display ‘-F01-’... -
Page 6: How To Change Flash Rate
: Parameter d pattern External Trigger Phase Delay In Mode ‘F01’, Press key ‘MODE’, Stroboscope display ‘P 0’, Then press key ‘+’ or ‘-’ or rotate knob to change the phase delay degree. Portable LED Stroboscope PCE-LES 500... -
Page 7: Extern Trigger Mode F02
‘C’ with rotate knob Trigger Input Connector Pin Assignments Pin1: Sensor Power supply ,DC 12V 50mA provided by stroboscope Pin2: 0V, Power ground Pin3: External trigger input Pin4: No use Portable LED Stroboscope PCE-LES 500... -
Page 8: Ⅲ Pause Function
When the timer value is set to zero, the PAUSE fuction is invaid. Factory setting is 5 minutes. Ⅳ Intensity Control The PCE-LES 500 is available with an optional integrated intensity control for adjusting the lamp intensity over a range of 0 to 100.Press the encoder Knob until display ‘L x’.Release the... -
Page 9: Ⅵ Packing List
It is nessary to use the original adapter. CAUTION: Ⅵ Packing list 1 x Stroboscope / Stroboscope Light PCE-LES 500 1 x Ni-MH battery charger 2 x Ni-MH 3000 mAh battery 1 x 4-pin coupling 1 x rubber grommet... - Page 10 For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. ⅥII PCE Instruments contact information Germany...
