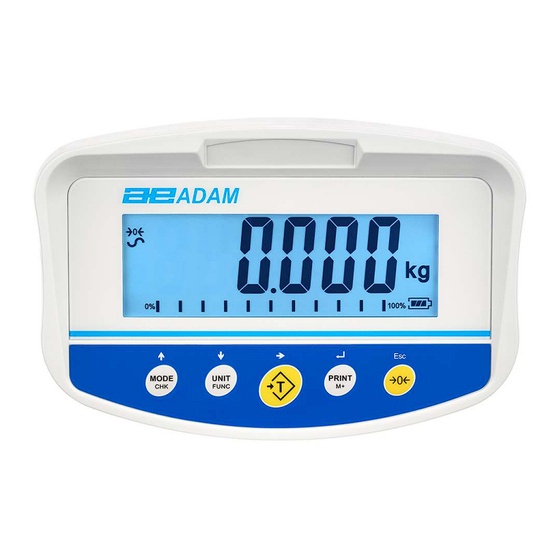

- Page 1 Adam Equipment Weighing Indicators GK-S INDICATOR (P.N.30566 16940, Revision A2, July 2024) software：V1.03 & above © Adam Equipment Company 2023...
- Page 2 Easy Reference: Model name of the indicator: Serial number of the unit: Software revision number (Displayed when power is first turned on): Date of Purchase: Name of the supplier and place: © Adam Equipment Company 2023...
-
Page 3: Table Of Contents
8.4.3 CHECK-COUNTING ....................12 9. PARAMETER SETTINGS .....................13 9.1 DATE SETTING ......................13 9.2 TIME SETTING .......................13 9.3 BACKLIGHT SETTING ....................13 9.4 AUTO POWER-OFF ......................14 9.5 CHECK THE BEEP SETTING OF WEIGHING BUZZER ..........14 9.6 UNIT SWITCH SETTING ....................15 © Adam Equipment Company 2023... - Page 4 13.6 FILTER PARAMETER SETTING ....................37 13.7G1/G2 GRAVITY VALUE SETTING ................37 13.8 LINEAR CALIBRATION ....................37 13.9 MANUAL TARE SETTING .....................38 13.10 DECIMAL POINT DISPLAY MODE SETTING .............39 13.11 FORMATTING ......................39 14. FAILURE CODE .........................40 15. WARRANTY INFORMATION ....................42 © Adam Equipment Company 2023...
-
Page 5: Introduction
GK-S is supplied with a DB9 male RS232 two-way communication interface and a built-in clock. GK-S has a strong ABS housing, which is suitable for various industrial environments. © Adam Equipment Company 2023... -
Page 6: Specifications
Overall 260 x 170 x 115mm Dimensions 10.2” x 6.7” x 4.5” (wxdxh) Net Weight 0.75kg function Weighing、parts counting、check counting、percentage、check weighing、accumulation、accumulation statistics interface DB9 male, RS-232 bi-directional interface English, French, Spanish and German selectable text. © Adam Equipment Company 2023... -
Page 7: Installaion
Avoid air movement such as from fans or opening doors. Do not place near open windows or air- conditioning vents. Keep the scales clean. Do not stack material on the scales when they are not in use. © Adam Equipment Company 2023... -
Page 8: Connection
4 wires from the load cells. The Excitation and sense wires are connected together near the load cell. For less exacting applications you can connect the excitation to the sense at the connector. © Adam Equipment Company 2023... -
Page 9: Keypad
If accumulation is turned on, Settings menu, set the print press in the 0-bit state to mode cumulative baud rate, retrieve the accumulated data parity check print language stored in the product product ID user ID format, etc. © Adam Equipment Company 2023... -
Page 10: Display
The scale is in Parts counting mode Accumulated data is stored in the indicator. With an internal rechargeable battery, the battery charge is displayed, and the more black bars, the more sufficient the battery charge. © Adam Equipment Company 2023... -
Page 11: Regular Operation
Press [Tare/↵] to remove the tare value when weighing. Weight that can be weighed after tared = full range-tare weight. Tare weight will be stored. 6.4 PRINT Press the PRINT in the weighing interface to sending the results to the printer or computer. © Adam Equipment Company 2023... -
Page 12: Calibraton
PRINT to confirm. The weight of the calibration weight will be displayed, put the weight of the corresponding weight on the pan, and then press the PRINT to complete the weight calibration. © Adam Equipment Company 2023... -
Page 13: Weighing
In percent weighing mode，press UNIT in turn to cycle to switch weight and percent weighing. Press MODE to return to normal weighing. 8.3 NORMAL WEIGHING MODE WEiHt In the mode menu，press↑or↓ to find ,then press to go to the normal weighing interface. © Adam Equipment Company 2023... -
Page 14: Check-Weighing
In percent weighing mode，Set the percentage values of the lower limit and the upper limit according to the method in 8.4.1. 8.4.3 CHECK-COUNTING In the count weighing mode, just set the number of parts with lower limit and upper limit according to the method in 8.4.1. © Adam Equipment Company 2023... -
Page 15: Parameter Settings
Press and hold UNIT/FUNC in weighing interface to enter setup menu（ Skip this step if you have entered the setup menu）. Press MODE↑or UNIT↓ until is displayed. Press PRINT to confirm to enter the backlight setting menu. © Adam Equipment Company 2023... -
Page 16: Auto Power-Off
Press PRINT to confirm the setting of the prompt tone of the weighing buzzer. Press MODE↑or UNIT↓ to select the a prompt tone of the weighing buzzer required by the user. © Adam Equipment Company 2023... -
Page 17: Unit Switch Setting
Ib:oz Un off lb：OZ unit oFF Unit After setting all unit switches, the product will be returned to Press →0← to return to weighing interface, the parameter setting is now complete。 © Adam Equipment Company 2023... -
Page 18: Rs232 Communication Interface
In weighing mode, the scale outputs the following contents： 0.395 kg <cr><lf> In counting mode, the scale Output the following contents: 10pcs <cr><lf> In percentage mode, output the following contents: 9.20 ％ <cr><lf> © Adam Equipment Company 2023... -
Page 19: Format 1
35.8060 g/pcs <cr><lf> Net wt.(or Gross Wt.) 10pcs <cr><lf> <cr><lf> <cr><lf> In percentage mode, output the following contents: It is available if AC on <cr><lf> 10.09 ％ <cr><lf> Net wt.(or Gross Wt.) <cr><lf> <cr><lf> © Adam Equipment Company 2023... -
Page 20: Format 2
Scale ID 00000 <cr><lf> User ID 00000 <cr><lf> <cr><lf> It is available if AC on <cr><lf> 0.036 kg <cr><lf> Net wt.(or Gross Wt.) 3.56494 g/pcs <cr><lf> Net wt.(or Gross Wt.) 10pcs <cr><lf> <cr><lf> <cr><lf> © Adam Equipment Company 2023... -
Page 21: Format 3
TIME 13:51:28 <cr><lf> <cr><lf> Scale ID 00000 <cr><lf> User ID 00000 <cr><lf> <cr><lf> It is available if AC on <cr><lf> 0.315 kg <cr><lf> Tare Wt 0.773 kg <cr><lf> Gross Wt 1.088 kg <cr><lf> <cr><lf> <cr><lf> © Adam Equipment Company 2023... - Page 22 TIME 14:05:57 <cr><lf> <cr><lf> Scale ID 00000 <cr><lf> User ID 00000 <cr><lf> <cr><lf> It is available if AC on <cr><lf> 115.15 <cr><lf> Tare Wt 0.773 kg <cr><lf> Gross Wt 1.169 kg <cr><lf> <cr><lf> <cr><lf> © Adam Equipment Company 2023...
-
Page 23: Accmulative Data Output Format Stored Internally
TIME 14:55:43 <cr><lf> <cr><lf> Scale ID 00000 <cr><lf> User ID 00000 <cr><lf> <cr><lf> ------------------ <cr><lf> Total <cr><lf> <cr><lf> 0.036 kg <cr><lf> 2.606 kg <cr><lf> Average 0.985 kg <cr><lf> Total Wt 9.850 kg <cr><lf> <cr><lf> <cr><lf> © Adam Equipment Company 2023... - Page 24 Weight 2.606 kg <cr><lf> <cr><lf> Weight 0.417 kg <cr><lf> <cr><lf> Weight 0.246 kg <cr><lf> <cr><lf> ------------------ <cr><lf> <cr><lf> 0.036 kg <cr><lf> 2.606 kg <cr><lf> Average 0.985 kg <cr><lf> Total Wt 9.850 kg <cr><lf> <cr><lf> <cr><lf> © Adam Equipment Company 2023...
- Page 25 27/07/2023 <cr><lf> TIME 15:35:56 <cr><lf> <cr><lf> Scale ID 00000 <cr><lf> User ID 00000 <cr><lf> <cr><lf> ------------------ <cr><lf> Total <cr><lf> <cr><lf> 10pcs <cr><lf> 30pcs <cr><lf> Average 14pcs <cr><lf> Total Wt 1.123 kg <cr><lf> <cr><lf> <cr><lf> <cr><lf> © Adam Equipment Company 2023...
- Page 26 <cr><lf> Weight 30pcs <cr><lf> <cr><lf> Weight 10pcs <cr><lf> <cr><lf> Weight 16pcs <cr><lf> <cr><lf> Weight 10pcs <cr><lf> <cr><lf> ------------------ <cr><lf> <cr><lf> 10pcs <cr><lf> 30pcs <cr><lf> Average 14pcs <cr><lf> Total Wt 1.123 kg <cr><lf> <cr><lf> <cr><lf> <cr><lf> © Adam Equipment Company 2023...
- Page 27 <cr><lf> Scale ID 00000 <cr><lf> User ID 00000 <cr><lf> <cr><lf> ------------------ <cr><lf> Total <cr><lf> <cr><lf> 33.21 % <cr><lf> 132.84 % <cr><lf> Average 73.90 % <cr><lf> Total Wt 2.040 kg <cr><lf> PERCENT 517.27% <cr><lf> <cr><lf> <cr><lf> © Adam Equipment Company 2023...
- Page 28 <cr><lf> <cr><lf> Weight 33.27 % <cr><lf> <cr><lf> Weight 82.48 % <cr><lf> <cr><lf> ------------------ <cr><lf> <cr><lf> 33.21 % <cr><lf> 132.84 % <cr><lf> Average 73.90 % <cr><lf> Total Wt 2.040 kg <cr><lf> PERCENT 517.27% <cr><lf> <cr><lf> <cr><lf> © Adam Equipment Company 2023...
-
Page 29: Note
Print date Date Date Datum Fecha Print time Time Heure Zeit Hora Scale ID number Scale ID Bal ID Waagen ID Bal ID User ID Number User ID Util ID Nutzer ID Usuario ID © Adam Equipment Company 2023... -
Page 30: Input Commands Format
The display shows zero. P<cr><lf> Prints the results to a PC or printer using the RS-232 interface. It also adds the value to the accumulation memory if the accumulation function is not set to automatic. © Adam Equipment Company 2023... -
Page 31: Communication Parameter Setting
No parity even Parity Even parity Odd parity LAnG ENGLIS English FRENCH French SPAN Spanish GERMAN German s-id 000000 u-id 000000 Format single Single format for 1 Format 1 for 2 Format 2 © Adam Equipment Company 2023... -
Page 32: Call And Operation Of Accumulated Data
Press PRINT to output the accumulated data to a computer or printer (See Chapter 10.2.4 for the data format) Press→0← to clear all the accumulated data before Press →T to exit the statistics interface . © Adam Equipment Company 2023... -
Page 33: Dealer Parameter Setting
Press MODE↑ or UNIT↓ to scroll through the menu or adjust the parameters, adjust the value when entering the number, and press T→ to move the flashing digital position. © Adam Equipment Company 2023... - Page 34 ％ (default） ％ ％ ％ ％ Filter Sloy fast This gravity value generally does not need to be （Factory gravity value） set, and the gravity value set after calibration will be invalid （Location gravity value） © Adam Equipment Company 2023...
-
Page 35: Factory Menu
Range and Capa readability Auto-z Auto-zero Zeroing range on p-zeRo start-up Keypad zero range FiLER filter Gravity value of calibration site Location gravity value Linear Linear calibration m-taRE Manual tare Decimal display mode reset formatting © Adam Equipment Company 2023... -
Page 36: Analog-To-Digital
T→ to move the flashing digital position to input the desired range ,Pay attention to the position of the decimal point when inputting the range. For example, the range is 30kg with 3 decimal places, and the range should be 30.000 instead of 0.0030. © Adam Equipment Company 2023... -
Page 37: Set Automatic Return To Zero
PRINT ¿ Press to confirm to enter the setting menu of boot zero range , press the MODE↑ or the UNIT↓ to select one of the following parameters, and then press PRINT ¿ to confirm. © Adam Equipment Company 2023... -
Page 38: Keypad Zero Range Setting
Zero range of the zero key is within 4% of the range. ％ Zero range of the zero key is within 5% of the range. ％ （default） Zero range of the zero key is within 10% of the range. ％ © Adam Equipment Company 2023... -
Page 39: Filter Parameter Setting
© Adam Equipment Company 2023... -
Page 40: Manual Tare Setting
Press MODE↑ or UNIT↓ after entering factory menu, scroll through until Is displayed. PRINT ¿ Press to confirm to enter the filter parameter setting menu, press the MODE↑ or UNIT↓ to select one of the following parameters, and then press PRINT ¿ to confirm. © Adam Equipment Company 2023... -
Page 41: Decimal Point Display Mode Setting
PRINT Press to confirm to enter the format menu, and press MODE↑or UNIT↓ to adjust the parameters to PRINT Press the to confirm, The product formatting is now complete. © Adam Equipment Company 2023... -
Page 42: Failure Code
Check whether the operating voltage is too low. The contact of indicator loadcell Unstable reading Unstab connector is not very good There is interference inside the loadcell AD chip is damaged © Adam Equipment Company 2023... - Page 43 The calibration weight is exceed the full scale and be FAIL H too large consistent with the set weight of the calibrated weight. Clear the accumulated data inside Internal storage is full ADD ER the product. © Adam Equipment Company 2023...
-
Page 44: Warranty Information
This product may include a rechargeable battery that is designed to be removed and replaced by the user. Adam Equipment warrants that it will provide a replacement battery if the battery manifests a defect in materials or workmanship during the initial period of use of the product in which the battery is installed. - Page 45 State of California to cause cancer and birth defects or other reproductive harm. Adam Equipment products have been tested with, and are always supplied with mains power adaptors which meet all legal requirements for the intended country or region of operation, including electrical safety, interference and energy efficiency.
- Page 46 Module D – Approved by RISE Research Institutes of Sweden AB | Certification (NB 0402), Box 857, 50115 Boras, Sweden ADAM EQUIPMENT is an ISO 9001:2015 certified global company with more than 40 years’ experience in the production and sale of electronic weighing equipment.
- Page 47 © Copyright by Adam Equipment Co. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior permission of Adam Equipment. Adam Equipment reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
