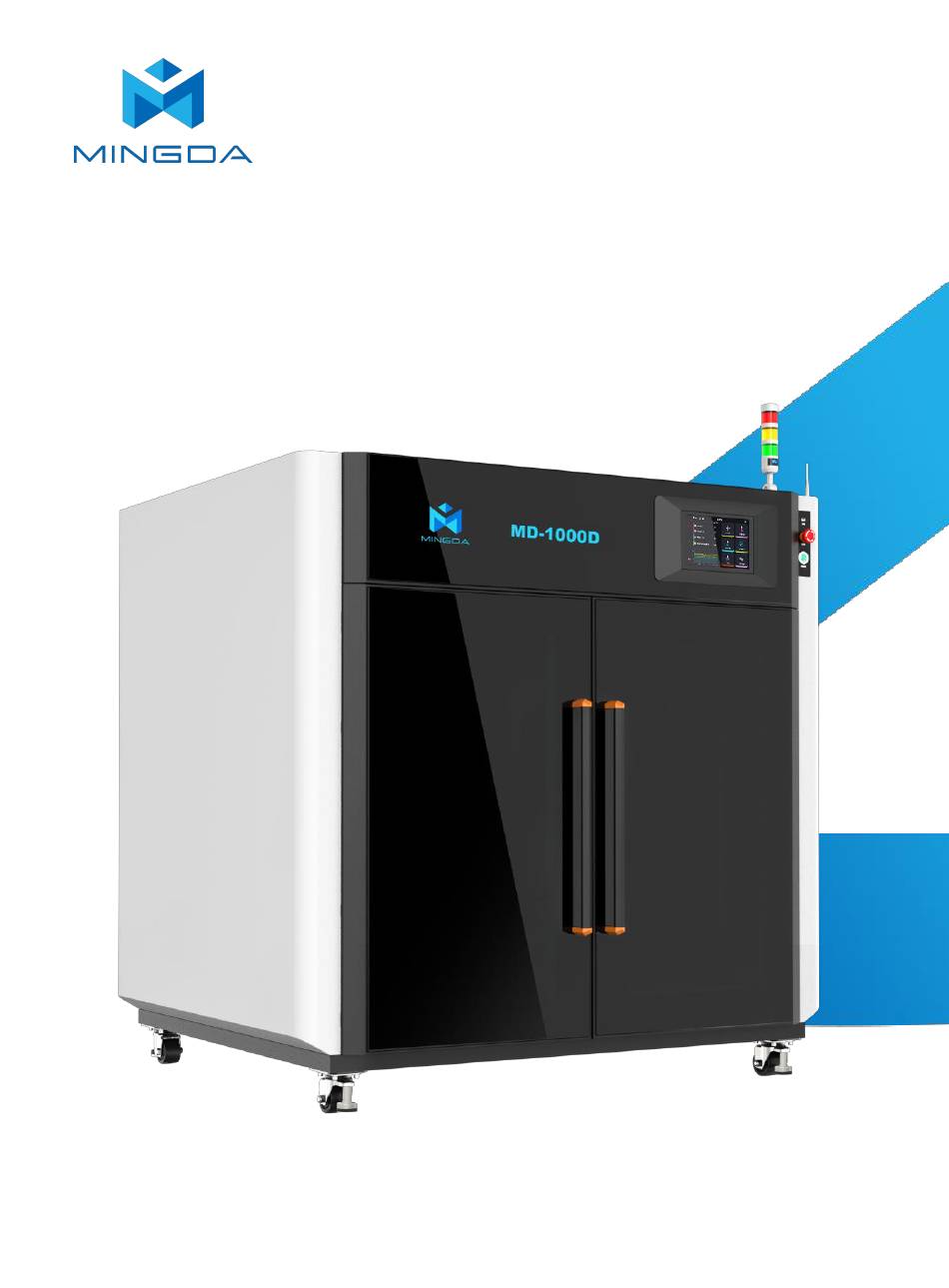

- Page 1 User Manual [MD-1000D 3D Printer] *Please read this guide carefully before using this printer Shenzhen MINGDA Technology Co.,Ltd V1.3...
- Page 2 Thank you for choosing MINGDA Technology's products! For the best experience, please read this user manual carefully and follow the instructions to operate the printer. If you encounter any issues with the printer, please contact us using the contact information provided at the end of this user manual.
-
Page 3: Table Of Contents
Contents 1 Overview …………………………………………………………………………………………………………………..2 Device Introduction ………………………………………………………………………………......Device Parameters ……………………………………………………………………………………………...….......... Packing List ……………………………………………………………………………………………………………........... 3 Operational Steps ……………………………………………………………………………………......Part assembly ..……………………………………………………………………………………………..........Install the warning light ………………………………………………………………………………..........Install the antenna ………………………………………………………………………………..……..........Power on ………………………………………………………………………………....……..........Power off ………………………………………………………………………………....……..........Startup Configuration ………………………………………………………………………………………..........Printer Calibration …………………………………………………………………...………...…............ Z Endstop ………………………………………….………………………………..……........…………..………….. -
Page 4: Overview
Thank you for choosing our product, and we wish you a pleasant experience! 2. Device Introduction Device Parameters Basic Parameters Product Model MD-1000D Machine Dimensions 1680*1365*1665 mm Max. Build Dimensions 1000*1000*1000mm Print Technology... -
Page 5: Packing List
Packing List Tool List Indicator light & screw U-disk Nozzle*2 Diagonal pliers 7mm Sleeve If you choose high temperature filament, we will provide a drying box. Allen wrench Antenna Note: The picture is for reference only. When the real thing is inconsistent with the picture, the actual object shall prevail. - Page 6 Precautions for the Use of High Temperature Filament Note: Please put the high-temperature filaments in a dry box for printing, otherwise humidity will affect the print quality. If the high-temperature filament is not used up, put it in an aluminum foil bag in time. If the filament is wet or the surface of the print has obvious drawing, it means that the filament is damp, and it needs to be dried in an industrial oven before use.
-
Page 7: Operational Steps
3. Operational Steps Part assembly 1. Install the indicator light. Green light: Indicates that the printer is working properly. light: Indicates that the printer is in an emergency stop or fault state, requiring immediate attention or repair by the user. For example, overload, short circuit, or error message on the screen. -
Page 8: Power On
3. Power on Insert a power socket Press the power button to turn on the printer 4. Power off When you turn off the printer, please don't press the power directly! Click "Settings-System-Shutdown-Printer" to turn off the printer Click the "System" Click the "Settings"... -
Page 9: Startup Configuration
Startup Configuration 1. Select Language and Time Zone Select timezone, click to confirm, and Click to choose the language, click to next step. and click to proceed to the [Time zone settings will take effect after next step. connecting to Wi-Fi and restarting the system.] Note: If you find that the printer cannot detect your WiFi signal, you can click to skip this step for... -
Page 10: Printer Calibration
Printer Calibration Click "Calibrate " Tip: Please follow the sequence shown in the diagram to calibrate step by step. Z Endstop → Z Calibrate → Leveling → XY Offset → Z Offset → Input Shaper 1. Z Endstop Adjust the position of the photoelectric switch. Click "Start"... -
Page 11: Auto Bed Leveling
2. Z Calibrate Click "Start" , wait Z axis calibrating Click "Z Calibrate" and click "Accept" and confirm While moving the A4 paper back and forth, Put an A4 paper between the nozzle and adjust . When you feel slight heated bed. -
Page 12: Xy Axis Offset Calibration
4. XY Axis Offset Calibration Tips: Wipe the nozzle clean before calibration to avoid any interference during the process. Click the "Calibration" Click "XY Offset" After the camera Led light up, Click "Start" , Adjust the left extruder nozzle to align with and the left extruder will move to the the crosshairs of the screen and click... -
Page 13: Z Axis Offset Calibration
5. Z Axis Offset Calibration Click "Z Offset" Click “Start” to start Z offset automatically After finishing, click “Accept” While calibrating the Z-axis offset, the extruder confirm will move towards the sensor located the left side of the camera. Safety Reminder: To ensure that the nozzle correctly lands on the sensor, please calibrate the XY axis before calibrating the Z axis. -
Page 14: Operating Interface Introduction
4. Operating interface introduction Main interface Primary interface Explain Temperature Temperature display area. Time Time display. Move Adjust the value of the XYZ axis. Preheat Pre-set nozzle & hotbed’s temperature. Extrude To unload or load filament. Calibrate Printer Calibration Settings Printer’s printing value adjustment. - Page 15 Calibrate: Secondary interface Explain Z Endstop Adjust the position of the photoelectric switch. Z Calibrate Calibrate Z offset Leveling Auto-leveling Offset Calibrate XY axis Offset Calibrate Z axis Input Shaper Test the resonance compensation value. Ajust Z offset Pos Ajust Z offset Pos...
- Page 16 Settings: Secondary interface Explain Network To connect Wi-Fi Cooling fan adjustment Leds Turn on/off Light System Machine shutdown, restart, reset function Manual Manual Troubleshooting Troubleshooting Cautions Cautions Includes some basic settings such as time, language, More screen timeout, notification sound toggle, and automatic shutdown after printing completion.
- Page 17 Printing Interface: Figure 1 Figure 2 Secondary Explain interface Cancel Stop printing Pause Pause printing Adjust Z-offset, Printing Speed, Printing Flow Fine Tuning [Please refer to Figure 1.] Basic setting, browse camera, adjust cooling fan, light and Settings Exclude object. [Please refer to Figure 2.]...
-
Page 18: Insert Filament
5. Insert filament 1. Hang two volumes of PLA Filament on the scraping pole in the left and right Filament box, and insert the Filament from the inlet port until the Filament are exposed to the printed head along the guide pipe. 2. - Page 19 3. Load Filament for the Left and Right Extruders Click Extruder “T0” , select Click the "Extrude" Distance “100mm” and Speed”5”, click Load Click Accept , hot end will be Click Extruder “T1” , repeat the heated up automatically. step 2 and 3 again. 4.
-
Page 20: Unload Filament
6. Unload Filament Click the "Extrude" Select the extruder you want to unload filament and heat it up to 240°C. Click “unload” and wait for the extruder to unload the filament automatically. -
Page 21: Resume Printing
7. Resume Printing 1. Resume printing after power failure When the printer is in the midst of the printing process, power outages may occur at times. This printer is equipped with a resume printing function to assist you in resuming the print from the point of interruption. After power restored, turn on the Please wait the printer resuming. -
Page 22: Slicing Software Installation And Usage
8. Slicing Software Installation and Usage Installation: Search "www.3dmingda.com/download" in any Broswer. Download "MINGDA OrcaSlicer" Configuration: Upon the first run of Mingda OrcaSlicer, you will enter the configuration wizard. Select the desired filament type. Choose the MD-1000D model and click "Confirm."... -
Page 23: Usage
Usage Click the "Prepare" Select the printer model, filament type and printing parameter. Click , upload your STL in your slicer, adjust your model parameter, after finishing, click “Slice plate” to create the Gcode file. -
Page 24: Printing
Printing Local Printing Find the folder and Click the arrow Select the test gcode which Insert the U-disk, then click the on the right was preset in the U-disk. "Print" . LAN Printing Ensure that the printer and the computer host are on the same local network. Click "Settings"... - Page 25 LAN Printing File Transfer: Click the dropdown icon in the top right corner , select "Print." Click "Print" and choose "Upload and Print".
- Page 26 Device Connection After successful connection, click on "Device" Enter the control interface below the diagram 1.Task List 2.Temperature Control 3.Camera 5.Printer Limits 6.Console 4.Movement Control 1. Task List: Drag G-code files to this task list for printing. 2. Temperature Control: Displays machine temperature changes and allows pre-setting nozzle and bed temperatures.
-
Page 27: Print Mode
Print Two Colors Printing size: 1000 * 1000 * 1000mm Selecting the MingDa 1000D 0.4 nozzle (Dual) 1. In the filaments column on the left side of the interface, click "+" to add another filament. 2. Choose and modify the filament information. - Page 28 Double extrusion: Start the Prime tower Because there is always one printer in standby mode during the printing process, it is easy to cause defects such as wire drawing and material leakage. Prime tower can solve this problem, the extruder will print a prime tower before each layer printing. Any material leakage will be printed on the tower, effectively avoiding the phenomenon of material leakage when replacing the extruder.
-
Page 29: Printing Support
Printing Support Printing size: 1000 * 1000 * 1000mm Selecting the MingDa 1000D 0.4 nozzle (Dual) 1. On the left side of the interface, in the filaments column, click "+" to add another filament. 2. Choose and modify the filament information. -
Page 30: Printing
Printing Open the settings interface in the Printer tab, and check 'Auxiliary Part Cooling Fan' under "Basic Information-Accessory". Due to the different feature of filament, if you do not need an auxiliary fan or need to adjust the fan speed, please go to the Filament tab, open the settings interface, and choose Cooling-Auxiliary Part Cooling Fan. -
Page 31: Maintenance And Care
0.2mm during the first layer printing, it will significantly reduce adhesion to the platform, and re-leveling is needed. 2.In MingDa Orcaslicer, set the platform adhesion by choosing the adhesion type as "Brim." This helps enhance adhesion and prevent warping issues. - Page 32 Shenzhen MINGDA Technology Co., Ltd Tel: 0086-13530306290 Email: support@3dmingda.com www.3dmingda.com Address: No. 20, Dahe Industrial Zone, Longhua District, Shenzhen, 518110, Guangdong Province, China. Official Website Customer Support...
