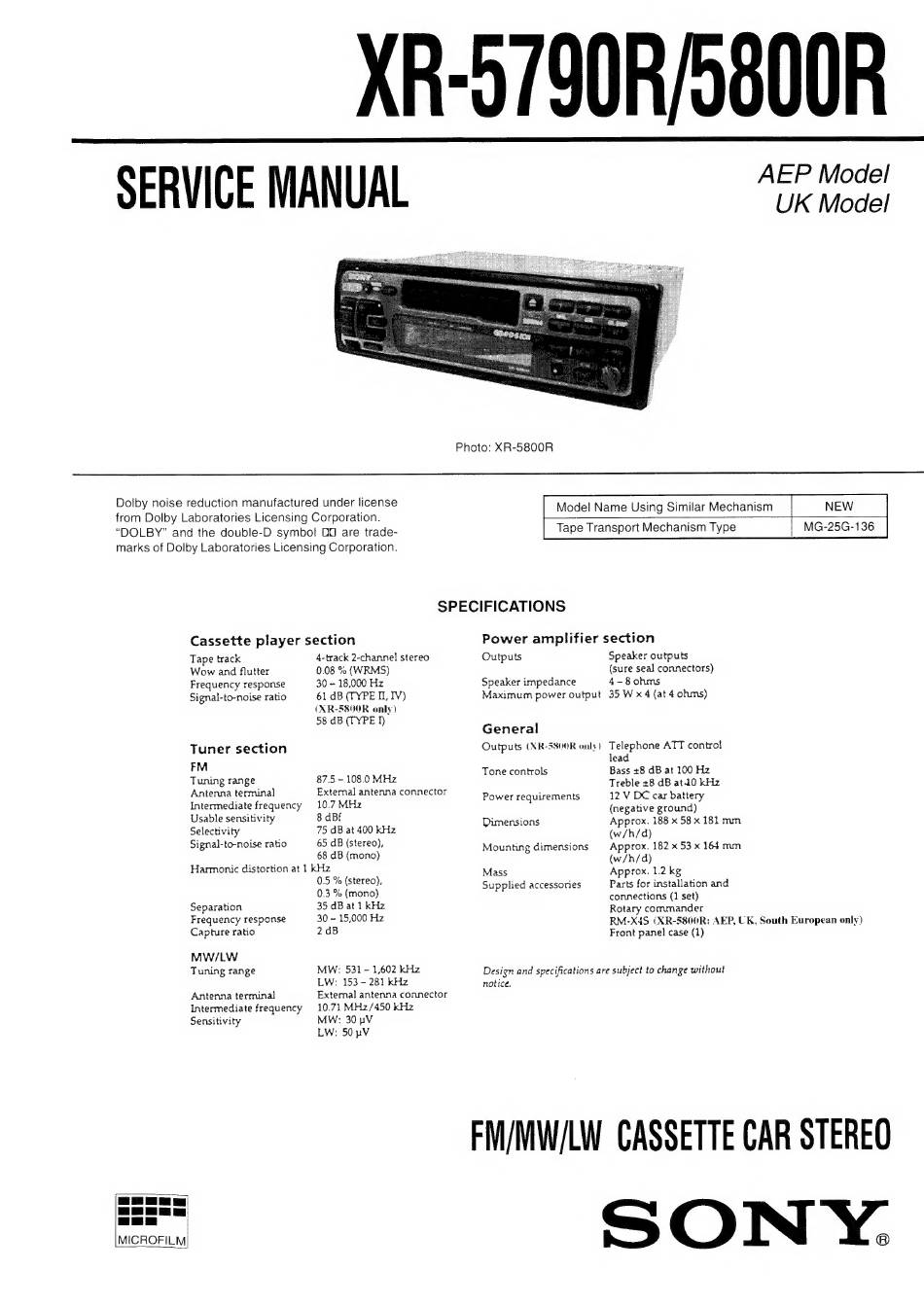

Sony XR-5790R Service Manual

XR-0790R/o800R
SERVICE MANUAL
Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol OO are trade-
marks of Dolby Laboratories Licensing Corporation.
MICROFILM
Photo: XR-5800R
Model Name Using Similar Mechanism
AEP Model
UK Model
NEW
SPECIFICATIONS
Cassette player section
Tape track 4-track 2-channel stereo
Wow and flutter 0.08 % (WRMS)
Frequency response 30 - 18,000 Hz
Signal-to-noise rato 61 dB (TYPE I, IV)
(XR-5800R only)
58 dB (TYPE 1)
Tuner section
FM
Tuning range 87.5 - 108.0 MHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz
Usable sensitivity 8 dBf
Selectivity 75 dB at 400 kHz
Signal-to-noise ratio 65 dB (stereo),
68 dB (mono)
Harmonic distortion at 1 kHz
0.5 % (stereo),
0.3 % (mono)
Separation 35 dB at 1 kHz
Frequency response 30 = 15,000 Hz
Capture ratio 2dB
MW/LW
Tuning range MW: 531 - 1,602 kHz
LW: 153 - 281 kHz
External antenna connector
10.71 MHz/450 kHz
MW: 30 pV
LW: 50 2V
Antenna terminal
Intermediate frequency
Sensitivity
Power amplifier
Outputs
Speaker impedance
Maximum power output
General
Outputs (XR-S800R only)
Tone controls
Power requirements
Dimensions
Mounting dimensions
Mass
Supplied accessories
Design and specifications a
notice.
Tape Transport Mechanism Type
section
Speaker outputs
(sure seal connectors)
4-8ohms
35 W x 4 (at 4 ohms)
Telephone ATT contro!
lead
Bass +8 dB at 100 Hz
Treble +8 dB ati0 kHz
12 V DC car battery
(negative ground)
Approx. 188 x 58 x 181 mm
(w/h/d)
Approx. 182 x 53 x 164 mm
(w/h/d)
Approx. 1.2 kg
Parts for installation and
connections (1 set)
Rotary commander
MG-25G-136
RM-X4S (XR-5800R: AEP, UK, South European only)
Front panel case (1)
re subject to change without
FM/MW/LW CASSETTE CAR STEREO
