Bromic Heating SVM1250SD-NR Instruction Manual

Semi verticals and full height multidecks
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

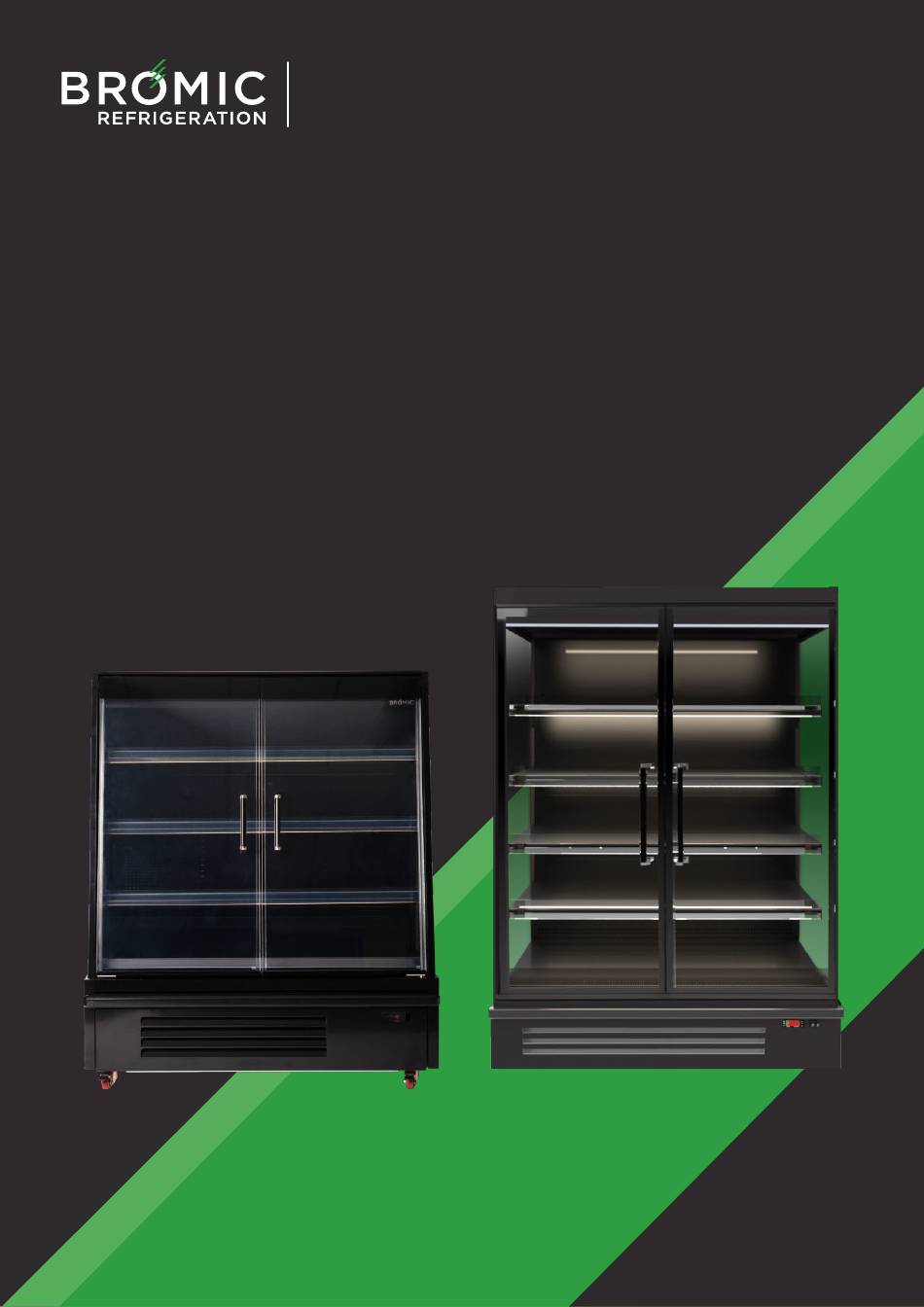

Confidence and control.
INSTRUCTION MANUAL
SEMI VERTICALS AND
FULL HEIGHT MULTIDECKS
3335639-NR, 3335640-NR, 3335641-NR, 3335642-NR,
3335643-NR, 3335644-NR, 3335645-NR, 3335646-NR,
3335647-NR, 3335648-NR, 3335649-NR, 3335650-NR,
3335651-NR, 3335652-NR, 3335653-NR, 3335654-NR,
3335655-NR, 3335656-NR.
REVISION 2 | 19/03/2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SVM1250SD-NR and is the answer not in the manual?

Questions and answers

Related Manuals for Bromic Heating SVM1250SD-NR

Summary of Contents for Bromic Heating SVM1250SD-NR

  • Page 1 Confidence and control. INSTRUCTION MANUAL SEMI VERTICALS AND FULL HEIGHT MULTIDECKS 3335639-NR, 3335640-NR, 3335641-NR, 3335642-NR, 3335643-NR, 3335644-NR, 3335645-NR, 3335646-NR, 3335647-NR, 3335648-NR, 3335649-NR, 3335650-NR, 3335651-NR, 3335652-NR, 3335653-NR, 3335654-NR, 3335655-NR, 3335656-NR. REVISION 2 | 19/03/2024...

  • Page 2: Table Of Contents

    CONTENTS 1. PREFIX 2. IMPORTANT NOTES & WARNINGS 3. PACKAGING AND HANDLING 4. PRODUCT OVERVIEW 5. INSTALLATION 6. SHELF AND BUMPER INSTALLATION 7. OPERATION 8. PRODUCT LOADING AND STORAGE 9. MAINTENANCE 10. TROUBLESHOOTING 11. MULTIPLEXING PROCEDURE 12. ALTERNATE CONFIGURATIONS 13. ENVIRONMENTAL AND DISPOSAL NOTES 14.

  • Page 3: Prefix

    1. PREFIX This manual contains important information about the installation, operation, and maintenance of Bromic Semi-Vertical and Full-Height Multideck units. Please pay close attention to the important safety information shown throughout this instruction manual. Any safety information will be accompanied by the following safety alert symbols: DANGER, WARNING, IMPORTANT...

  • Page 4: Important Notes & Warnings

    2. IMPORTANT NOTES AND WARNINGS • Read all instructions before installing or using this appliance • Retain this manual for future reference • Use this appliance only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury. •...

  • Page 5: Packaging And Handling

    3. PACKAGING AND HANDLING • This Multideck display contains fragile glass. The unit must always be handled with care. • Adjust the width of forklift tines such that they line up with the structural supports on the Semi Vertical unit before lifting. •...

  • Page 6: Product Overview

    4. PRODUCT OVERVIEW SVM1000SD-NR SVM1250SD-NR SVM1580SD-NR SVM1875SD-NR SVM2500SD-NR Part Number 3335644-NR 3335645-NR 3335648-NR 3335646-NR 3335647-NR Height, mm 1500 1500 1500 1500 1500 External Dimension Width, mm 1022 1334 1580 1959 2584 Depth, mm Volume Unit Weight Total Display Area 1.44 1.89...
  • Page 7 SVM1000HD-NR SVM1250HD-NR SVM1580HD-NR SVM1875HD-NR SVM2500HD-NR Part Number 3335639-NR 3335640-NR 3335643-NR 3335641-NR 3335642-NR Height, mm 1500 1500 1500 1500 1500 External Dimension Width, mm 1022 1334 1580 1959 2584 Depth, mm Volume Litres Unit Weight Total Display Area 1.44 1.89 2.20 2.69 3.49 Packaged Weight...
  • Page 8 FHM1000-NR FHM1250-NR FHM1875-NR FHM2500-NR Part Number 3335649-NR 3335650-NR 3335651-NR 3335652-NR Height, mm 2090 2090 2090 2090 External Dimension Width, mm 1018 1330 1955 2580 Depth, mm Volume Litres 1222 1629 Unit Weight Total Display Area 2.16 2.73 4.06 Packaged Weight Range -1°C to +10°C -1°C to +10°C...
  • Page 9 FHM1000HD-NR FHM1250HD-NR FHM1875HD-NR FHM2500HD-NR Part Number 3335653-NR 3335654-NR 3335655-NR 3335656-NR Height, mm 2090 2090 2090 2090 External Dimension Width, mm 1018 1330 1955 2580 Depth, mm Volume Litres 1222 1629 Unit Weight Total Display Area 2.16 2.73 4.06 Packaged Weight Range -1°C to +10°C -1°C to +10°C...

  • Page 10: Installation

    5. INSTALLATION Locating the Cabinet Ensure the following instructions are observed as this is vital for proper and trouble-free operation. • Do not install the cabinet outdoors. • Locate the appliance in a dry and well ventilated place. • The unit must be positioned on a level surface. •...
  • Page 11 Power Supply • The appliance must not be plugged into a multiple outlet power board. • The appliance is supplied with a flexible power cord fitted with a 3-pin plug. • The socket used must be properly earthed and fuse/RCD protected. •...

  • Page 12: Shelf And Bumper Installation

    6. SHELF AND BUMPER INSTALLATION Shelf Installation bromicrefrigeration.com.au 1300 276 642...
  • Page 13 Bumper Installation Hook the top lip of the bumper against the top lip of the cabinet 2. Push the bottom of the bumper into the cabinet such that it locks in place. Do not be alarmed if it requires a large pushing force to lock the bumper in place.

  • Page 14: Operation

    7. OPERATION Start-up • Connect the appliance to the mains power supply and turn on the main switch (blue) by flipping it upward. Note that some models do not have the main switch (blue). In that case, simply proceed to the next instruction. •...

  • Page 15: Product Loading And Storage

    8. PRODUCT LOADING AND STORAGE IMPORTANT: Run the refrigerator for at least 2 hours before loading. WARNING: : Do not store explosive substances such as aerosol cans with a flammable propellant inside the appliance. Start-up • Clean the interior surface with a soft cloth and warm water before loading. •...
  • Page 16 General cleaning • The multideck display must be wiped down regularly. • Preventing the build-up of oil and sediments will increase the longevity of the unit. Condenser cleaning • A clogged condenser can result reduced cooling performance. • The condenser must be cleaned every 6 weeks. •...

  • Page 17: Troubleshooting

    10. TROUBLESHOOTING IMPORTANT: Repairs on the unit must be carried out by an authorised and licensed person only. Contact the manufacturer or an approved service agent for any repairs needed. Symptom Possible Cause(s) Solution Unit does not turn A. No power supply A.

  • Page 18: Multiplexing Procedure

    11. MULTIPLEXING PROCEDURE The multiplexing procedure can be used to connect multiple Bromic Semi Vertical units together. • A Bromic multiplexing kit must be used for this procedure. • The multiplexing procedure must be performed a licensed technician. MULTIPLEXING (CABINET) Drawings Parts BOLT...

  • Page 19: Alternate Configurations

    12. ALTERNATE CONFIGURATIONS Semi Vertical Multideck Full Height Multideck Default Alternate Default Alternate Configuration Configuration Configuration Configuration Cabinet Depth 740mm 880mm 880mm 740mm Hinged or Door Options Open front Open front Hinged door Sliding door Alternate colours Alternate colours Black painted Black painted Colour Options available upon...

  • Page 20: Warranty

    14. WARRANTY All Bromic products are manufactured to the highest quality standard and are supported by our Extra Care Service Warranty, including guarantees against any material or workmanship defects; guarantees that cannot be excluded under Australian Consumer Law. Warranty Terms vary across the range. Please ensure you are familiar with the Terms and Conditions that apply to the purchase of your Bromic product by referring to the Warranty Policy included with your purchased product.
  • Page 21 HOW TO PLACE A SERVICE REQUEST • Please call 1300 276 642 to place a warranty service request and let the operator know whether you need Priority A or B service. More information can be found below. • Ensure you have the serial number of your product ready before contacting us. •...
  • Page 22 BROMIC REFRIGERATION 10 Phiney Place, Ingleburn (Sydney) NSW 2565 Australia T. 1300 276 642 For further product information bromicrefrigeration.com.au...
