INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.

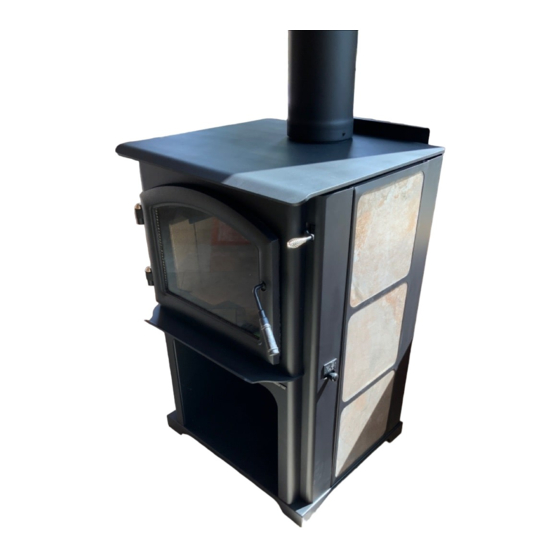

DISCOVERY II WOOD APPLIANCE
AUTOMATIC COMBUSTION
CONTROL (ACC)
MODEL NUMBER:
DISCOVERY-II-C
Installation and service of this appliance should be performed by
qualified personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certified professionals.
1
Installation Manual
Installation & Appliance Set-Up
NOTICE: DO NOT DISCARD THIS MANUAL
R
If the information in these instructions is
not followed exactly, a fire could result
causing property damage, personal injury,
or death.
• Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
• Do not over-fire - If appliance or chimney connector
glows, you are over-firing. Over-firing will void
your warranty.
• Comply with all minimum clearances to combustibles
as specified.
Failure to comply may cause house fire.
Hot glass and appliance will cause burns.
• Do not touch glass until it is cooled
• Use leather gloves when reloading fuel
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room
as appliance.
• Alert
children
high temperatures
• High temperatures may ignite clothing or other
flammable materials.
• Keep
clothing,
flammable materials away.
Fire Risk.
For use with solid wood fuel only.
Other fuels may over-fire and generate
poisonous gases (i.e. carbon monoxide).
NOTE: To obtain a French translation of this manual,
please contact your dealer or visit
REMARQUE : Pour obtenir une traduction française de
ce manuel, s'il vous plaît contacter votre revendeur ou
visitez
www.quadrafire.com
7033-352L
WARNING
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
and
adults
to
furniture,
draperies
WARNING
www.quadrafire.com
hazards
of
and
other
01/23
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Quadra-Fire DISCOVERY-II-C
Summary of Contents for Quadra-Fire DISCOVERY-II-C
- Page 1 • Do not over-fire - If appliance or chimney connector glows, you are over-firing. Over-firing will void MODEL NUMBER: your warranty. • Comply with all minimum clearances to combustibles DISCOVERY-II-C as specified. Failure to comply may cause house fire. WARNING HOT SURFACES! Glass and other surfaces are hot during operation AND cool down.
-
Page 2: Table Of Contents
C. Clearances to Combustibles ....10 = Contains updated information Quadra-Fire is a registered trademark of Hearth & Home Technologies. 7033-352L... -
Page 3: Appliance Safety Certification
A. Appliance Safety Certification C. BTU & Efficiency Specifications Model Number: DISCOVERY-II-C EPA Certification Number: 86-17 Number: Laboratory: OMNI Test Laboratories, Inc. EPA Certified Emissions: 1.9 grams per hour Report Number: 0061WS066S *LHV Tested Efficiency: 78.3% Listed Room Appliance, Solid Type: Fuel Type **HHV Tested Efficiency: 72.5%... -
Page 4: Mobile Home Approved
D. Mobile Home Approved I. California - Prop65 • This appliance is approved for mobile home installations; WARNING when not installed in a sleeping room and when an outside combustion air inlet is provided. This product and the fuels used to operate this product (wood), and the products of combustion of such fuels, can expose you to chemicals • The structural integrity of the mobile home floor, ceiling, including carbon black, which is known to the State of California to... -
Page 5: Getting Started
Getting Started A. Design and Installation Considerations B. Fire Safety Consideration must be given to: To provide reasonable fire safety, the following should be given serious consideration: - Safety - Convenience 1. Install at least one smoke detector on each floor of your - Traffic flow home to ensure your safety. They should be located away from the heating appliance and close to the sleeping - Chimney and chimney connector required areas. -
Page 6: Tools And Supplies Needed
To minimize the effects of negative air pressure: E. Inspection of Appliance and Components • Install optional outside air kit with the intake facing • Remove appliance and components from packaging and prevailing winds during the heating season inspect for damage. •... -
Page 7: Install Checklist
G. Install Checklist ATTENTION INSTALLER: Follow this Standard Work Checklist This standard work checklist is to be used by the installer in conjuction with, not instead of, the instructions contained in this installation manual. _________________________________________________________________________________ Customer: ______________________________________________________________________________ Date Installed: ______________________________________________________________________________ Lot / Address: ________________________________________________________________________ Location of Appliance:... -
Page 8: Dimensions And Clearances
Dimensions and Clearances A. Appliance Dimensions NOTE: Flue Collar size is 6 inch (152mm) diameter (ID) 25-1/2 in [648mm] 12-3/4 in 3-1/2 in [323mm] [89mm] 6-3/4 in [171mm] 11 in [279mm] 38-1/2 in [978mm] 14-1/2 in [362mm] 15-1/8 in [384mm] Figure 8.2 - Top View 17-7/8 in [454mm] 25-1/2 in [648mm]... -
Page 9: Hearth Protection Requirements
CAUTION B. Hearth Protection Requirements EMBER PROTECTION: Ember protection shall be either a Hearth and Home Technologies does not recommend adhesive Type 1 floor protector or made of non-combustible material based vinyl flooring due to thermal expansion. Floating-style to the requirements below. flooring (LVP - luxury vinyl plank or LVT – luxury vinyl tile) can be Floor protector must be non-combustible material, extending used, but it will reach temperatures up to 110 °F in a room with beneath appliance with a minimum of 16 inches (406mm) in ambient temperature of 70 °F. Consult flooring specifications to... -
Page 10: Clearances To Combustibles
Please consult with your local building inspector before attempting any clearance reductions. MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS IN INCHES (MILLIMETERS) NOTE: A, C, AND F DIMENSIONS ARE TO THE CENTER OF THE FLUE COLLAR DISCOVERY-II-C WOOD APPLIANCE INSTALLATION: FULL VERTICAL SINGLE WALL PIPE DISCOVERY-II-C... -
Page 11: Chimney Systems
Chimney Systems A. Locating Your Appliance & Chimney • Consider the appliance location in order to avoid floor and ceiling attic joists and rafters. Location of the appliance and chimney will affect • Locate termination cap away from trees, adjacent performance. -
Page 12: Chimney Termination Requirements
B. Chimney Termination Requirements NOTICE: Locating the appliance in a basement or in a location of considerable air movement can cause Follow manufacturer’s instructions for clearance, securing intermittent smoke spillage from appliance. Do not locate flashing and terminating the chimney (Figure 12.1 and Figure 12.2). appliance near •... -
Page 13: Chimney Height / Rise And Run
D. Chimney Height / Rise and Run Chimney: The chimney can be new or existing, masonry or This product was designed for and tested on a 6 inch prefabricated and must meet the following minimum (152mm) chimney, 14 to 16 feet (420-480cm) high, requirements and as specified in Section 4F. - Page 14 Thimble Listed Termination Cap Site constructed for masonry chimney installation: Storm Collar Components A minimum length of 12 inches [305mm] (longer for thicker Flashing walls) of solid insulated factory-built chimney length constructed to UL 103 Type HT 6 inch (152mm) inside diameter.
-
Page 15: Installing Chimney Components
Maintain minimum clearances to combustibles Figure 15.2 H. Proper Draft To be sure that your Quadra-Fire appliance burns properly, the chimney draft (static pressure) should be approximately -0.10 inches water column (W.C.) during a high burn and -0.04 inches W.C. during a low burn, measured 6 inches (152mm) above the top of the appliance after one hour of operation at each burn setting. -
Page 16: Appliance Set-Up
Appliance Set-Up A. Outside Air Kit Installation WARNING A source of air (oxygen) is necessary in order for combustion to take place. Whatever combustion air is consumed by the Fire Risk. Asphyxiation Risk. fire must be replaced. Air is replaced via air leakage around Do not draw outside combustion air from: windows and under doors. -
Page 17: Decorative Panel Removal & Installation
B. Decorative Panel Removal & Installation Your appliance ships with two different side options, one is a solid side panel (Figure 17.1) and tile side panel (Figure 17.2). There are two of each and no left or right side, these can be changed at anytime. Figure 17.4 Tile Panel Installation 1. -
Page 18: Door Handle Assembly
C. Door Handle Assembly D. Blower (Optional) 1. Install fiber handle to door handle rod. 1. Locate bolts supplied with the blower. 2. Align holes in mounting flange of blower with bolt holes in appliance. Blower should be positioned at bottom of rear outer skin as shown in Figure 18.2 3. Re-insert and tighten bolts, securing blower onto outer wall of appliance. -
Page 19: Mobile Home Installation
Mobile Home Installation You must use a Quadra-Fire Outside Air Kit Part CAUTION OAK-ACC; which is available from you dealer, for installation in a mobile home. THE STRUCTURAL INTEGRITY OF THE MOBILE 1. An outside air inlet must be provided for combustion... -
Page 20: Reference Materials
Reference Materials A. Service & Maintenance Log Date of Service Performed By Description of Service 7033-352L 01/23... -
Page 21: Accessories
B. Accessories DISCOVERY-II-C Service Parts Beginning Manufacturing Date: June2017 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Stocked Hearth and Home Technologies does not sell directly to consumers distributor. . Provide model number and serial number when requesting service parts from your dealer or distributor. - Page 22 Hearth & Home Technologies 352 Mountain House Road Halifax, PA 17032 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer log onto www.quadrafi re.com CAUTION DO NOT DISCARD THIS MANUAL •...
