ENG INSTALLATION INSTRUCTIONS
DEU INSTALLATIONSANLEITUNG
FRA INSTRUCTIONS DE MONTAGE
SRP UPUTSTVA ZA INSTALACIJU

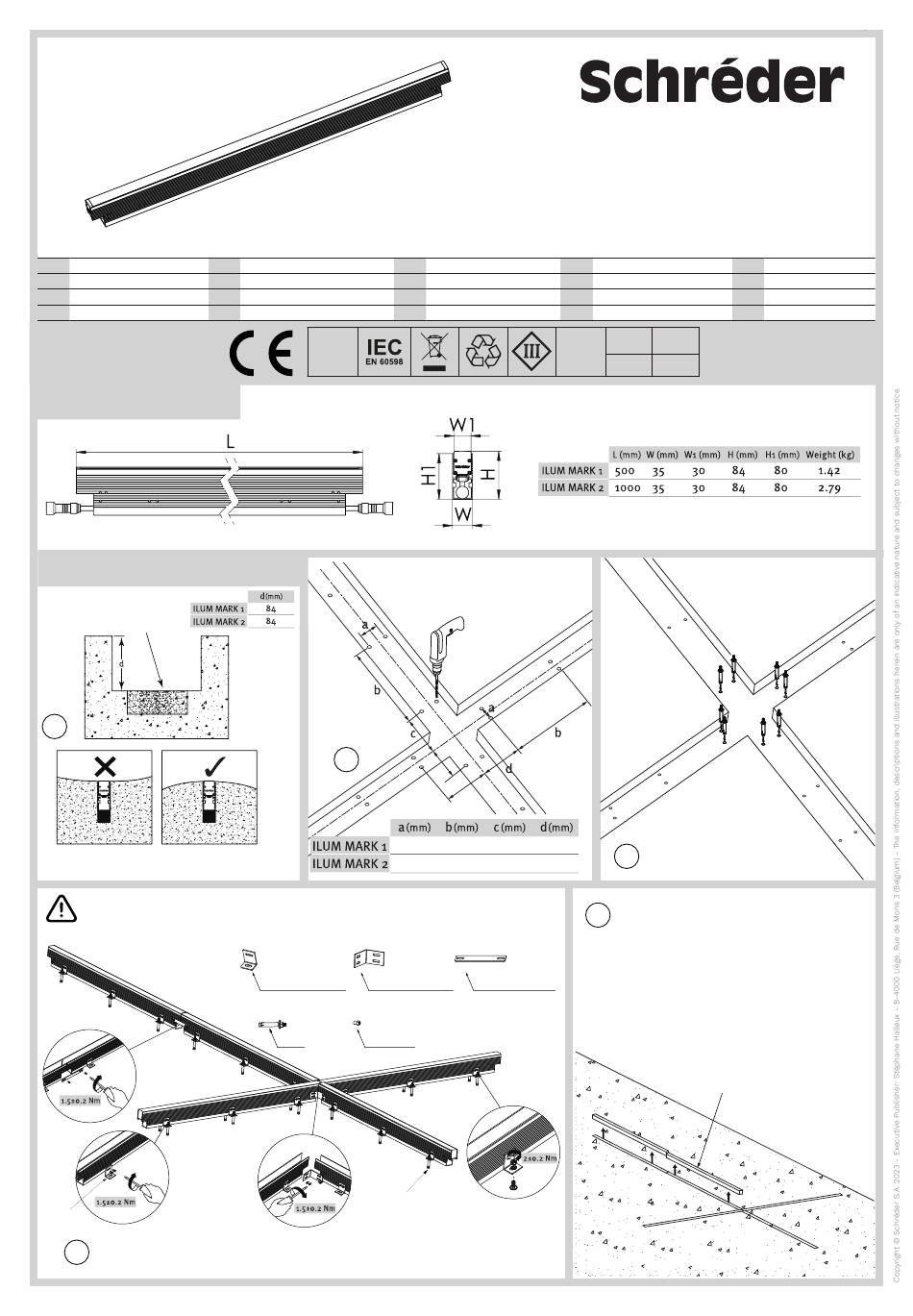

Assembly dimensions
Recessed ground installation
Always create a
drainage area for
water accumulation!
1a
Reserve a space 475x120x75mm for driver
box. Avoid to pour driver box into concrete.
Remark: Do not install the luminaire into the recessed box at start!
Recommended to use a cover cap for protection.
Bracket C
assemble
M4 screw
1d
1. Use brackets A, B and C to assemble the recess box into the desired shape
2. Use expansion screw to fasten the recess box to the ground
rev E | 09-2023
ITA
ISTRUZIONI DI INSTALLAZIONE
POL INSTRUKCJE MONTAŻU
SPA INSTRUCCIONES DE INSTALACIÓN POR INSTRUÇÕES DE INSTALAÇÃO SWE INSTALLATIONSANVISNING
تعليامت الرتكيب
AR
ta:50°C
1b
Bracket A
Bracket B
L35xW22xH30mm
L58xW45xH30mm
Expansion screw
Screw
M6
M4x8mm
x4/x6
x12/x16
Bracket B
assemble
Expansion screw
www.schreder.com
ILUM MARK
NLD INSTALLATIE INSTRUCTIES
DAN INSTALLATIONSVEJLEDNING
RUS Инструкции по установке
RON INSTRUCŢIUNI DE INSTALARE
DC 24V
59
232
156
137
59
365
156
137
Bracket C
L120xW15xT2mm
x2
x2
Bracket A
assemble
HUN TELEPÍTÉSI ÚTMUTATÓ
CHI
UKR Інструкції з монтажу
IK
IP
10
66/67
1c
3. Insert cover cap
1e
4. Casting concrete
5. Remove cover cap after concrete dries
Remark:
During
the
installation
recommended to use a suitable cover cap
inside/on top of the recessed box to protect
the internal surfaces from damages and
contamination.
No specific accessories for cover cap, any
suitable material may be used.
Cover cap for protection
(not included)
安装说明
process,
it
is
1/6
Advertisement
Table of Contents
Related Manuals for Schreder ILUM MARK
Summary of Contents for Schreder ILUM MARK
- Page 1 ILUM MARK ENG INSTALLATION INSTRUCTIONS ISTRUZIONI DI INSTALLAZIONE NLD INSTALLATIE INSTRUCTIES DAN INSTALLATIONSVEJLEDNING HUN TELEPÍTÉSI ÚTMUTATÓ RUS Инструкции по установке 安装说明 DEU INSTALLATIONSANLEITUNG POL INSTRUKCJE MONTAŻU RON INSTRUCŢIUNI DE INSTALARE UKR Інструкції з монтажу FRA INSTRUCTIONS DE MONTAGE SPA INSTRUCCIONES DE INSTALACIÓN POR INSTRUÇÕES DE INSTALAÇÃO SWE INSTALLATIONSANVISNING تعليامت...
-
Page 2: Incorrect Installation
Fill the gap between the luminaire and the recessed box Push the luminaire into the recessed box Fill the gap between the luminaire and the recessed box with glue or silicone into the recessed box with glue or silicone rev E | 09-2023 www.schreder.com... -
Page 3: Maintenance
7. All the luminaires in the chain need to receive at least 20.5V in order to avoid visible flux drop. 8. In case of 1m long ILUM MARK, the 11th luminaire in the chain will receive 22.5V from the power supply. - Page 4 DMX Extension Cable with female connector Standard 3 core DMX cable (recommended product:ProPlex PC224P*) + 2x Junction box with terminals - not part of ILUM MARK product, must be purchased locally (recommended products: Wiska SHARK 315 Gel joint** or OBO T 60 M20***) * https://tmb.com/proplex-dmx-portable-cables/...
-
Page 5: Safety Warning
Assign all other luminaires to an address that lies further than the last ILUM MARK (e.g. 10 fixtures of 1m each occupy DMX addresses 1 to 120 by using the shift register. The first one of the rest of the luminaires can be assigned to address no. - Page 6 Connecting 6pcs of ILUM MARK 2 (1m) Connecting 4pcs of ILUM MARK 2 (1m) and 2pcs DMX512 luminaires (4 CH) in the same universe Connecting 4pcs of ILUM MARK 2 (1m) and 2pcs DMX512 luminaires (4 CH) in different universes...
