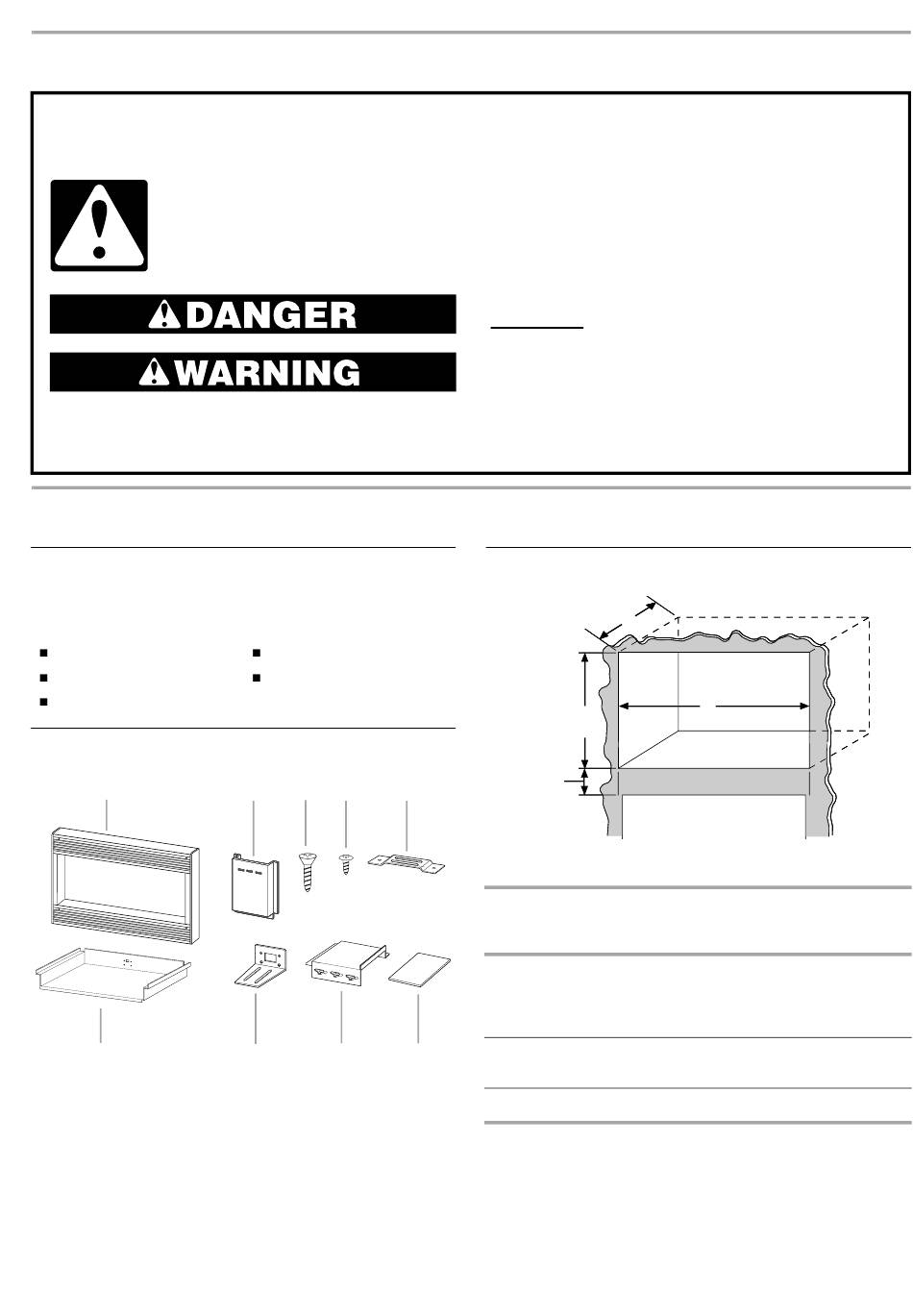

Microwave Oven Safety; Installation Instructions; Tools Recommended; Parts Supplied - Whirlpool MK1154XPS Installation Instructions

We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or
"WARNING." These words mean:
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.

Tools Recommended

Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools
listed here.
Measuring tape
Pencil
Scissors

Parts Supplied

A
F
A. Trim kit frame
B. Side duct (1)
C. 1" screws (4, plus 2 extra)
D. 1/2" screws (15, plus 2 extra)
E. Anti-tip bracket (1)
2

MICROWAVE OVEN SAFETY

Your safety and the safety of others are very important.

INSTALLATION INSTRUCTIONS

#2 Phillips screwdriver
⁵⁄₆₄" drill
B C D
G H
F. Bottom duct (1)
G. Bottom bracket (1)
H. Upper duct (1)
I. Template (1)
You can be killed or seriously injured if you don't
immediately follow instructions.
You can be killed or seriously injured if you don't
follow instructions.
15
(40.01 cm)
3"
E
(7.6 cm)
DIM. OVER 24"
(61.0 CM)
BUILT-IN OVEN
Width 22¹⁄₂"
(57.15 cm)
Depth 18¹⁄₂" (46.99 cm) min. with flush mount receptacle;
I
19" (48.26 cm) min. without flush mount receptacle
Height 15³⁄₄" (40.01 cm) (for all models)

Cutout Dimensions

B
t h t h W i d i d W
A
³⁄₄
"
A. Width
B. Depth
OVER 27"
(68.6 CM)
BUILT-IN OVEN
25¹⁄₂"
(64.77 cm)
OVER 30"
(76.2 CM)
BUILT-IN OVEN
25¹⁄₂"
(64.77 cm) min;
28¹⁄₂"
(72.39 cm) max.
