Operation Manual
SMK3-E
PITA OVEN, ELECTRIC, 3 RADIANT
(ELECTRIC SALAMANDER) 7,50Kw / 400V / 3 Phase
SMK5-E
PITA OVEN, ELECTRIC, 5 RADIANT
(ELECTRIC SALAMANDER) 12,50Kw / 400V / 3 Phase
To avoid the risk of accidents or damage to the appliance it is
essential to read this operation manual before it is installed or used.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GGM gastro SMK3-E
Summary of Contents for GGM gastro SMK3-E
- Page 1 Operation Manual SMK3-E PITA OVEN, ELECTRIC, 3 RADIANT (ELECTRIC SALAMANDER) 7,50Kw / 400V / 3 Phase SMK5-E PITA OVEN, ELECTRIC, 5 RADIANT (ELECTRIC SALAMANDER) 12,50Kw / 400V / 3 Phase To avoid the risk of accidents or damage to the appliance it is...
-
Page 2: Table Of Contents
SMK3-E, SMK5E ........ -
Page 3: Presentation Of Appliance

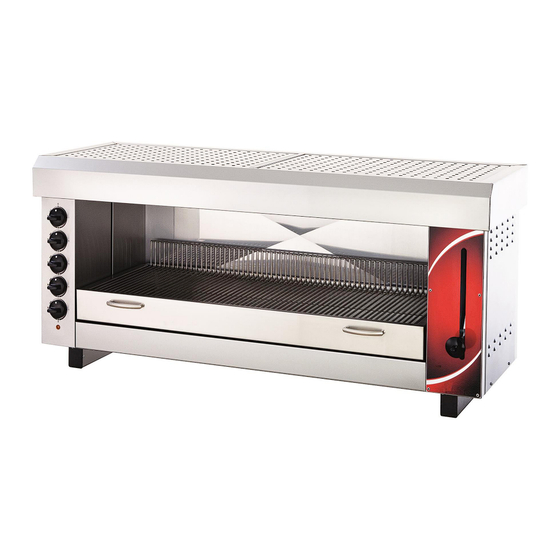

Presentation of Appliance Präsentation des Gerätes SMK3-E PITA OVEN, ELECTRIC, 3 RADIANT (ELECTRIC SALAMANDER) 7,50Kw / 400V / 3 Phase SMK5-E PITA OVEN, ELECTRIC, 5 RADIANT (ELECTRIC SALAMANDER) 12,50Kw / 400V / 3 Phase 1. Fixed Frame - Der seitlichen Säule 2. - Page 4 Presentation of Appliance - Präsentation des Gerätes Appliance Name : PITA OVEN, ELECTRIC Model Nr SMK3-E PITA OVEN, ELECTRIC, 3 RADIANT (ELECTRIC SALAMANDER) 7,50Kw / 400V / 3 Phase SMK5-E PITA OVEN, ELECTRIC, 5 RADIANT (ELECTRIC SALAMANDER) 12,50Kw / 400V / 3 Phase...
- Page 5 If you hesitate, please consult a qualified electrician. ➢ If the main cord is damaged, it must be replaced by GGM Gastro, a service center authorised by GGM Gastro or similarly qualified persons in order to avoid a hazard.
-
Page 6: Safety Recommendations And Advices
Safety Recommendations and Advices ➢ Defective parts may only be replaced by original GGM GASTRO GmbH spare parts. We as manufacturer may only assure you that you shall operate your appliance with these parts completely in safe. ➢ The manufacturing firm is not responsible for any damages that may be caused by improper mounting or connection of the appliance. -
Page 7: Things To Be Done Before First Operation
Things to be done Before First Operation Preliminary Information ➢ Keep Operation Manual and give it to the next owner of the equipment after you. ➢ Control the equipment before installation for any visible damages. Do not install or use any damaged equipment. Packaging ➢... -
Page 8: Verwendung
Operation Switching On/Off ➢ The Heaters work independently. ➢ The heaters (Radian) are turn on by On/Off Key (3.) on the fixed frame. ➢ To turn the key on, turn and bring it to 1 , 2 , 3 or max position. ➢... -
Page 9: Reinigung Und Wartung
Cleaning and Maintenance ➢ Disconnect the plug of the equipment from the mains socket. ➢ Ensure that all switches are off. ➢ First allow the equipment to get cool. Clean any rough dirt by use of a dry cloth. ➢ Do not pour used oil into the sink. If applicable, you can put the bottle in the bin for non-compostable waste (not in the compostable waste bin) or dispose of them in accordance with the regulations in your country. -
Page 10: Technische Daten
Troubleshooting Problem Possible Cause Solution * Appliance does not heat * The main fuse blown. * Check the main fuse. * The On/Off Key is off. * Turn the On/Off Key on. * Heating element is out of order. * Switch off the fuse. * The On/Off Key is out of order. - Page 11 Troubleshooting ➢ Equipment should be repaired only by Authorized Service Center. Any improper repair operations to be performed by non-authorized service people may cause risk for the user. Problem Possible Cause Solution *Salamander do not operate * The main fuse blown. * Check the main fuse.
- Page 12 Electric Connection Electric cables LIVE ( BROWN ) NEUTRAL ( BLUE ) EARTH ( GREEN AND YELLOW ) Technical Specification - Technische Daten SMK3-E SMK5-E ( 3 resistant ) ( 5 resistant ) Height - Höhe 56 cm 56 cm...
- Page 13 Technical Features Electric Circuit Diagram SMK3-E BROWN BROWN BROWN BLUE -S = ANAHTAR -R = REZİSTANS H1= SİNYAL LAMBASI 3 x 400 V SMK5-E BROWN BROWN BROWN BLUE -S = ANAHTAR -R = REZİSTANS H1= SİNYAL LAMBASI 3 x 400 V...
- Page 14 The appliance is guaranteed for 1 (ONE) year from the date of delivery of the appliance against defects in production, workmanship and assembling only if appliance is used in accordance with the instructions written in user manual and repaired only by a service person authorized by GGM GASTRO GmbH This guarantee is only valid if all the instructions, obligation and responsibility written for user in user manual and this form followed by user.
-
Page 15: Technische Daten
Technical Features Warning sign Warning Glove Upwards Potential Grounding Fragile Protect from humidity Grounding Electric Technische Daten Warnzeichen Achtung Heiß Handschuhe Obere Seite Potenzielle Erdung Zerbrechlich Vor Feuchtigkeit schützen Erdung Elektrisches... -
Page 16: Kundendienst
Customer Services / Kundendienst Service operation is performed at the plant facility. Der Technische Service wird in der Fabrikationsanlage duchgeführt. Service Centre Address: / Adresse des Service Centers: GGM Gastro International GmbH Weiner Park 16 48607 Ochtrup Germany Internet: www.ggmgastro.com www.ggmgastro.de E-Mail: info@ggmgastro.com...
