Cypress Semiconductor STK11C68 Specification Sheet

Features
■
25 ns, 35 ns, and 45 ns access times
■
Pin compatible with industry standard SRAMs
■ Software initiated nonvolatile STORE
■ Unlimited Read and Write endurance
■ Automatic RECALL to SRAM on power up
■ Unlimited RECALL cycles
■
1,000,000 STORE cycles
■
100 year data retention
■ Single 5V+10% operation
■ Commercial and industrial temperature
■ 28-pin (330 mil) SOIC package
■ 28-pin (300 mil) CDIP and 28-pad (350 mil) LCC packages
■
RoHS compliance

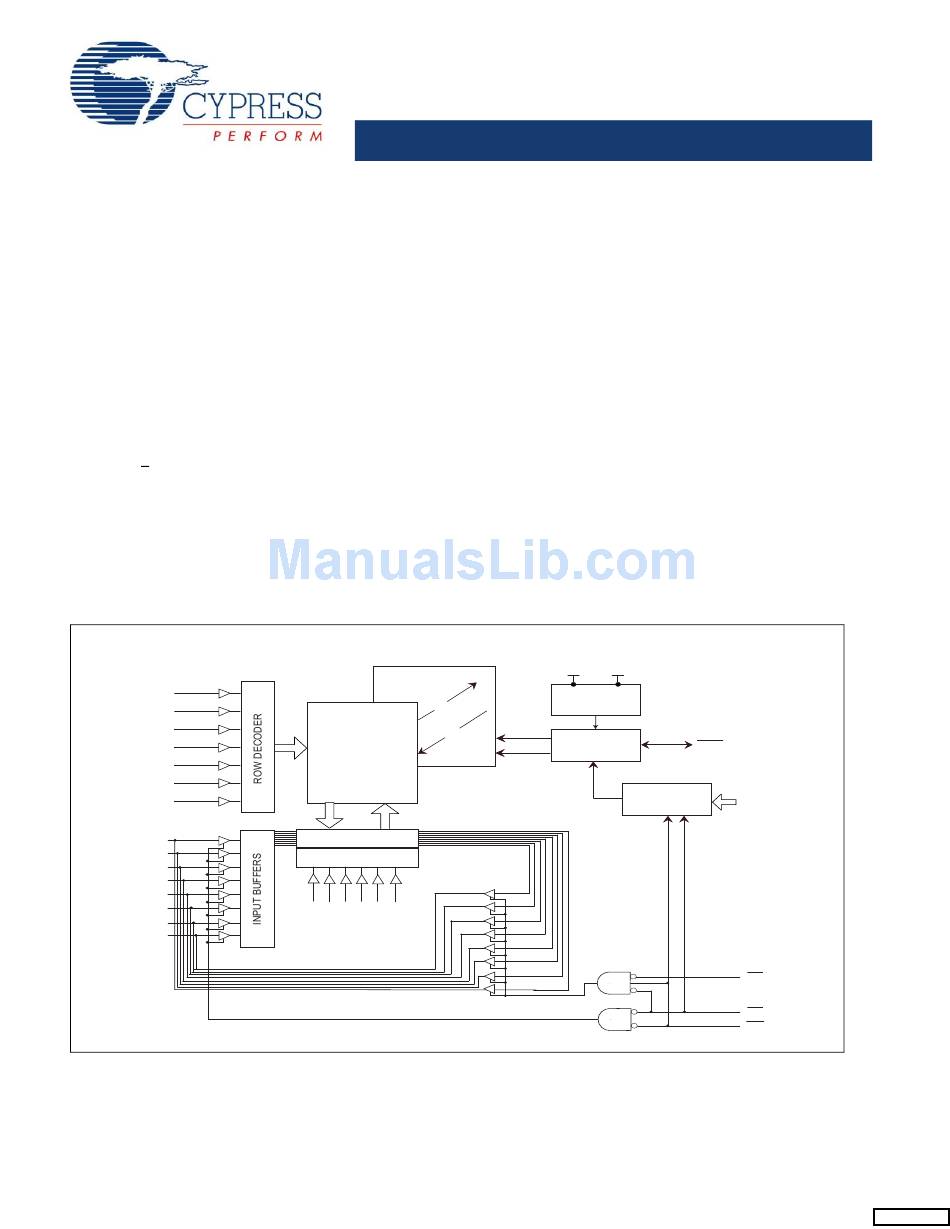

Logic Block Diagram
A
5
A
6
A
7
A
8
A
9
A
11
A
12
DQ
0
DQ
1
DQ
2
DQ
3
DQ
4
DQ
5
DQ
6
DQ
7
Cypress Semiconductor Corporation
Document Number: 001-50638 Rev. **
64 Kbit (8K x 8) SoftStore nvSRAM

Functional Description

The Cypress STK11C68 is a 64Kb fast static RAM with a nonvol-
atile element in each memory cell. The embedded nonvolatile
elements incorporate QuantumTrap technology producing the
world's most reliable nonvolatile memory. The SRAM provides
unlimited read and write cycles, while independent nonvolatile
data resides in the highly reliable QuantumTrap cell. Data
transfers under software control from SRAM to the nonvolatile
elements (the STORE operation). On power up, data is automat-
ically restored to the SRAM (the RECALL operation) from the
nonvolatile memory. RECALL operations are also available
under software control.
Quantum Trap
128 X 512
STORE
RECALL
STATIC RAM
ARRAY
128 X 512
COLUMN I/O
COLUMN DEC
A A
A A A A
0 1 2 3 4 10
• 198 Champion Court
V
V
CC CAP
POWER
CONTROL
STORE/
RECALL HSB
CONTROL
SOFTWARE
DETECT
,
• San Jose CA 95134-1709
STK11C68
-
A
A
0 12
OE
CE
WE
• 408-943-2600
Revised January 30, 2009
