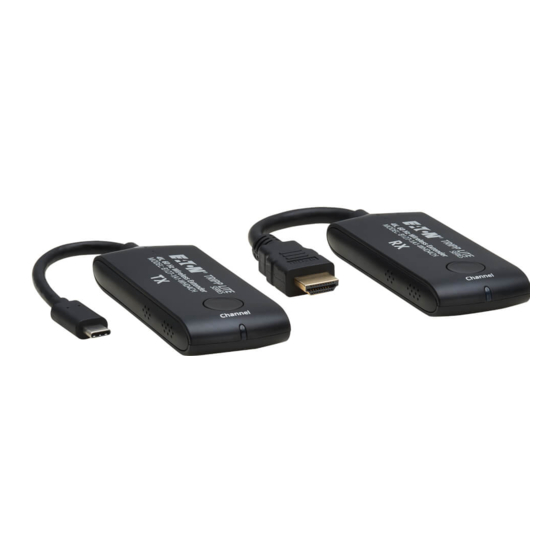

Eaton TRIPP LITE B127-1A1-WHD4CH Owner's Manual

4k 60 hz hdmi over wireless extender kit
Hide thumbs Also See for TRIPP LITE B127-1A1-WHD4CH:

Advertisement

Table of Contents

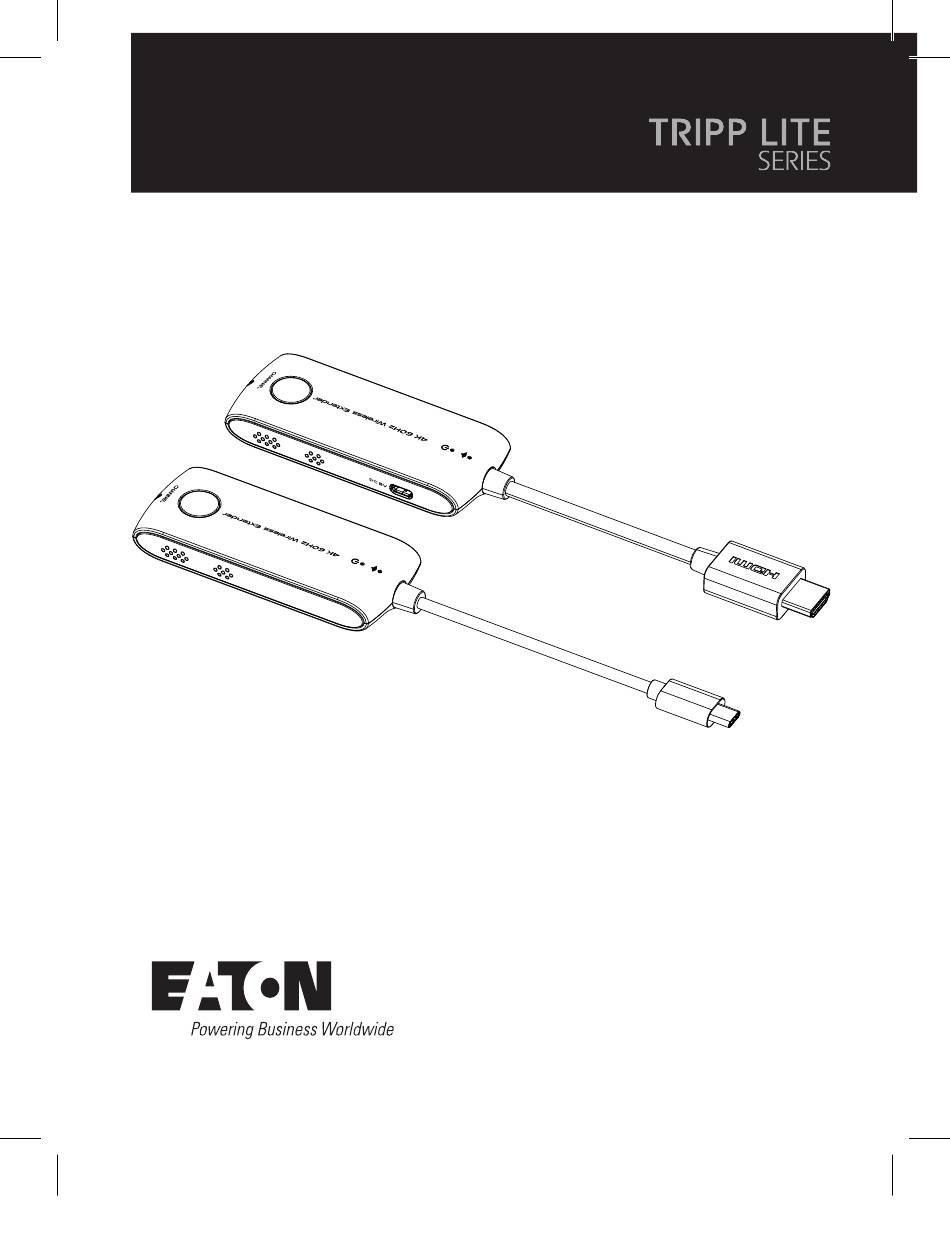

Owner's Manual
4K 60 Hz HDMI over
Wireless Extender Kit
(USB-C Mini Transmitter + HDMI Mini Receiver)
Este manual está disponible en español en la
página de Eaton: Tripplite.Eaton.com/support
Ce manuel est disponible en français sur le site
Web de Eaton : Tripplite.Eaton.com/support
Dieses Handbuch ist in deutscher Sprache auf der
Eaton-Website verfügbar: Tripplite.Eaton.com/support
Questo manuale è disponibile in italiano sul sito
web di Eaton: Tripplite.Eaton.com/support
10-177-93-4994_revA.indd 1
10-177-93-4994_revA.indd 1
B127-1A1-WHD4CH
Purchased product
may differ from image.
12/12/2023 2:26:24 PM
12/12/2023 2:26:24 PM
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRIPP LITE B127-1A1-WHD4CH and is the answer not in the manual?

Questions and answers

Related Manuals for Eaton TRIPP LITE B127-1A1-WHD4CH

Summary of Contents for Eaton TRIPP LITE B127-1A1-WHD4CH

  • Page 1 Este manual está disponible en español en la página de Eaton: Tripplite.Eaton.com/support Ce manuel est disponible en français sur le site Purchased product Web de Eaton : Tripplite.Eaton.com/support may differ from image. Dieses Handbuch ist in deutscher Sprache auf der Eaton-Website verfügbar: Tripplite.Eaton.com/support Questo manuale è...

  • Page 2: Important Safety Instructions

    Important Safety Instructions • Do not expose this device to rain or place it near water. Any liquid that goes into the device may cause a failure, fire, or electric shock. • Never insert anything metallic into the open parts of this device. This may cause an electric shock.

  • Page 3: Package Contents

    Package Contents Transmitter x1 Receiver x1 Micro USB cable x2 User Documentation x1 Installation Requirements • USB-C source device (DVD, game console, PC, etc.) • HDMI display device (TV, projector, LED screen, etc.) 10-177-93-4994_revA.indd 3 10-177-93-4994_revA.indd 3 12/12/2023 2:26:24 PM 12/12/2023 2:26:24 PM...

  • Page 4: Product Description

    Product Description Transmitter (TX) 4K, 60 Hz Wireless Extender 4K, 60 Hz Wireless Extender MODEL: B127-1A1-WHD4CH MODEL: B127-1A1-WHD4CH USB-C input Connects to a USB-C source device WiFi indicator Slow flash: waiting for connection Steady on: connection succeeded Quick flash: SSID Pairing mode Power indicator The indicator will turn red when the power is turned on...
  • Page 5 Product Description Receiver (RX) 4K, 60 Hz Wireless Extender MODEL: B127-1A1-WHD4CH 4K, 60 Hz Wireless Extender MODEL: B127-1A1-WHD4CH HDMI output Connects to an HDMI display device WiFi indicator Slow flash: waiting for connection Steady on: connection succeeded Quick flash: SSID Pairing mode Power indicator The indicator will turn red when the power is turned on...

  • Page 6: Installation

    Installation 1. Connection Diagram One to one connection Receiver USB-C Source Device Transmitter HDMI Display 2. Connection Instructions 1. Connect the transmitter to the USB-C output port of the signal source device. 2. Connect the receiver to the HDMI input port of the display device. 3.
  • Page 7 Q: Why the receiver and transmitter cannot be connected, showing "Search ipcolor Tx..." on the screen? A: 1) Move transmitter and receiver closer. 2) Re-power the transmitter or receiver. 3) Re-pair the transmitter and receiver. Q: Why is the Wi-Fi indicator steady on. but showing "Please check the TX input signal"? A: 1) Make sure the TX has a USB Type-C input and that the resolution is within the specified range.

  • Page 8: Specifications

    Specifications Power Supply Voltage/Current Micro USB power supply (5V/1A) Power consumption TX < 5W, RX < 3.5W HDMI Performance HDMI version HDMI 2.0 and Interface HDCP version HDCP 1.4/HDCP 2.2 Maximum transfer rate 18 Gbps Resolution supported 3840x2160@24/30/50/60 Hz (YUV 4:4:4, YUV 4:2:2 and RGB), 1080p@50/60 Hz, 720p@50/60 Hz, 1920x1200@60 Hz Input and output...

  • Page 9: Specification

    Specification Operating Operating temperature -4~122°F (-20~50°C) Environment Storage temperature -22~158°F (-30~70°C) Humidity (non-condensing) 0~90% RH Physical Properties Dimensions [W x L x H] TX / RX: 1.6 x 9 x 0.6 in. (40 x 230 x 15 mm) Color Black Material Net weight TX: 0.1 lb.

  • Page 10: Warranty And Product Registration

    Product Registration Visit Tripplite.Eaton.com/warranty today to register your new product. You’ll be automatically entered into a drawing for a chance to win a FREE Eaton Tripp Lite series product!* * No purchase necessary. Void where prohibited. Some restrictions apply.
  • Page 11 • Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country) • Send the new equipment back for recycling when this ultimately becomes waste Eaton has a policy of continuous improvement. Specifications are subject to change without notice. 10-177-93-4994_revA.indd 11 10-177-93-4994_revA.indd 11...
  • Page 12 Eaton 1000 Eaton Boulevard Cleveland, OH 44122 United States Eaton.com © 2023 Eaton Eaton is a registered All Rights Reserved trademark. Publication No. 23-10-177 / 93-4994_revA All trademarks are property December 2023 of their respective owners. 10-177-93-4994_revA.indd 12 10-177-93-4994_revA.indd 12...
