2.1 Unpacking and Checking the Components

2.1.1 Unpacking and Checking the Components
1) Open the shipping box of the finisher.
2) Remove the packing material from the finisher.

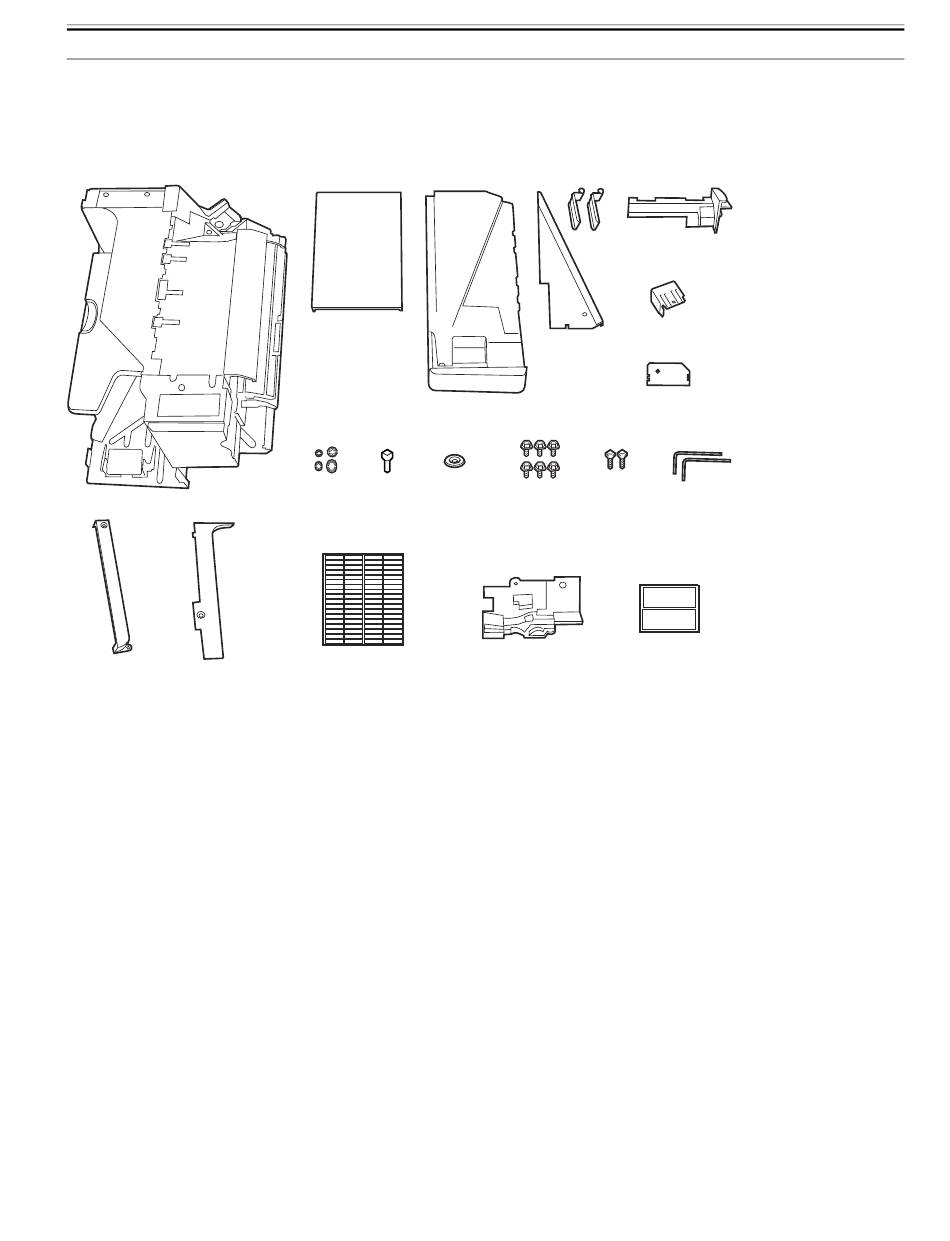

3) Check to make sure that none of the following contents is missing:
[1]
[15] [16]
F-2-1
[2] [3]
[9] [10] [11]
[17]
T-2-1
[1] Finisher
[2] Finisher front cover
[3] Bottom cover
[4] Bottom cover (lower)
[5] Front cover fixing
[6] Inside right cover
[7] Finisher guide base
[8] Face cover
[9] Face member
[10] Pin
[11] Catch
[12] Binding screw (M3x6)
[13] B tightening screw (M3x6)
[14] Front cover pin
[15] Finisher left cover
[16] Rear left cover
[17] Tray setting label
[18] Drive cover
[19] Control instructions label
[4] [5] [6]
[13]
[12] [14]
[19]
[18]
1 unit.
1 pc.
1 pc.
1 pc.
2 pcs.
1 pc.
1 pc.
1 pc.
4 pcs.
1 pc.
1 pc.
12 pcs.
2 pcs.
2 pcs.
1 pc.
1 pc.
1 pcs.
1 pc.
1 pc.
Chapter 2
[7]
[8]
