- Page 1 Uniforce-2 Instruction Manual Original Instructions Doc. no.: 17047025-01_A_en Date of release: 2024.04.01...
- Page 2 Copyright The contents of this manual are the property of Struers ApS. Reproduction of any part of this manual without the written permission of Struers ApS is not allowed. All rights reserved. © Struers ApS. Uniforce-2...
-
Page 3: Table Of Contents
5.3 Lift the device 5.4 Install the device 6 Operate the device 6.1 Securing the specimens with Uniforce-2 6.2 Securing the specimens with Uniforce-2 with pressure foot 6.3 Removing the specimens from the specimen holder 7 Maintenance and service 7.1 Lubrication... -
Page 4: About This Manual
(grinding/polishing) equipment for materialographic inspection. The device is intended to be used with Struers specimen holders designed for this purpose. The device must be operated only by skilled/trained personnel. The device is intended to be used in a professional working environment (for example, a materialographic laboratory). -
Page 5: Safety Messages In This Manual
Hint This sign indicates that additional information and hints are available. Safety messages in this manual CRUSHING HAZARD Take care of your fingers when handling the device. CRUSHING HAZARD Wear safety shoes when handling heavy machinery. Uniforce-2... -
Page 6: Get Started
Get started Device description Uniforce-2 is a leveling device designed to ensure parallel specimens and a balanced specimen holder when fixating the specimens in a specimen holder for materialographic preparation. The specimen holder is placed on the plate and secured by the centering cylinder. The specimens are placed in the specimen holder holes so it is balanced after fixation of the specimens. - Page 7 3 Get started Uniforce-2...
-
Page 8: Overview

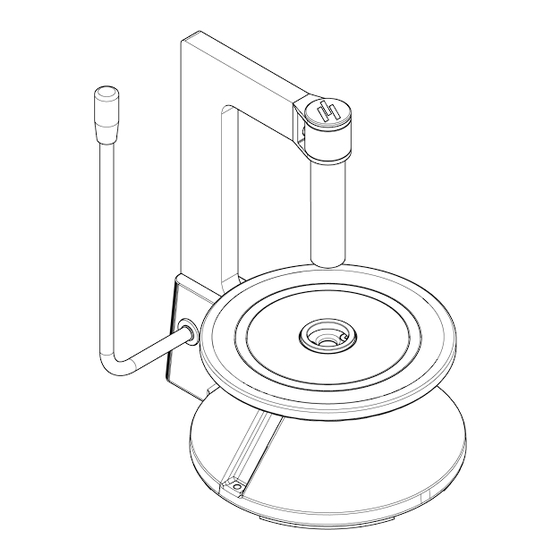

3 Get started Overview Isometric view - Uniforce-2 A Leveling disc F Centering cylinder B Base G Pressure cylinder C Handle H Storage for Allen key D Spacing rings Holes on both sides for fixation to the workbench E Cylinder frame... -
Page 9: Transport And Storage
• Package the device securely before transportation. Insufficient packaging could cause damage to the device and will void the warranty. Contact Struers Service. • We recommend that you use the original packaging and fittings. -
Page 10: Long-Term Storage Or Shipping
CRUSHING HAZARD Wear safety shoes when handling heavy machinery. Lift the device in the cylinder frame. Installation Unpack the device CRUSHING HAZARD Take care of your fingers when handling the device. CRUSHING HAZARD Wear safety shoes when handling heavy machinery. Uniforce-2... -
Page 11: Check The Packing List
5 Installation CAUTION If the equipment is subjected to misuse, incorrect installation, alteration, neglect, accident or incorrect repair, Struers will accept no responsibility for damage to the user or the equipment. Note We recommend that you keep all original packaging and fittings for future use. -
Page 12: Install The Device
Place the device on a stable workbench at a comfortable working height. There must be an appropriate distance to the workbench edge so that the handle does not extend beyond the workbench when activated to a horizontal position. The device is provided with holes, so it is possible to fasten it to the workbench. Uniforce-2... - Page 13 Place the Allen key in the holder on the right side of the device. Place one of the spacing rings in the hole in the middle of the leveling disc. Place the spacing ring according to the desired distance between the preparation surface and the specimen holder. Uniforce-2...
-
Page 14: Operate The Device
Struers standard specimen holders • Struers specimen holder with RFID On the Uniforce-2 with pressure foot, a spring-loaded pressure foot keeps the specimens in position so when tightening the specimen holder screw, the specimens will not move. Spacing rings A distance of 3 mm is usually used between the preparation surface and the specimen holder. Still, if removal of more than 2 mm material is required, the 6 mm spacing ring is recommended. -
Page 15: Securing The Specimens With Uniforce-2 With Pressure Foot
Move the handle carefully backwards. – Lift the specimen holder and remove it. Make sure that all specimens are correctly fixed. Securing the specimens with Uniforce-2 with pressure foot CAUTION Never leave the device with the handle in working position. Note... -
Page 16: Removing The Specimens From The Specimen Holder
Turn the specimen holder so the prepared surface faces upwards, and lead the coupling stud down into the hole in the middle of the leveling disc. Hold the specimen holder with one hand and loosen the specimens with the Allen key. Carefully lift the specimen holder and remove it. Remove the specimens. Uniforce-2... -
Page 17: Maintenance And Service
Lubrication The moving parts of Uniforce-2 have been lubricated during factory assembly. Depending on the level of use, the movement can become slightly stiff and require lubrication with Shell Gadus S3 V220 C2. -
Page 18: Spare Parts
If the device does not perform as expected, contact Struers Service. 10 Disposal Contact your local authorities for information on the correct method of disposal in accordance with national legislation. Uniforce-2 is made of metal, rubber, and plastic and does not contain any components classified as hazardous. Uniforce-2... -
Page 19: 11 Technical Data
06066912, 02606917, 02606918, 02606920, 02606954, 02606955,02606963, 06066914, 02606922, 02606956, 02606957, 02606958 Specimen height It depends on the type of specimen holder and equipment used. Use specimens with a maximum height of 40 mm in Uniforce-2. Operating Surrounding 5-40°C (41-104°F) environment... - Page 20 Responsibility of the manufacturer The following restrictions should be observed, as violation of the restrictions may cause cancellation of Struers legal obligations. The manufacturer assumes no responsibility for errors in the text and/or illustrations in this manual. The information in this manual is subject to change without notice. The manual may mention accessories or parts not included in the supplied version of the equipment.
-
Page 21: Declaration Of Conformity
Based on: 17047901 A Declaration of Conformity Manufacturer Struers ApS • Pederstrupvej 84 • DK-2750 Ballerup • Denmark Name Uniforce-2 Model Function Uniforce-2 is used for leveling specimens to ensure parallel specimens and balanced specimen holders. Type Cat. no. 07046101 Uniforce-2... - Page 22 Tõlked leiate aadressilt Katso käännökset osoitteesta Pour les traductions, voir Za prijevode idite na A fordítások itt érhetők el Per le traduzioni consultare www.struers.com/Library 翻 訳 については、 Vertimai patalpinti Tulkojumus skatīt Voor vertalingen zie For oversettelser se Aby znaleźć tłumaczenia, sprawdź...
