INSTALLATION

4.1. BEFORE INSTALLATION
Check the device for any damage or missing parts.
4.2. CHOOSE YOUR LOCATION
NOTE: If tipped more than 45°, allow the unit to set upright for at least 24 hours before start up.
4.2.1. Place the unit on a firm, level surface in an area with at least 50cm of free space around it to allow for proper air circulation.
DO NOT operate in close proximity to walls, curtains, or other objects that may block air inlet and outlet. Keep the air inlet and outlet
8
free of obstacles.
DO NOT install the unit where it could be subject to:
8
• Heat sources such as radiators, heat registers, stoves or other products that products that produce heat.
• Direct sunlight
• Mechanical vibration or shock
• Excessive dust
• Lack of ventilation, such as cabinet or bookcase
• Uneven surface
WARNING! Install the unit in rooms which exceed 12m².
‰
DO NOT install the unit in a place where inflammable gas may leak.
8
4.3. ATTACH THE EXHAUST HOSE
The air conditioner must be vented outside to remove exhaust air from the room.
DO NOT extend the exhaust hose which will result in decreased efficiency, even worse shut down the unit due to low back-pressure.
8
4.3.1. Adjusting the length of the flexible exhaust hose, and avoid bends in the hose. Then place AC near an electrical outlet.
4.3.2. Adjust the louver at the air outlet, and then switch on the unit.

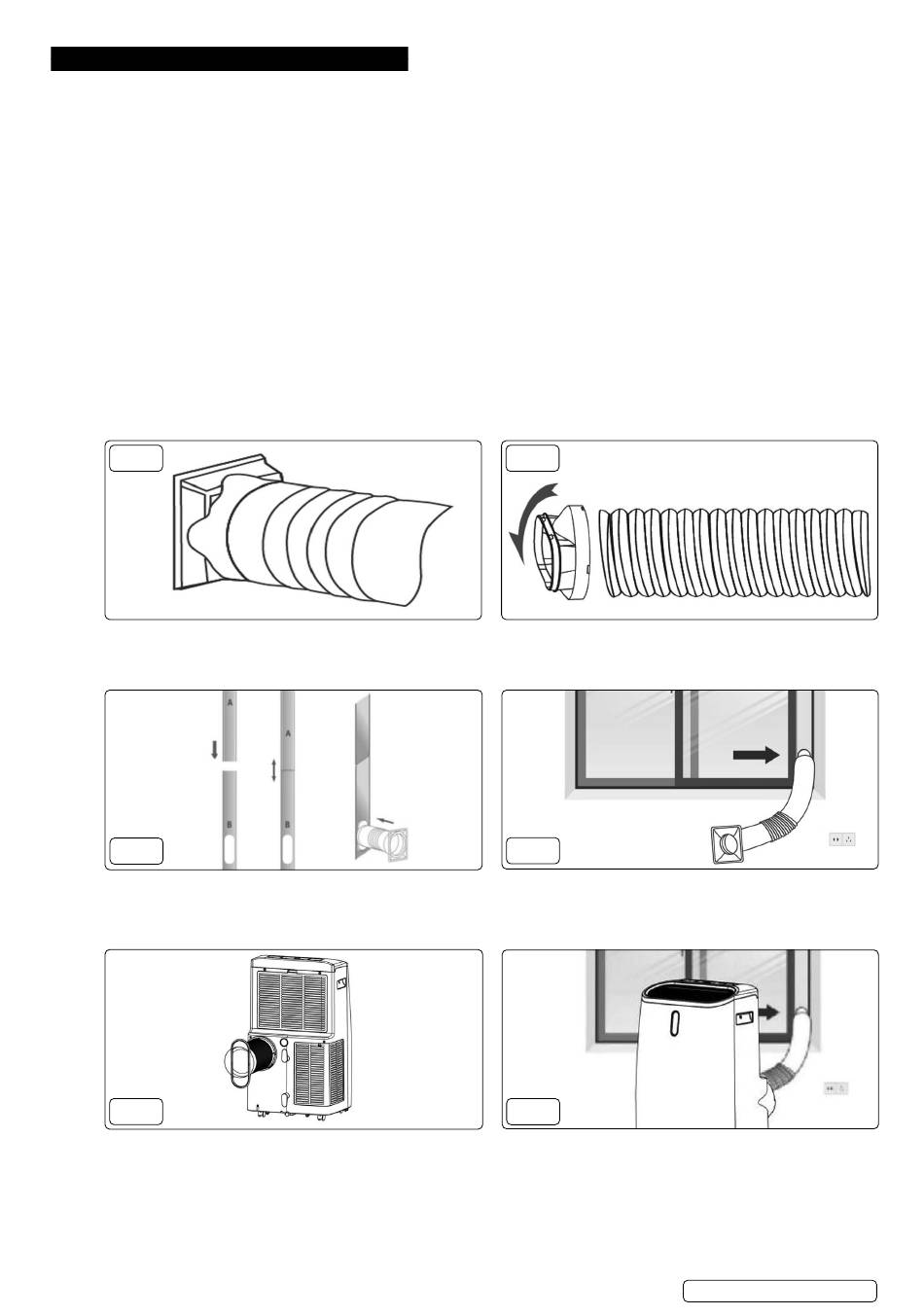

FIG.1
4.4.1. Connect the hose connector to one end of the exhaust
hose (fig.1)
FIG.3
4.4.3. Extend the adjustable window kit to the length of your
window. Connect the exhaust hose to the window kit
(fig.3).
FIG.5
4.4.5. Attach the hose connector to the exhaust air outlet of
unit (fig.5).
© Jack Sealey Limited
FIG.2
4.4.2. Connect the windows kit adapter to the other end of the
FIG.4
4.4.4. Close the window to secure the kit in place. Secure the
FIG.6
4.4.6. Avoid bends in the hose. Plug in to power supply. (fig.6).
Original Language Version
exhaust hose (fig.2).
window kit with duct tape if required (fig.4).
SAC16000 Issue 1 03/01/24
