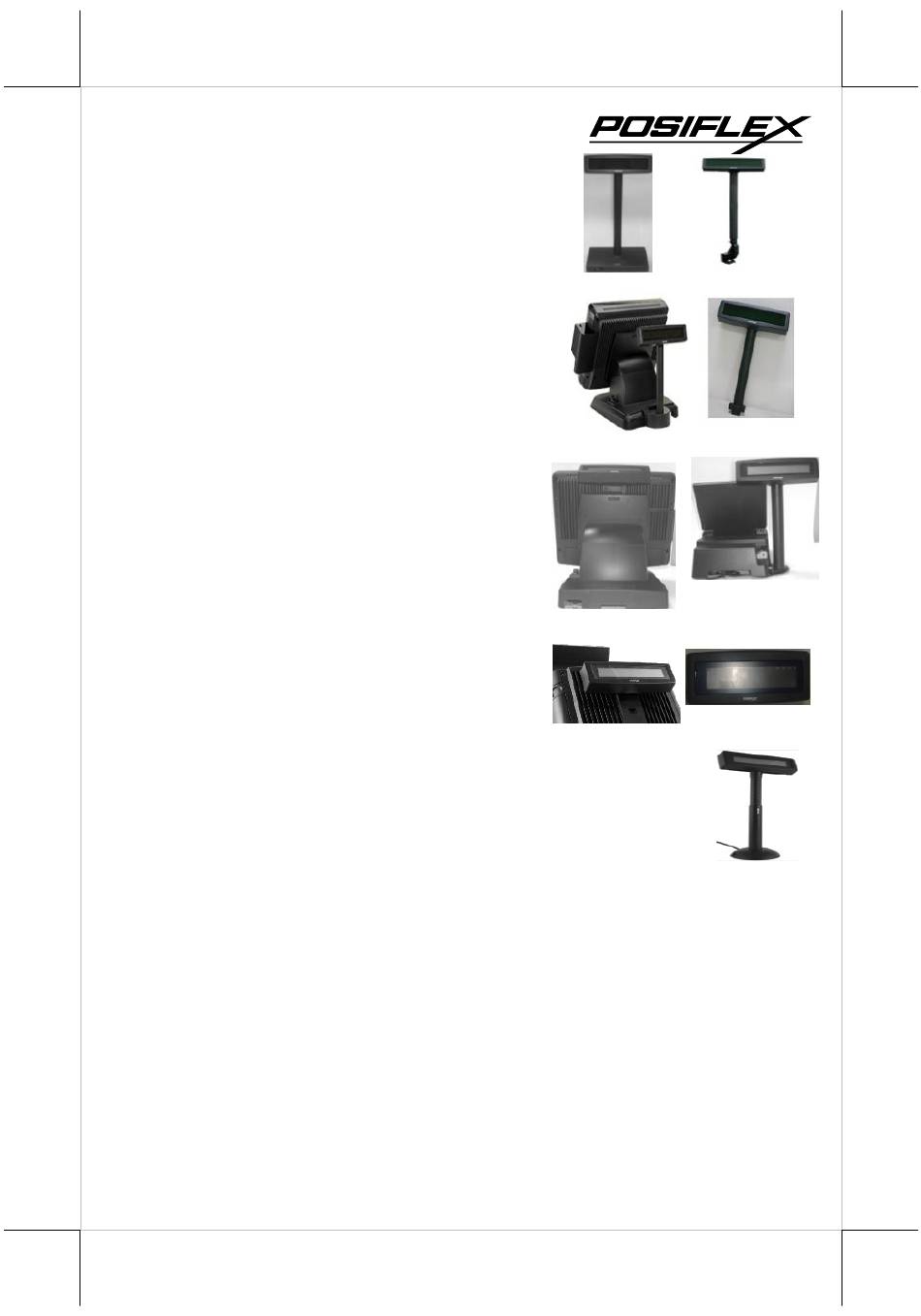

PD – 260XUE/2800UE Series
User's Manual
FCC NOTES
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful
interference in which case the user will be required to
c o r r e c t t h e i n t e r f e r e n c e a t h i s o w n e x p e n s e .
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operat ion.
CE CLASS A WARNING
This equipment is compliant with Class A of CISPR 32. In
a residential environment this equipment may cause radio
interference.
AVERTISSEMENT CE CLASSE A
Cet équipement est conforme à la classe A de CISPR 32.
Dans un environnement résidentiel, cet équipement peut
provoquer des interférences radio.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other than the
authorized technicians. The user should consult his/her dealer for the problem happening.
Warranty voids if the user does not follow the instructions in application of this merchandise. The
manufacturer is by no means responsible for any damage or hazard caused by improper application.
LIMITES DE GARANTIE
La garantie prend fin automatiquement lorsque la machine est ouverte par une personne autre que
les techniciens autorisés. L'utilisateur doit consulter son revendeur pour le problème qui se produit.
La garantie s'annule si l'utilisateur ne suit pas les instructions d'application de cette marchandise.
Le fabricant n'est en aucun cas responsable de tout dommage ou danger causé par une mauvaise
application.
Rev. C0
PD2601UE
PD2600UE
PD2602UE
PD2603UE
PD2605UE
PD2604UE
PD2607UE/
PD2606UE
2608UE
PD2800UE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PD-260XUE Series and is the answer not in the manual?

Questions and answers

Summary of Contents for POSIFLEX PD-260XUE Series

  • Page 1 PD – 260XUE/2800UE Series User’s Manual Rev. C0 FCC NOTES PD2601UE PD2600UE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 2: Safety Instructions

    警告 為避免電磁干擾,本產品不應安裝或使用於住宅環境。 SAFETY INSTRUCTIONS This equipment is not suitable for use in locations where children are likely to be present. CONSIGNES DE SÉ CURITÉ Cet équipement ne convient pas à une utilisation dans des lieux pouvant accueillir des enfants.
  • Page 3: Product Model Number

    Power Setup Notice √ This device is particularly designed for use with a Posiflex system. In such application, it can utilize power support from the Posiflex system. PRODUCT MODEL NUMBER FEATURES  VFD (Vacuum Fluorescent Display) with dark blue character and yellow green back-light ...
  • Page 4 INSTALLATION GUIDES PD-2800UE This adjustment has to be done by a qualified electronic technician to follow the guide from relevant technical manual. The power of PD-2800 UE supported through USB connection. For PD-2800 UE customer display, there are two USB connecter needed to link to the host system.
  • Page 5: Mechanical Installation

    MECHANICAL INSTALLATION For this type mechanical design of standalone customer pole display, it can operate straight away and no needs to assemble with any other host system. Nevertheless, it also can fix on the counter or any place when it needs to be fixed.
  • Page 6 Note: Please align the compress lock and the grooves in order to fix the height of customer display. Picture B is going to show how to screw PD-2800 UE in a flat surface. In the base stand of PD-2800 UE, there are two screws holes for user to fix the customer display.
  • Page 7 A: Hold the PD unit item then turn the screen facing toward you. B: Please find the upper 2 of 4 holes on the rear panel of XT system. C: Please aim the 2 PD bracket holes to the 2 screws holes on the back cover of HS main unit and fasten them to fix PD on the XT.
  • Page 8 After fixing the customer pole display, it may use the cable cover to manage the cable. PD-2605UE Base for KS series Bottom of DT series The PD-2605 can be attached to the corner in bottom plate of the KS series, with slim base, DT series and Gen.6 &...
  • Page 9 of the rear top mount upgrade kit to go into the first groove to the right of the left shoulder screw on back of main unit as in the lower picture at right. For host models with Gen 6 super slim base, please stick the 2 attached cable clips at arrowed positions of Gen 6 base in the picture for cable routing when later joining the main unit to Gen 6 base.
  • Page 10 Fixing pole display base to system To fix the PD-2602UE to base of KS or TP systems, please connect the interface cable of PD-2602 through the cable exit in base as in Pix. 8 a peeping view of pole display joint Pix.
  • Page 11 Find joining points on pole display base B’ B’ C’ C’ A’ A’ Pix. 12 Take PD-2601UE out of its box and refer to Pix.12 that is a picture of the pole display base unit (lowest part of the PD) with 2 enlarged portions to the right and a slightly enlarged side view picture to the left to find 2 bottom locking lugs A’;...
  • Page 12 cylindrical locating bosses B’ into 2 round holes B in the I/O plate. Please refer to Pix. 14 to see the 2 locating bosses B’ from inside of HT or PB system. Please note the importance of keeping the leftward pressure on bottom end of pole display during the process of turning the pole upright and inserting the locating bosses B’...
  • Page 13 PD-2600UE Stand Alone Model: This instruction is for stand alone model only. Please unpack the inner box of pole display and it easy to find the base, display unit with tube and adaptor separately. Please remove the PE form and bring out the components carefully.
  • Page 14: Dip Switch

    switch window DIP SWITCH 1. Transmission Protocol Switch Position Interface USB Vendor Class USB HID Class Reserved Virtual COM Port 2. Emulation Mode Switch Position Mode Aedex Noritake OFF OFF Epson Futaba Note: Switch Position 6 is used for ISP download. The factory default command mode is set to Noritake mode for normal delivery.
  • Page 15: Driver Installation

    (listed later in this manual) and data to the customer display under the programming language. FOR OPOS APPLICATION: Find the subfolder UPOS Drivers > OPOS Driver of the Posiflex Product Information CD or download it from Posiflex global website and execute the file“SETUP.EXE” to install the OPOS Control Manager.
  • Page 16 5% to 90%, non-condensing WARNING: If the user opens the pole display housing to make any modification, all the product warranty will be voided. NOTE: Please refer to Posiflex Product Information CD or visit Posiflex global website for further information when needed. APPENDIX:...
  • Page 17 Clear display screen US X Brightness adjustment Move cursor left- Set/cancel user-defined ESC % most char. Define user-defined Clear cursor line ESC & char. Delete user-defined Overwrite mode ESC ? US MD1 char. Vertical scroll mode US @ Show firmware version US MD2 Horizontal scroll Select peripheral...
  • Page 18: International Character Sets

    Clear pass through x1 x2 02 Form feed flag 1B 48 pp Digit select Carriage return 1B 43 ad x1 User defined fonts ~ x5 UTC Pass through mode Command [+data] [+CR] ESC uA Top line message ESC uH Redefine graphic ESC uA CR Clear top line ESC uIx Display fonts...
