Summary of Contents for Uniden BW2511

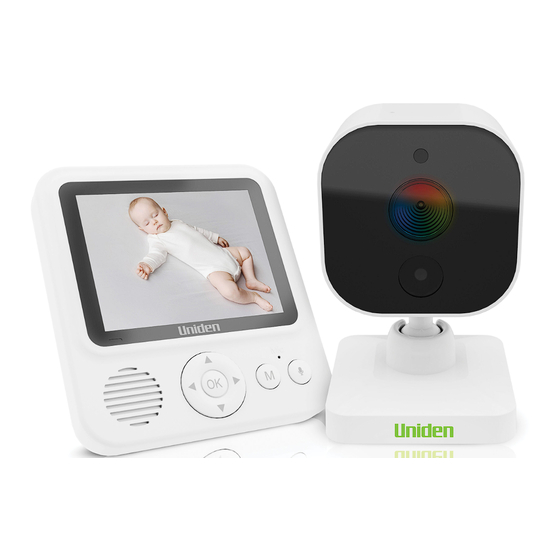

- Page 1 BABY MONITOR BW2511 For more exciting new products please visit our website: Australia: www.uniden.com.au OWNER’S MANUAL...
-
Page 2: Important Safety Precautions
IMPORTANT SAFETY INSTRUCTIONS This manual contains important information about this product’s operation. If you are installing this product for others, you must leave this manual or a copy with the end user. When using your equipment, always follow basic safety precautions to reduce the risk of fire, electric shock and injury to persons, including the following: •... - Page 3 Clean only with a dry cloth. Failure to follow the instructions in this operating manual will void the warranty. Uniden assumes no liability for damages to property or injury to persons caused by improper handling or failure to comply with these safety instructions.
-
Page 4: Table Of Contents
CONTENTS IMPORTANT SAFETY PRECAUTIONS ........2 CONTENTS ..................4 WHAT’S IN THE BOX? ..............5 GETTING STARTED ..............6 INSTALLATION ..............10 General Placement Considerations ........10 Powering the Camera ............11 Display Icon and Menu ............12 SYSTEM MENUS .............13 Monitor Function Settings ............13 Alert Settings .. -
Page 5: What's In The Box
Image may vary slightly from the actual product. • If any item is missing or damaged, contact your place of purchase immediately. Never use damaged products! • Need help? Get answers at our website: www.uniden.com.au for Australian model. All trademarks are registered trademarks of their respective owners. -
Page 6: Getting Started
GETTING STARTED CAMERA... - Page 7 Item What it does Sensor: Detects temperature and displays it on the monitor LCD. Camera lens. Indicator light. Speaker. Thermistor. Power/ Paring key. Power Port. Microphone: Receives sounds for the area near the camera, and transmits sound from the camera to the monitor.
- Page 8 MONITOR...
- Page 9 Item What it does Indicator Light • In Menu: Press to select a menu or accept a setting. Direction Key Menu: Press to display the menu options. Audio Key Microphone: Receives sounds for the area near the monitor, and transmits sound from the monitor to the camera. POWER: Press and hold to switch on/off the monitor.
-
Page 10: Installation
INSTALLATION General Placement Considerations The camera can be placed on a shelf or other flat surface. • The camera included is NOT weatherproof; it is an indoor camera. • The clearest line-of-sight between the camera and the monitor is best. Walls, especially brick and concrete, can affect connection quality. -
Page 11: Powering The Camera
Powering the Camera 1. Insert one end of the USB-C cable to the USB-C port on the camera (at the back of the camera). 2. Connect the other end of the USB cable into the USB power adaptor. 3. Connect the USB power adaptor into a 240 volt AC (standard indoor) power outlet. -
Page 12: Display Icon And Menu
Icon Description Signal level (5 Levels) No signal Camera 1 Camera image zoom in 2 times Camera switch Lullaby turn on/off Volume setting (6 levels) Intercom mode Night vision mode Crying detection (high, med, low) Room temperature display System time Battery Power Volume setting (6 levels) Feeding Reminder Time Setting (set 5 Alarms) -
Page 13: System Menus
SYSTEM MENUS Monitor Function Settings PAIRING Once you’ve turned on both the camera and the monitor, they will pair automatically. If not, follow these steps: 1. Turn on the monitor and press menu . Press select camera and press to confirm. 2. - Page 14 CHECKING THE CONNECTION OF BABY MONITOR When both the camera and the monitor are normally turned on, the monitor should be able to show the image from the camera (If the monitor fails to display the image correctly, please check the pairing condition). (1) If the connection fails, please re-pair according to the PAIRING function.
- Page 15 TWO-WAY TALK To enter the two-way talk back mode, press . This will allow you to talk with your little one. Once the conversation is over, release After releasing on the monitor, the camera system will enter intercom mode. LULLABIES The digital baby monitor has lullabies, including white noise, to help calm and put your baby to sleep.
- Page 16 VOX SETTINGS With VOX (Voice Activation) sensitivity, you can adjust the sound sensitivity of the camera to detect and alert you to your baby’s crying or sounds. VOX detection: When the monitor is set to LOW/MID/HIGH VOX sensitivity, it will turn off within 30 seconds if no sound is detected.
-
Page 17: Alert Settings
Alert Settings Temperature alert settings When it is too hot or too cold in your baby’s room, the temperature alert will push a notification to your monitor. 1. Press to the main menu. 2. Press temperature, and press to confirm. 3. -
Page 18: System Settings
Feeding Reminder Alarm You can set a timer to remind you to feed your baby: 1. Press to the main menu. 2. Press to feeding reminder , press to confirm. 3. Press to select the alarm time for the feeding reminder(0.5h/1h/2h/3h/4h). - Page 19 Volume Adjustment There are two methods to adjust the volume. Method 1: Short press to adjust volume. Method 2: Press to the main menu. Press to Volume , and press to confirm. Then, press to adjust volume of the camera. There are 6 levels to choose from. Button Sound Long press for 5 seconds on the monitor to turn OFF/ON the button...
-
Page 20: Troubleshooting
TROUBLESHOOTING If you have problems with the system, there is often a quick and simple solution. Please try the following: • There is no picture checking all connections to the camera. Make from the camera sure the adaptor is plugged in. •... -
Page 21: Specifications
SPECIFICATIONS GENERAL Camera Monitor Operating Frequency Range 2.4GHz Type of Spread Spectrum FHSS Used Type of Material Used Communication Range 100M (Open Space) CAMERA Image Sensor 1/4 Color CMOS Video Resolution 1280 x 720P Viewing Angle 60° Night Vision Power Consumption 1.5W Operating Temperature ~20°C ~ 65°C... -
Page 22: Two-Year Limited Warranty
BW2511 Important: Satisfactory evidence of the original purchase is required for warranty service. Please refer to our Uniden website for any details or warranty durations offered in addition to those contained below. Warrantor: The warrantor is Uniden Australia Pty Limited ABN 58 001 865 498 (“Uniden Aust”). - Page 23 Product does not conform with this warranty, you should deliver the Product, together with satisfactory evidence of your original purchase (such as a legible copy of the sales docket) to Uniden at the address shown below. You should contact Uniden regarding any compensation that may be payable for your expenses incurred in making a warranty claim.
- Page 24 © 2024 Uniden Australia Pty Limited. v1.2...
