Cypress Semiconductor CYV15G0100EQ Specification Sheet

Cypress prosumer video cable equalizer specification sheet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Features
■
Multi rate adaptive equalization
■
Operates from 143 to 1485 Mbps serial data rate
■
SMPTE 292M, SMPTE 344M, and SMPTE 259M compliant
■
Supports DVB-ASI at 270 Mbps
■
Cable length indicator for HD-SDI and SD-SDI data rates
■
Maximum cable length adjustment for HD-SDI and SD-SDI
data rates
■
Carrier detect and mute functionality for HD-SDI and SD-SDI
data rates
■
Equalizer bypass mode
■
Seamless connection with HOTLink II™ family
■
Equalizes up to 175m of Canare L-5CFB and Belden 1694A
coaxial cable at 270 Mbps
■
Equalizes up to 70m of Canare L-5CFB and Belden 1694A
coaxial cable at 1.485 Gbps
■
Low power: 160 mW at 3.3V
■
Single 3.3V supply
■
16-pin SOIC
0.18 μm CMOS technology
■

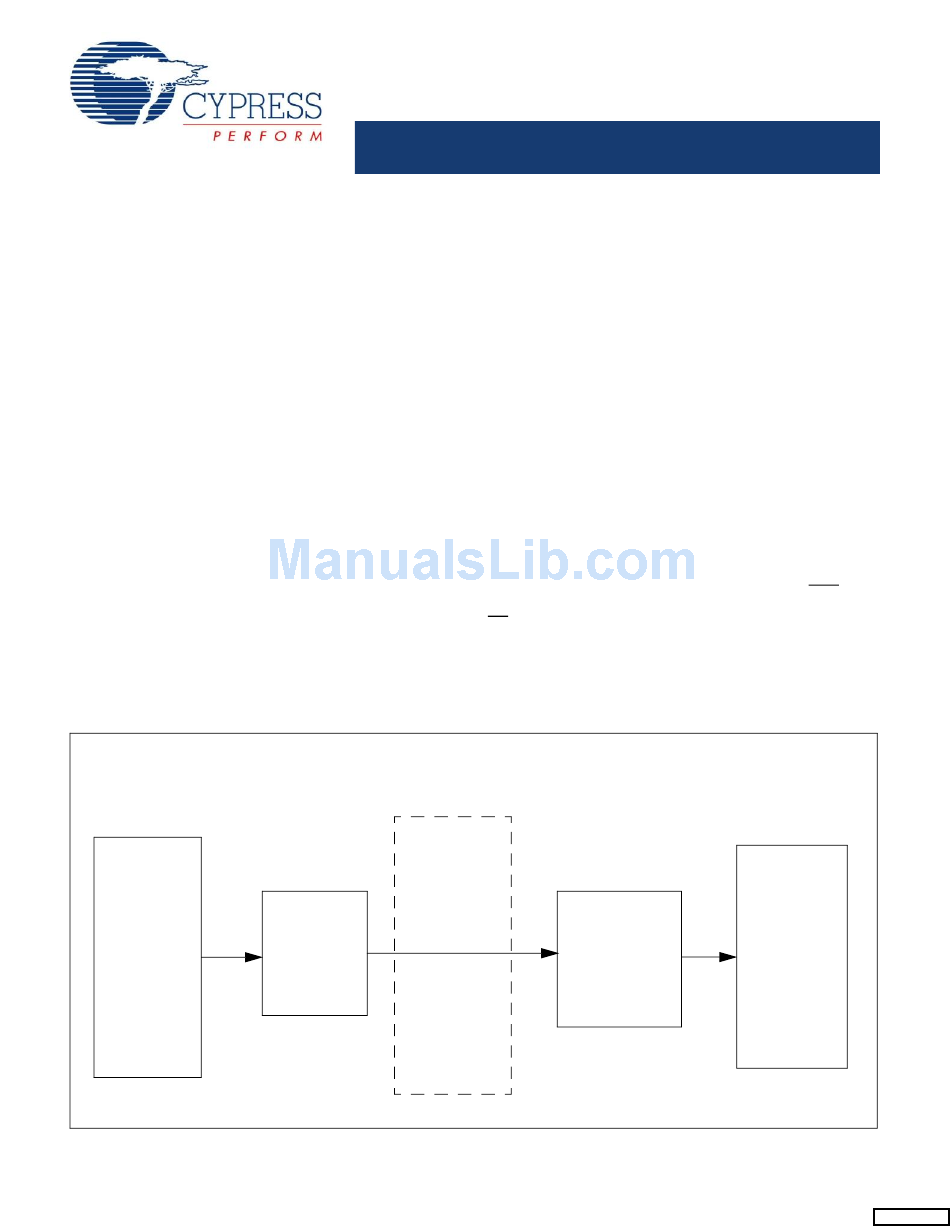

Equalizer System Connection Diagram
HOTLink II
Serializer
Cypress Semiconductor Corporation
Document Number: 001-12520 Rev. **
Prosumer Video Cable Equalizer
Serial Links
Cable
Driver
Copper Cable
Connections
•
198 Champion Court
■
Pb-free and RoHS compliant
■
Uses Cypress CLEANLink™ technology
■
Pin compatible to existing equalizer devices

Functional Description

The CYV15G0100EQ is a multi rate adaptive equalizer designed
to equalize and restore signals received over 75Ω coaxial cable.
The equalizer meets SMPTE 292M, SMPTE 344M, and SMPTE
259M data rates. The CYV15G0100EQ is optimized to equalize
up to 175m of Belden 1694A coaxial cable at 270 Mbps and up
to 70m of Belden 1694A coaxial cable at 1.485 Gbps. This device
is mainly targeted for Prosumer Video applications where the
cable length requirements are not as stringent as professional
broadcast video applications. The CYV15G0100EQ connects
seamlessly to the HOTLink II family of transceivers.
The CYV15G0100EQ has DC restoration to compensate for the
DC content of the SMPTE pathological patterns. A cable length
indicator (CLI) provides an indication of the cable length
equalized at HD-SDI and SD-SDI data rates. The maximum
cable length adjust (MCLADJ) sets the approximate maximum
cable length to equalize at SD and HD data rates. The
CYV15G0100EQ's differential serial outputs (SDO, SDO) mute
when the approximate cable length set by MCLADJ is reached.
CD/MUTE is a bidirectional pin that provides an indication of the
signal present at the equalizer inputs. It also controls muting the
outputs of the equalizer at HD and SD data rates.
Power consumption is typically 160 mW at 3.3V.
CYV15G0100EQ
Prosumer Video
Cable
Equalizer
,
•
San Jose
CA 95134-1709
CYV15G0100EQ
HOTLink II
Deserializer
•
408-943-2600
Revised October 25, 2007
[+] Feedback
[+] Feedback

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CYV15G0100EQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cypress Semiconductor CYV15G0100EQ

Summary of Contents for Cypress Semiconductor CYV15G0100EQ

  • Page 1: Functional Description

    ■ Pin compatible to existing equalizer devices Functional Description The CYV15G0100EQ is a multi rate adaptive equalizer designed to equalize and restore signals received over 75Ω coaxial cable. The equalizer meets SMPTE 292M, SMPTE 344M, and SMPTE 259M data rates. The CYV15G0100EQ is optimized to equalize up to 175m of Belden 1694A coaxial cable at 270 Mbps and up to 70m of Belden 1694A coaxial cable at 1.485 Gbps.
  • Page 2 Equalizer Block Diagram CYV15G0100EQ Prosumer Video Cable Equalizer Block Diagram CYV15G0100EQ Prosumer Video Cable Equalizer Block Diagram Cable Length Analog Adjustor and Mute MCLADJ Threshold Block DC Restore SDI, SDI Equalizer Pinouts Figure 1. Pin Diagram - 16 Pin SOIC (Top View)
  • Page 3 Table 1. Pin Descriptions - CYV15G0100EQ Single Channel Cable Equalizer Name IO Characteristics Signal Description Control Signals Analog Output CD/MUTE LVTTL IO MCLADJ Analog Input BYPASS LVTTL Input AGC± Analog SDO, SDO Differential Output SDI, SDI Differential Input Power Power Document Number: 001-12520 Rev.

  • Page 4: Equalizer Operation

    500 mV at HD data rates is received, the equalizer’s serial outputs are muted. BYPASS The CYV15G0100EQ has a bypass mode that enables the user to bypass the equalizer’s equalization and DC restoration functions. When the bypass mode is set HIGH, the signal presented at the equalizer’s differential serial inputs (SDI, SDI)

  • Page 5: Maximum Ratings

    2. Calculated results from production test. 3. Not tested. Based on characterization. Document Number: 001-12520 Rev. ** Power Up Requirements The CYV15G0100EQ contains one power supply. The voltage on any input or IO pin must not exceed the power pin during power up. Operating Range...

  • Page 6: Ac Electrical Characteristics

    800 mV transmit amplitude Equalizer pathological pattern 20% - 80%, HD data rate 20% - 80%, SD data rate [3, 4] – HD color bar pattern – – Single-ended Single-ended Single-ended CYV15G0100EQ Unit – 1485 Mbps 1200 1200 – – – 0.25 –...

  • Page 7: Typical Performance Graphs

    Figure 3. CLI Output Voltage Vs Belden 1694A Cable Length at SD-SDI and HD-SDI Data Rates 2.65 2.55 2.45 2.35 Document Number: 001-12520 Rev. ** = 25°C) CABLE LENGTH (m) CABLE LENGTH (m) CYV15G0100EQ Page 7 of 10 [+] Feedback [+] Feedback...

  • Page 8: Typical Application Circuit

    Typical Application Circuit Figure 4. Interfacing CYV15G0100EQ to the HOTLink II SerDes RXLE SDASEL RXD7 RXD6 LPEN RXD5 INSEL RXD4 IN1+ RXD3 RXD2 RXD1 IN1− RXD0 FRAMCHAR RXOP RXST2 RFEN RXST1 RFMODE DECMODE RXST0 RXCLK+ RXCKSEL RXCLK− RXMODE RXRATE RXCLKC+ CYV15G0101DXB Document Number: 001-12520 Rev.

  • Page 9: Ordering Information

    Ordering Information Ordering Code CYV15G0100EQ-SXC Package Dimension Document Number: 001-12520 Rev. ** Package Name Package Type SZ16.15 Pb-free 16-Pin 150 Mil SOIC Figure 5. 16-Pin (150 Mil) SOIC S16.15 CYV15G0100EQ Operating Range 0 to 70°C 51-85068-*B Page 9 of 10...
  • Page 10 Document History Page Document Title: CYV15G0100EQ Prosumer Video Cable Equalizer Document Number: 001-12520 ISSUE REV. ECN NO. DATE 1396423 SEE ECN © Cypress Semiconductor Corporation, 2007. The information contained herein is subject to change without notice. Cypress Semiconductor Corporation assumes no responsibility for the use of any circuitry other than circuitry embodied in a Cypress product.
