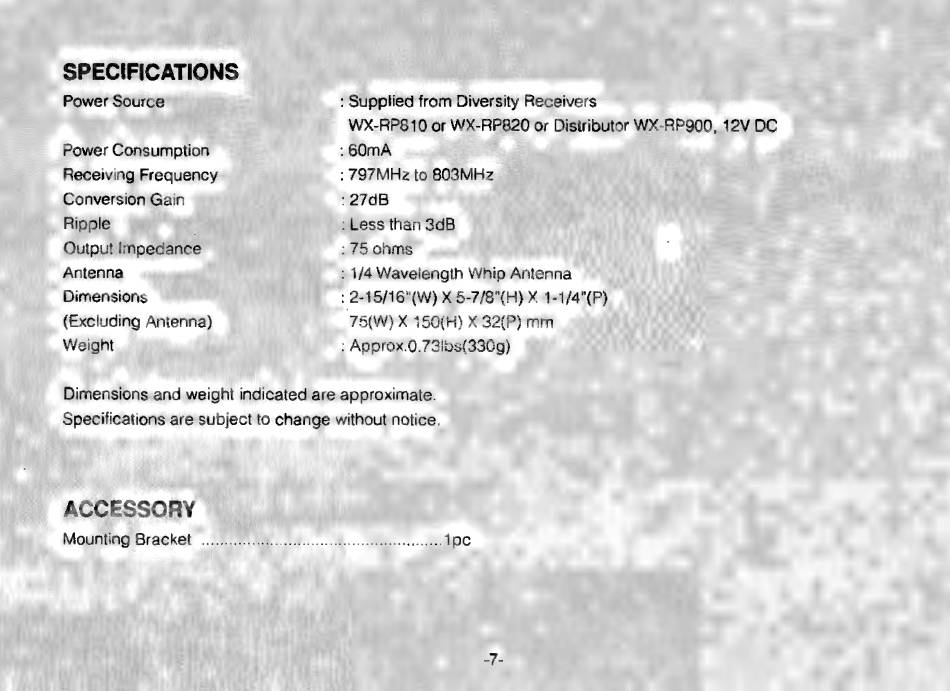

SPECIFICATIONS
Power Source
Power Consumption
Receiving Frequency
Conversion Gain
Ripple |
Output Impedance
Antenna
Dimensions
(Excluding Antenna)
Weight
: Supptied from Diversity Receivers
WX-RP8 10 or WX-RP820 or Distributor WX-RP900, 12V DC
: 6O0mA
: 797MHz to 803MHzZ
: 27dB
: Less than 3dB
: 75 ohms
: 1/4 Wavelength Whip Antenna
: 2-15/16"(W) X 5-7/8°(H) X 1-1/4°(P)
75(W) X 150(H) X 32(P) mm
: Approx.0.73lbs(330g)
Dimensions and weight indicated are approximate.
Specifications are subject to change without notice.
ACCESSORY
Mounting Bracket oos.
-7-
