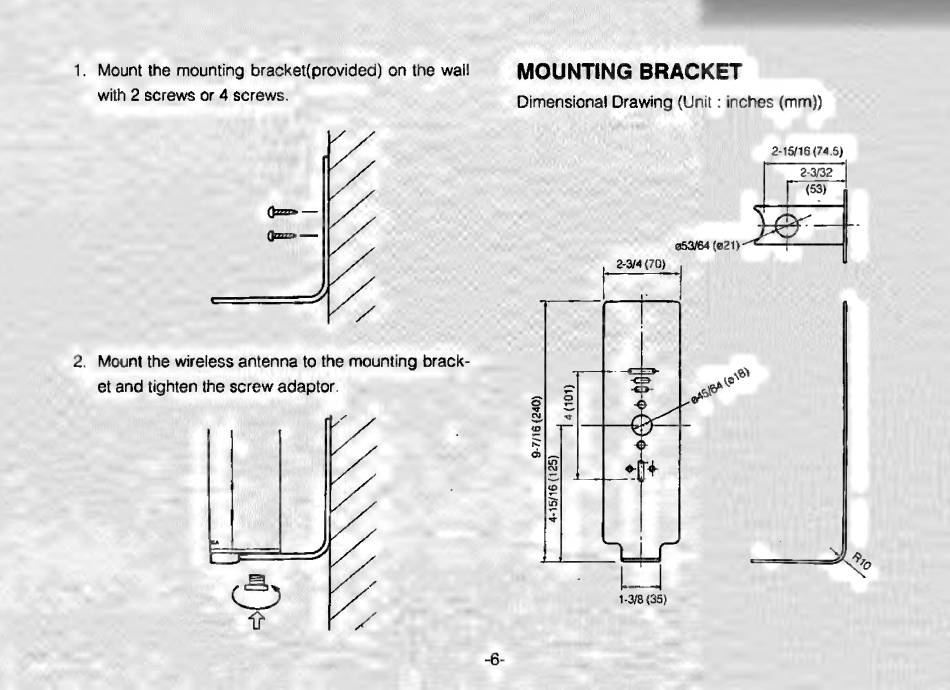

1. Mount the mounting bracket(provided) on the wall
with 2 screws or 4 screws.
2. Mount the wireless antenna to the mounting brack-
et and tighten the screw adaptor.
MOUNTING BRACKET
Dimensional Drawing (Unit : inches (mm))
9-7/16
(240)
2-15/16 (74.5)
053/64 (021)
2-3/4 (70}
|
T
N
—
~
20
x
Ww
Lu
t
wv
1-3/8 (35)
