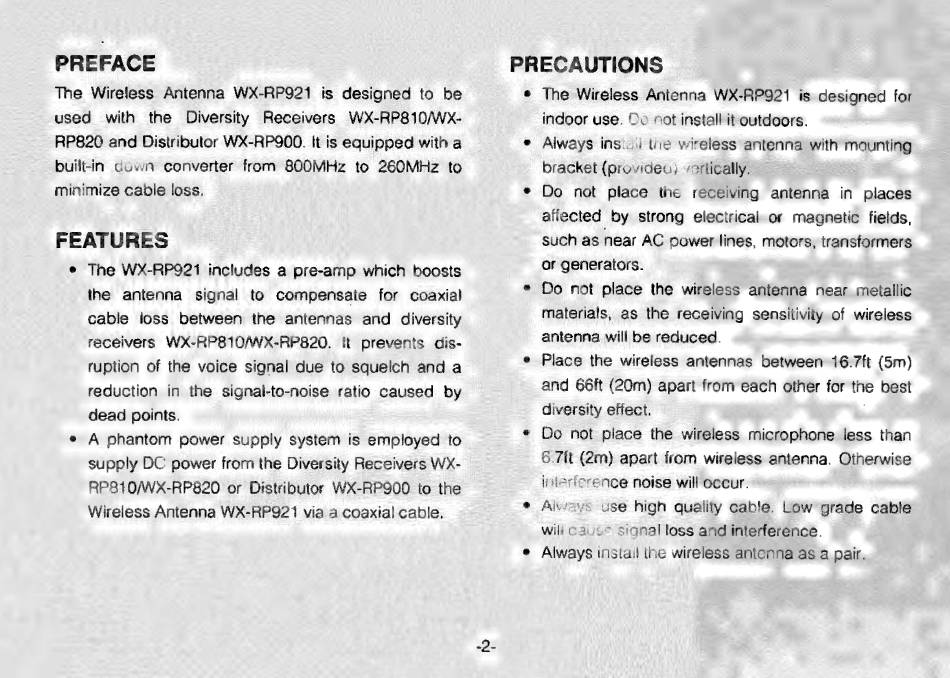

PREFACE
The Wireless Antenna WX-RP921 is designed to be
used with the Diversity Receivers WX-RP810/WX-
RP820 and Distributor WX-RP900. It is equipped with a
built-in down converter from 800MHz to 260MHz to
minimize cable loss.
FEATURES
e The WX-RP921 includes a pre-amp which boosts
the antenna signal to compensate for coaxial
cable loss between the antennas and diversity
receivers WX-RP810/WX-RP820. It prevents dis-
ruption of the voice signal due to squelch and a
reduction in the signal-to-noise ratio caused by
dead points.
+ A phantom power supply system is employed to
supply DC power from the Diversity Receivers WX-
RP810/WX-RP820 or Distributor WX-RP900 to the
Wireless Antenna WX-RP921 via a coaxial cable.
-2-
PRECAUTIONS
The Wireless Antenna WX-RP921 is designed for
indoor use. Do not install it outdoors.
Always install the wireless antenna with mounting
bracket (provided) vertically.
Do not place the receiving antenna in places
affected by strong electrical or magnetic fields,
such as near AC power lines, motors, transformers
Or generators.
Do not place the wireless antenna near metallic
materials, as the receiving sensitivity of wireless
antenna will be reduced.
Place the wireless antennas between 16.7ft (5m)
and 66ft (20m) apart from each other for the best
diversity effect. |
Do not place the wireless microphone less than
6.7ft (2m) apart from wireless antenna. Otherwise
interference noise will occur.
Always use high quality cable. Low grade cable
will cause signal loss and interference.
Always install the wireless antenna as a pair.
